GMB15404075145

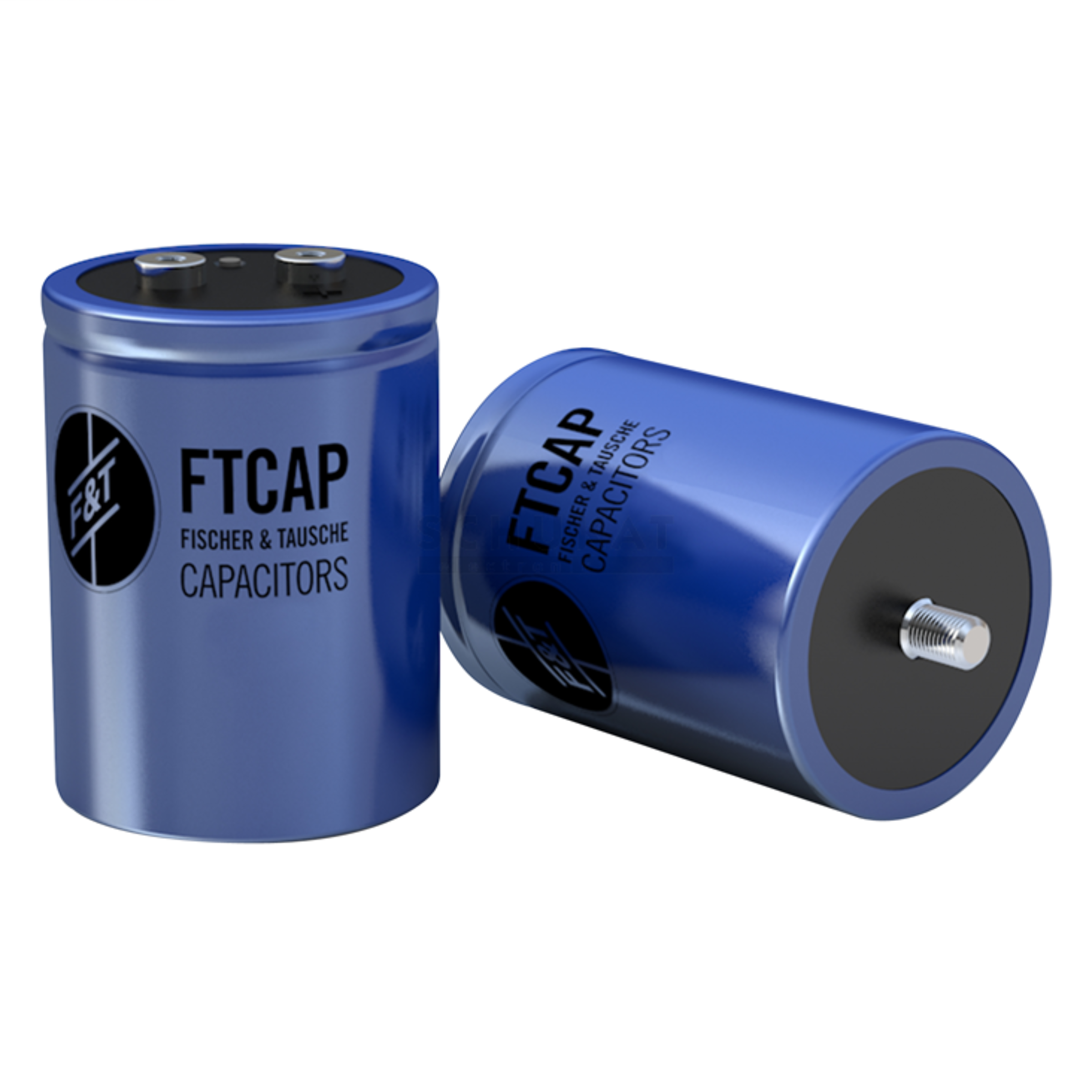

FTCAP Aluminum electrolytic capacitor Screw connection and bolt fastening radial 150000µF 40V 20% RM31,7mm -40°C - 85°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
27 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 16 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 150.000 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 40 V
- Assembly Type
- Screw connection and bolt fastening
- Housing
- radial
- Pitch
- 31.7 mm
- RoHS-Conform
Specifications
Open all

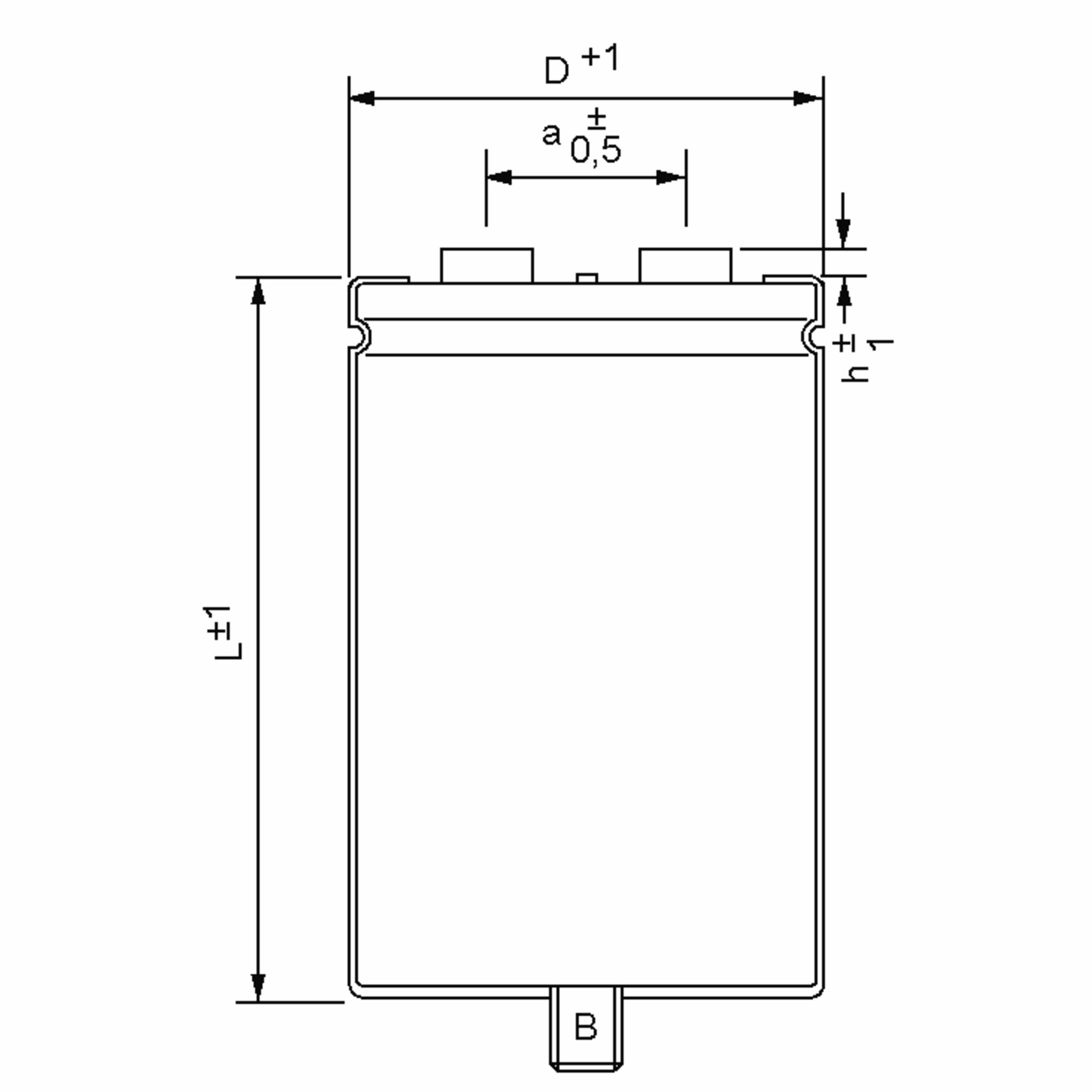

Dimensions and weights
- Diameter
- 75 mm
- Dimension: Height
- 145 mm
- Fixing bolt thread
- M12x16
- Pitch
- 31.7 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Climate category IEC
- 40/85/56
Technical features
- Capacity
- 150.000 µF
- Capacity
- 150,000
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,47
- Equivalent series resistance (ESR)
- 8 mOhm
- Rated voltage DC
- 40 V
- Service life
- 8.000 h
Safety/Certifications
- Standards
- IEC 60384-4
