GMA33240075100

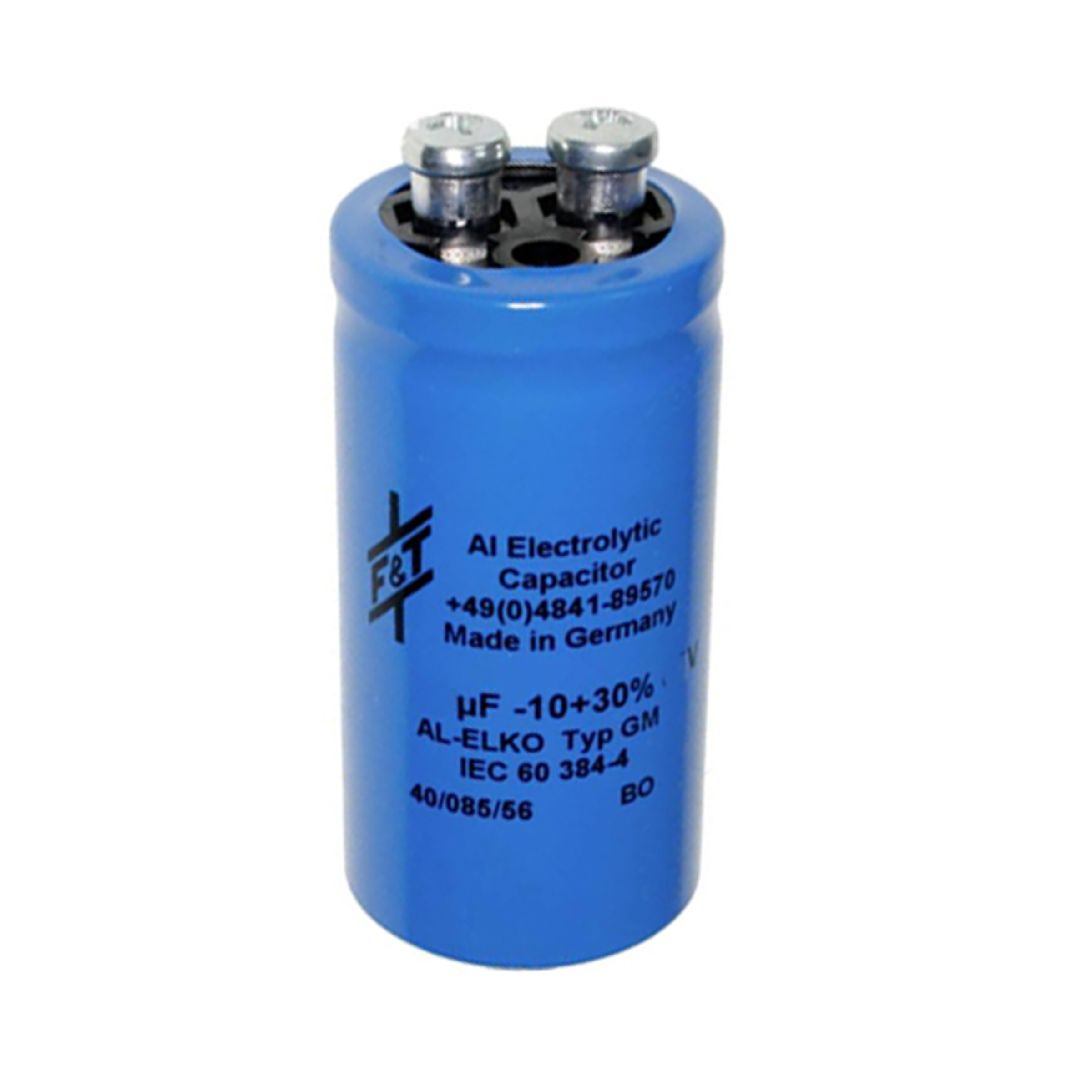

FTCAP Aluminum electrolytic capacitor GM Screw connection and clamp mounting radial 400V 3300µF -40°C...85°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 3.300 µF
- Capacity Tolerance
- ±20%
- Rated voltage DC
- 400 V
- Assembly Type
- Screw connection and clamp mounting
- Housing
- radial
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all

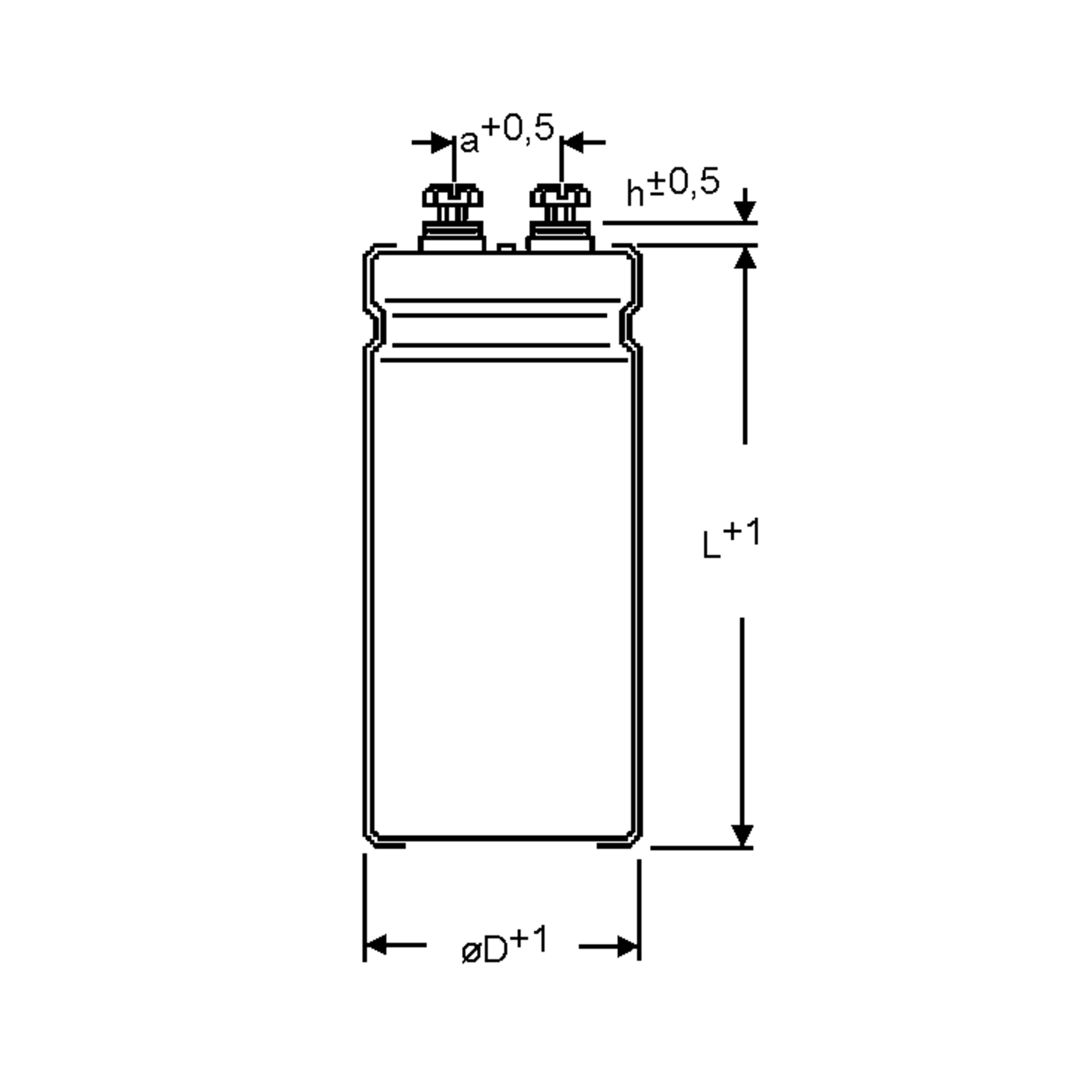

Dimensions and Weights
- Diameter
- 75 mm
- Dimension: Height
- 100 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Climate category IEC
- 40/85/56
Technical Features
- Capacity
- 3.300 µF
- Capacity
- 3,000
- Capacity unit
- µF
- Capacity Tolerance
- ±20%
- Rated voltage DC
- 400 V
- Service life
- 8.000 h
Safety/Certifications
- Standards
- IEC 60384-4
