ATBI10110018039

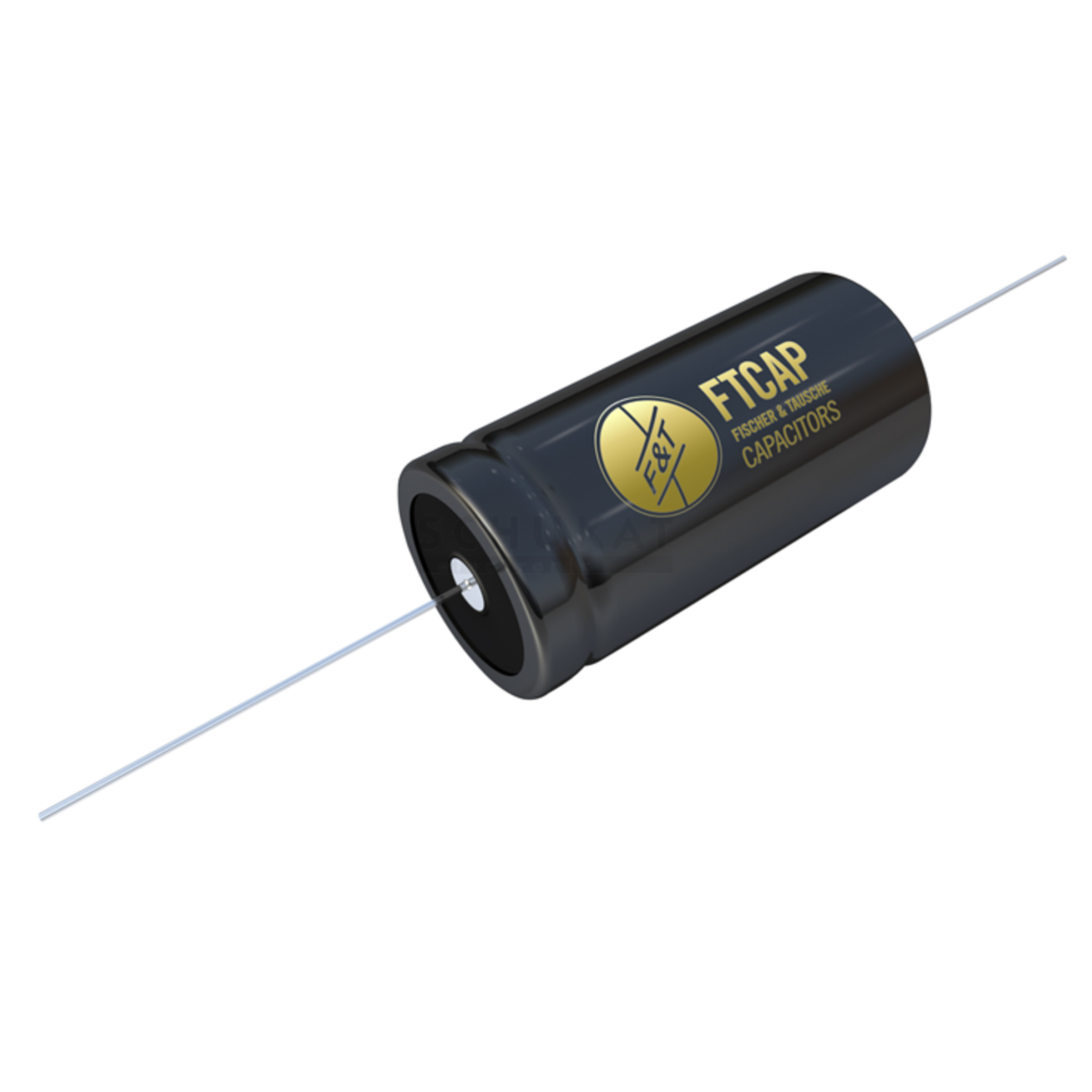

FTCAP Aluminum electrolytic capacitor ATBI THT axial 100V 100µF -40°C...85°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
617 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
LTB 31.07.2026
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 100 µF
- Capacity Tolerance
- ±20%
- Rated voltage DC
- 100 V
- Assembly Type
- THT
- Housing
- axial
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all

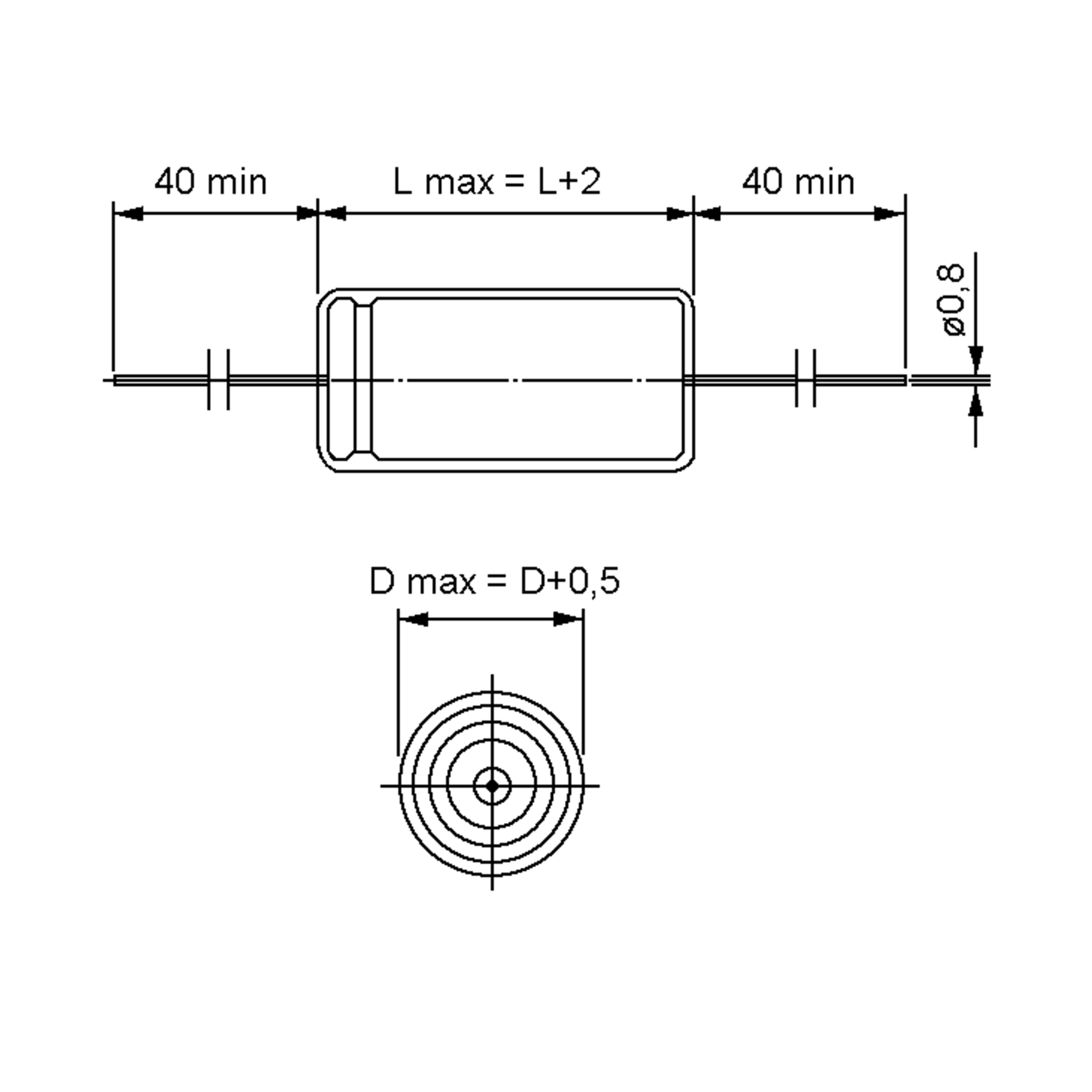

Dimensions and Weights
- Diameter
- 18 mm
- Dimension: Length
- 39 mm
- Wire diameter
- 0.8 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Climate category IEC
- 40/85/56
Technical Features
- Capacity
- 100 µF
- Capacity
- 100
- Capacity unit
- µF
- Capacity Tolerance
- ±20%
- Loss factor tan δ
- 0,05
- Rated voltage DC
- 100 V
- Rated voltage AC
- 35 V
- Service life
- 5.000 h
Safety/Certifications
- Standards
- DIN 31332, DIN 45910/T125, DIN 41237/T2
