AH47045016039

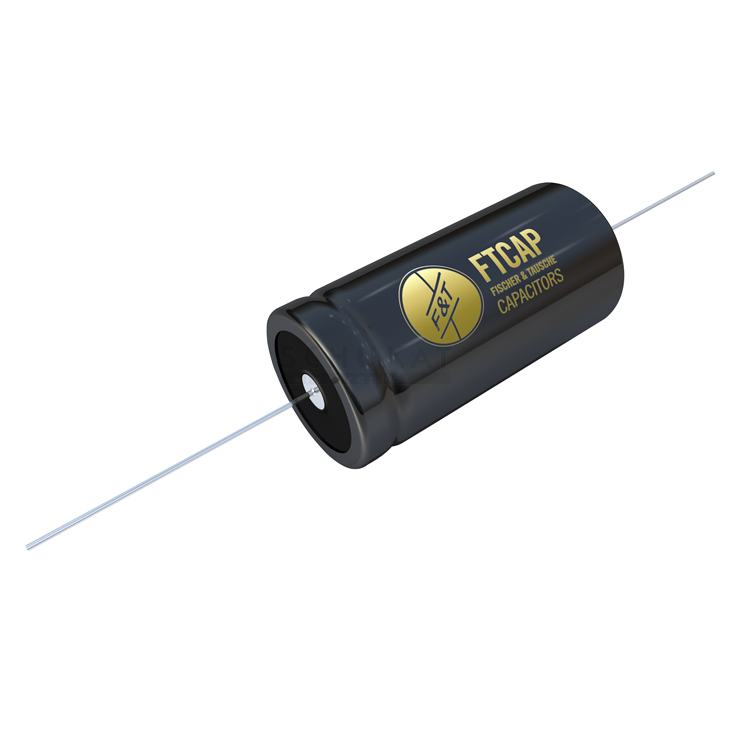

FTCAP Aluminum electrolytic capacitor AH THT axial 450V 47µF -40°C...105°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 47 µF
- Capacity Tolerance
- ±20%
- Rated voltage DC
- 450 V
- Assembly Type
- THT
- Housing
- axial
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Diameter
- 16 mm
- Dimension: Length
- 39 mm
- Wire diameter
- 0.8 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
- Climate category IEC
- 40/105/56
Technical Features
- Capacity
- 47 µF
- Capacity
- 47
- Capacity unit
- µF
- Capacity Tolerance
- ±20%
- Loss factor tan δ
- 0,08
- Ripple Current
- 0,3 A
- Equivalent series resistance (ESR)
- 2,372 Ohm
- Rated voltage DC
- 450 V
- Service life
- 3.000 h
Safety/Certifications
- Standards
- IEC 60384-4
