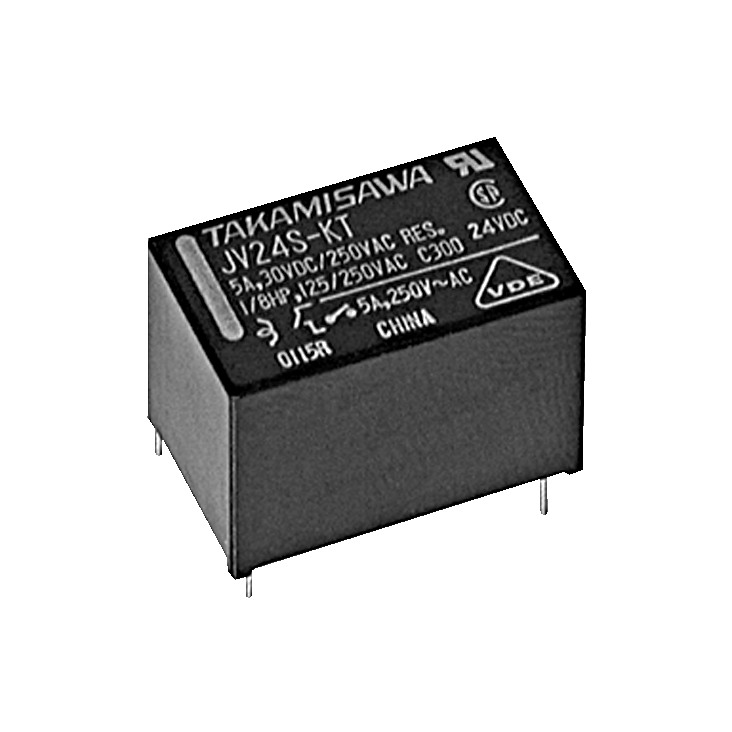

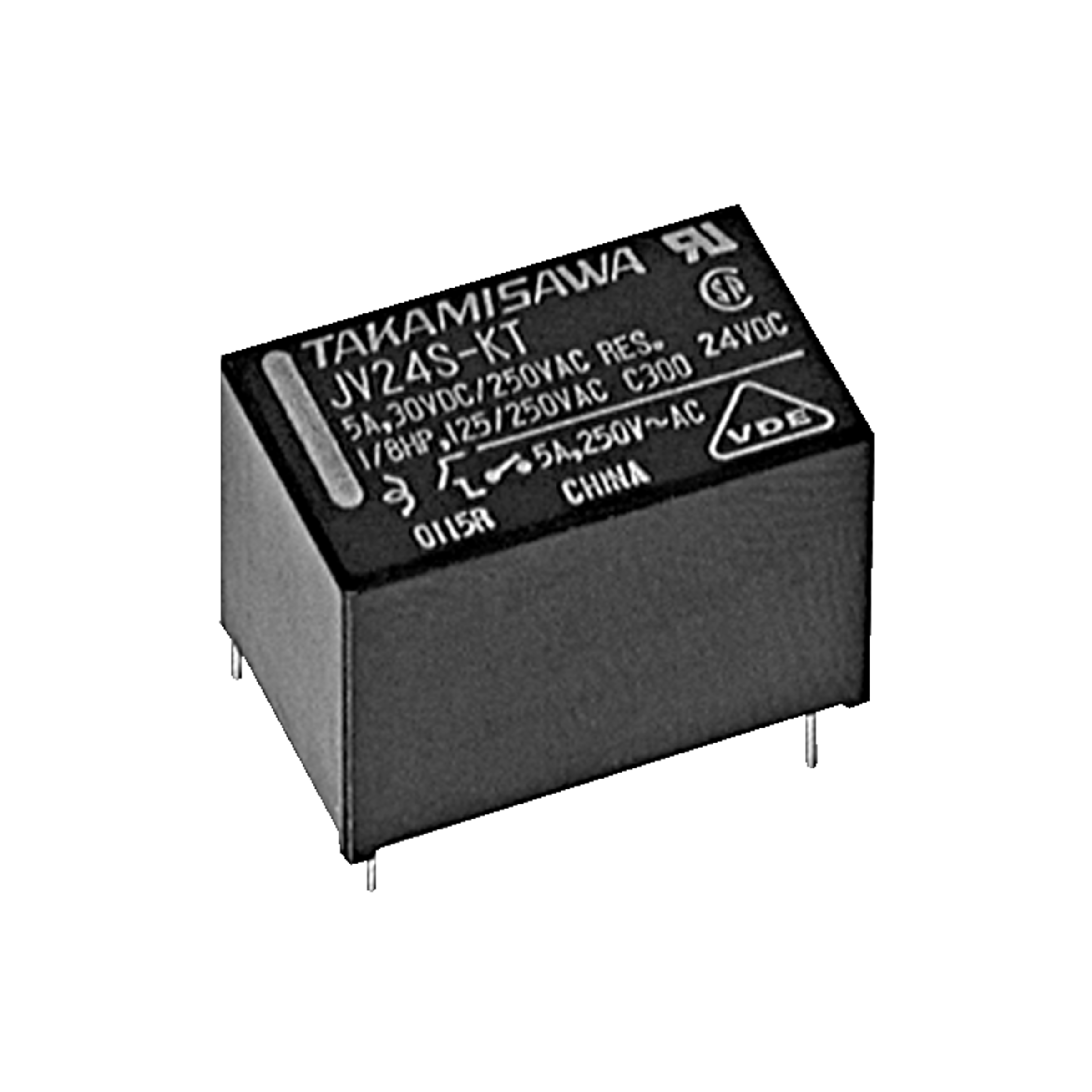

JV-24S-KT
FCL Components PC relay JV THT SPST-NO 5A 24VDC 2.880Ohm 17,5mmx10mmx12,5mm RTIII
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
400 Pcs. in stock
Planned delivery time
Ø 28 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
LTB 30.09.2026
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- JV

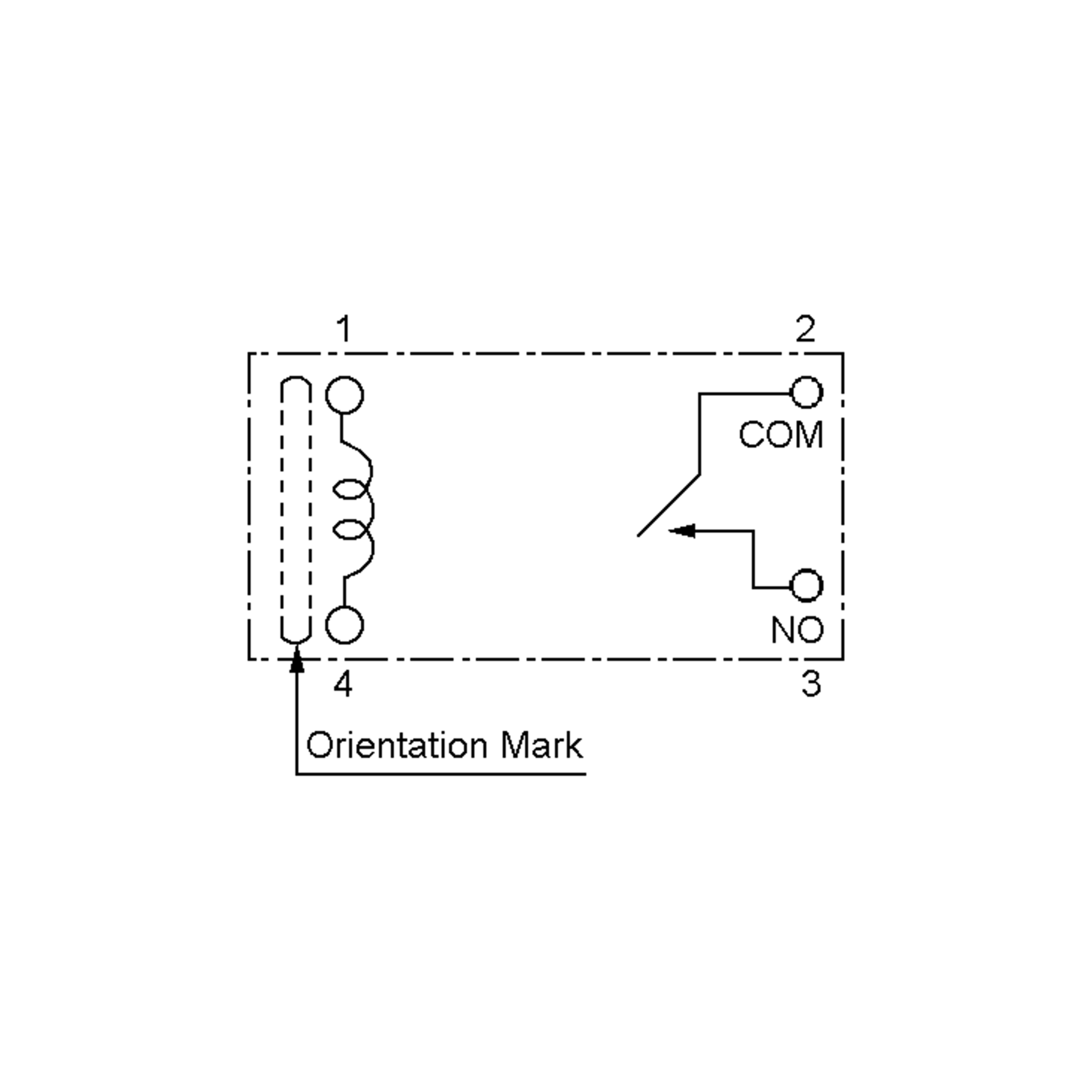

- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 5 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 2,880 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

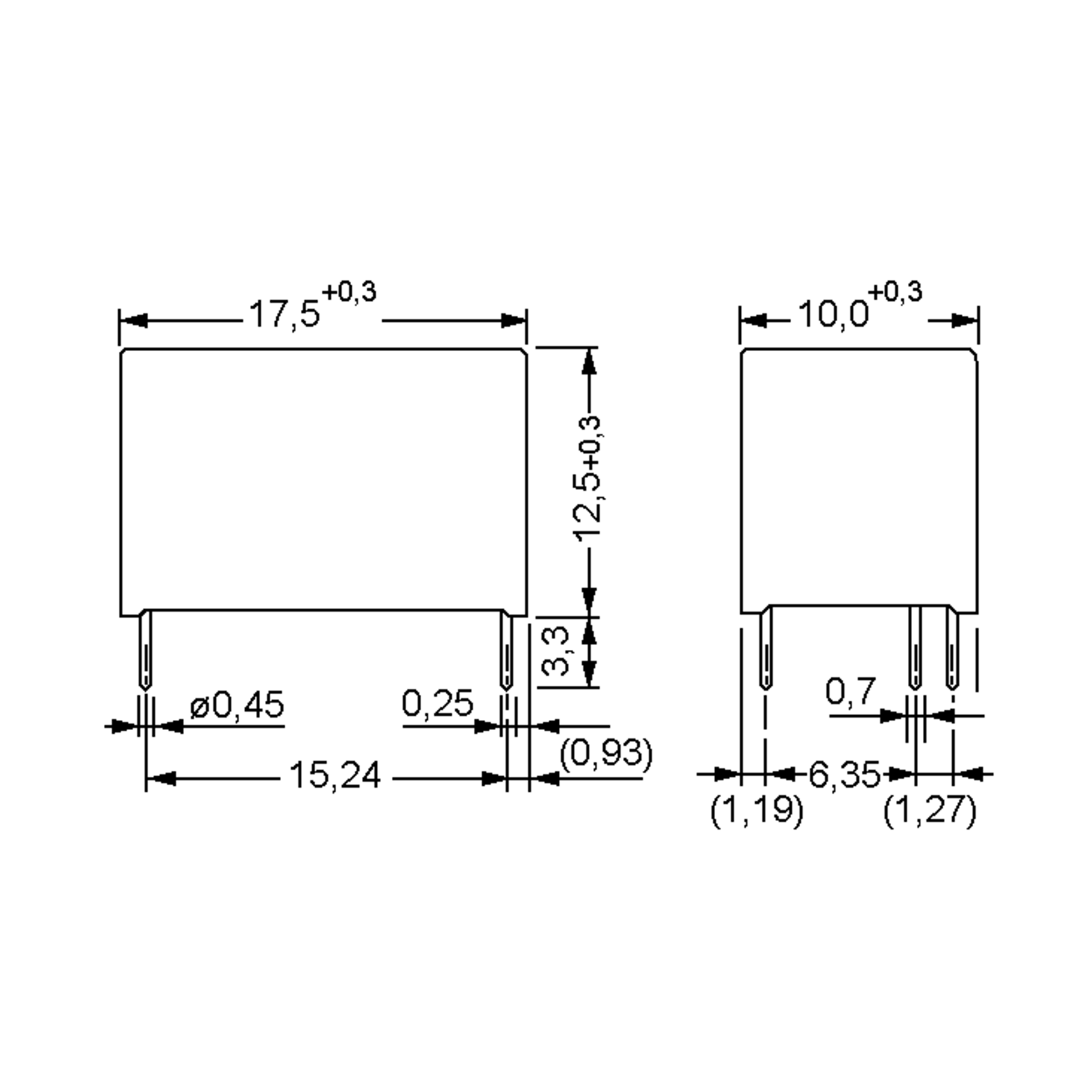

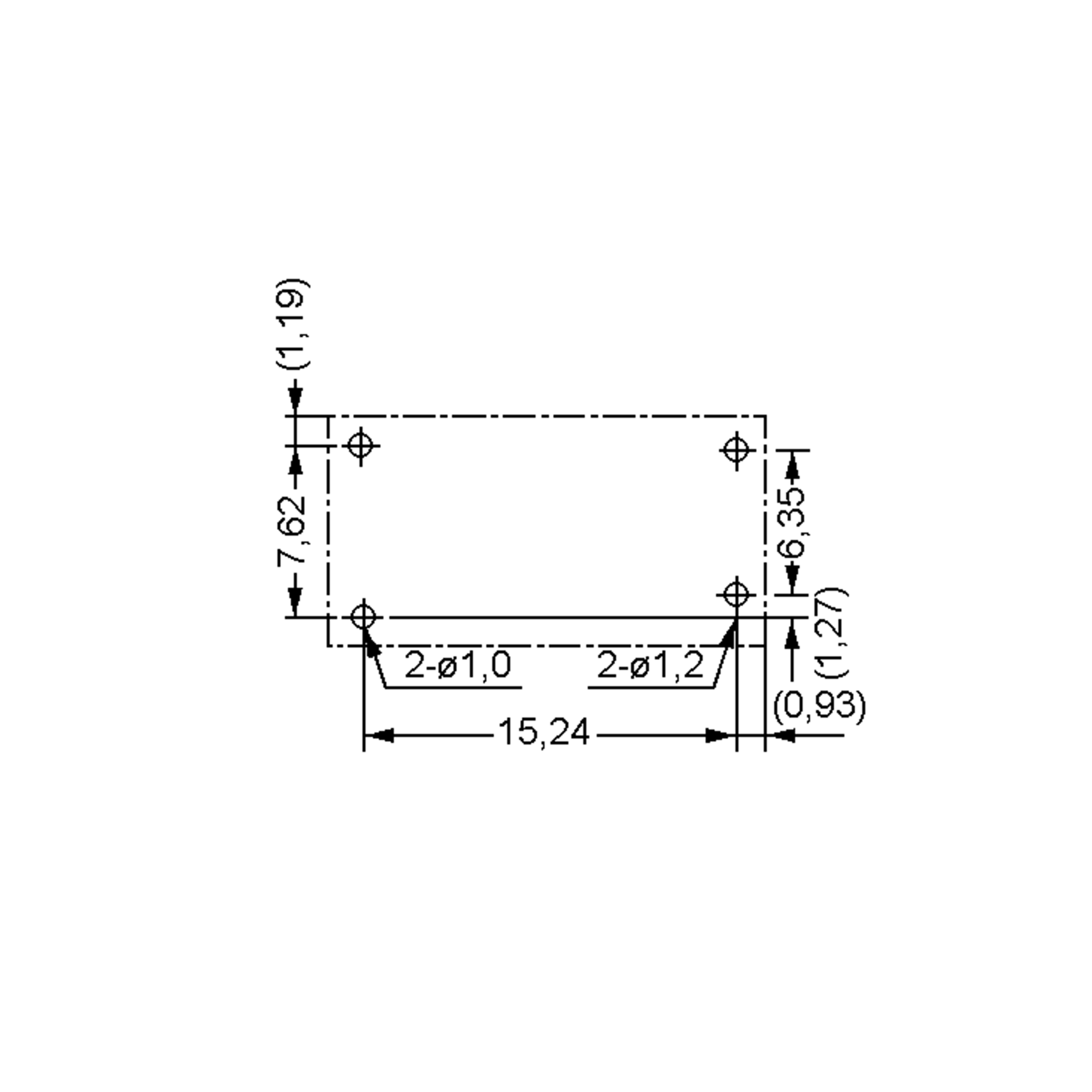

Dimensions and Weights
- Dimension: Length
- 17.5 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 12.5 mm
- Weight
- 4.3 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 5 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Switching Voltage, max. DC
- 150 V DC
- Contact: Carry Current
- 5 A
- Contact: Switching Capacity (VA)
- 1,250 VA
- Contact: Switching Load (W)
- 150 W
- Contact resistance
- 70 mOhm
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 2,880 Ohm
- Inductor power
- 200 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Pick-up voltage
- 18 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage open contacts
- 750 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 8 ms
- Drop-out time
- 4 ms
- Mechanical service life
- 20 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 0,825 mm SA
- Impact resistance, functional
- 100 m/s²
- Soldering temperature, max.
- 255°C / 5s
Safety/Certifications
- Approvals
- CQC
- UL
- VDE
- cCSA
- Protection class RT
- RTIII
