FTR-P3CN012W1

FCL Components Automotive relay FTR-P3 SPDT 25A 12VDC 240Ohm 17,4mmx7,2mmx13,5mm

FTR-P3CN012W1FTR-P3CN012W1
Manufacturer Part No.
FTR-P3CN012W1
Schukat Part No.
FTR-P3CN012W1
Manufacturer
FCL Components
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 29/2026
480 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 480 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
FTR-P3
contacts
SPDT
Contact: Switching Current (min/typ/max)
25 A
Coil: Nominal Voltage DC
12 V DC
Coil resistance
240 Ohm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • FCL Components
Type
  • Automotive relay
Series
  • FTR-P3
Product group
  • E6519
contacts
  • SPDT
Contact material
  • AgSnO2/In
Assembly Type
  • THT
Termination Style
  • Solder connection
Application

  • • Power windows
    • Power seat
    • Tilt steering
    • Sunroof
    • Windshield wipers
    • Retractable antenna, etc.

Features

  • • Compact (only 5g weight) single-pole power relay for automotive applications
    • 25A (for 12V car battery)
    • High contact capacity
    • Contact gap 0.25mm

Notice

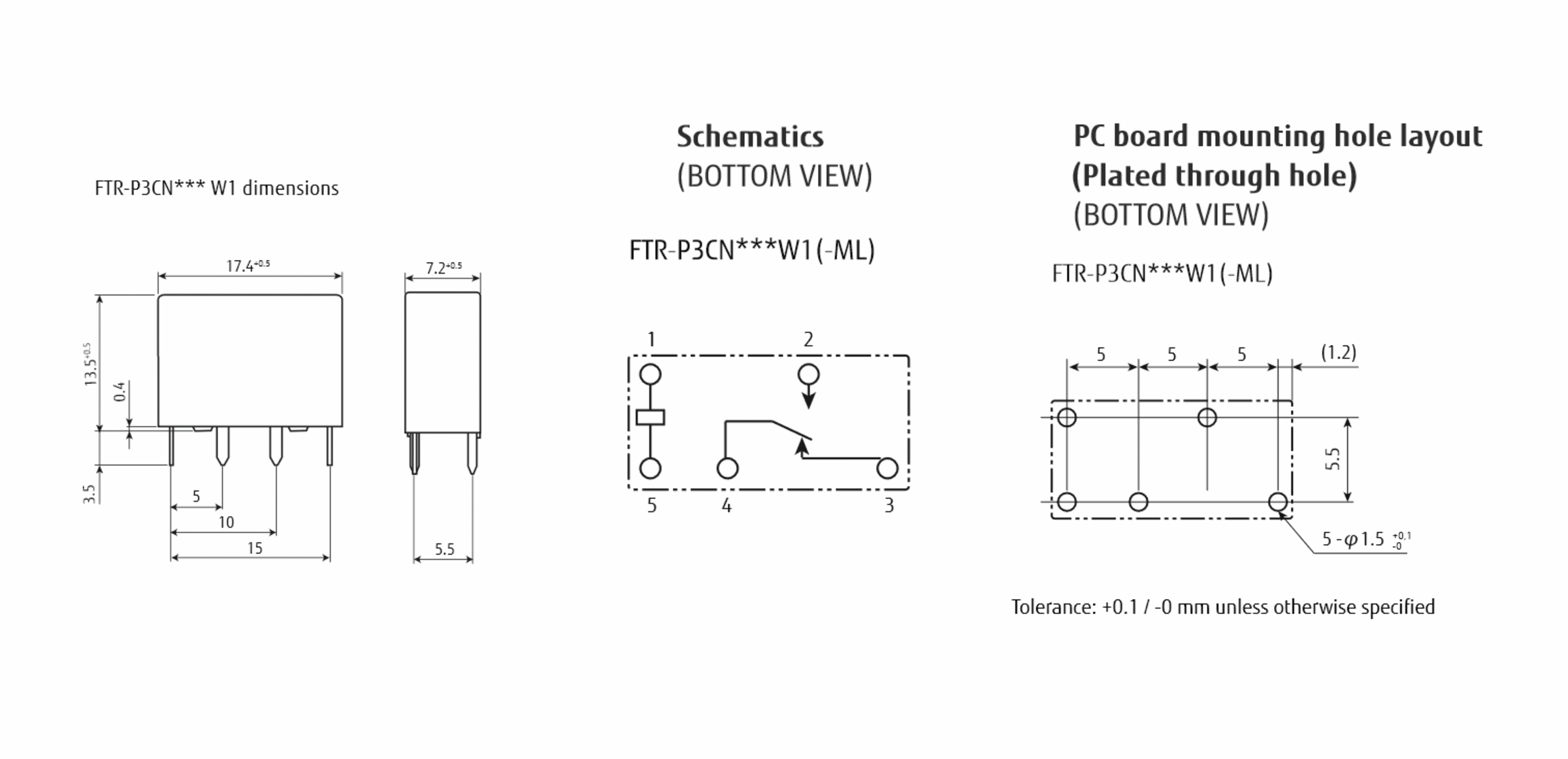

Dimensions and Weights

Dimension: Length
  • 17.4 mm
Dimension: Width
  • 7.2 mm
Dimension: Height
  • 13.5 mm
Weight
  • 5 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 25 A
Contact: Switching Voltage, max. DC
  • 16 V DC
Contact: Inrush current
  • 35 A
Contact: Carry Current
  • 25 A
Contact: Switching Load (W)
  • 350 W
Coil design
  • monostable
Coil resistance
  • 240 Ohm
Inductor power
  • 600 mW
Coil: Nominal Voltage DC
  • 12 V DC
Coil: Pick-up voltage
  • 7.3 V
Coil: Drop-out Voltage
  • 1 V
Test voltage coil/contact
  • 500 V AC
Response time
  • 10 ms
Drop-out time
  • 5 ms
Insulation resistance
  • 100 MOhm
Vibration resistance
  • 4,4 g
Impact resistance, functional
  • 100 m/s²
