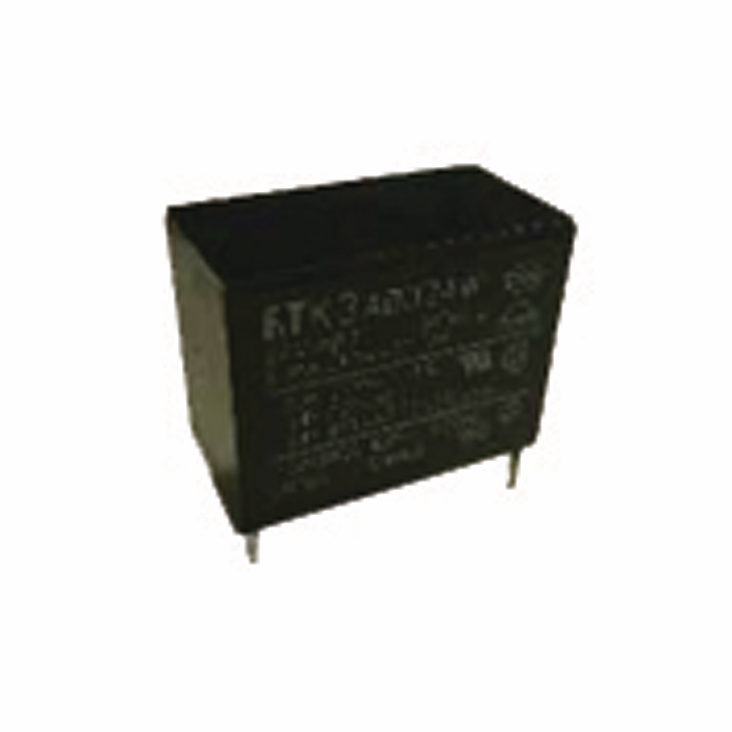

FTR-K3AB024W-PS
FCL Components Power relay FTR-K3-PS THT SPST-NO 32A 24VDC 410Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Next Stock Receipt
Week 02/2025
400 Pcs.
400 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- FTR-K3-PS
- Rated voltage DC
- 24 V DC
- Switching current
- 32 A
- contacts
- SPST-NO
- Coil resistance
- 410 Ohm
- Dimension: Length
- 30.1 mm
- Dimension: Width
- 15.7 mm
- Dimension: Height
- 23.3 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 30.1 mm
- Dimension: Width
- 15.7 mm
- Dimension: Height
- 23.3 mm
- Weight
- 26 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 60 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- Switching voltage, max. AC
- 250 V AC
- Response voltage
- 16.8 V
- Drop-out voltage
- 2.4 V
- Test voltage open contacts
- 2,500 V AC
- Test voltage coil/contact
- 4,000 V AC
- Creepage distance
- 8 mm
- Switching current
- 32 A
- Rated power
- 1,400 mW
- Switching capacity (VA)
- 8,000 VA
- Coil resistance
- 410 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 20 ms
- Drop-out time
- 10 ms
- Vibration resistance
- 0,75 mm SA
- Impact resistance, functional
- 200 m/s²
Safety/Certifications
- Approvals
- CQC
- UL
- VDE
- cCSA
- Standards
- IEC/EN 60335-1, VDE 0216
- Protection class RT
- RTII
