FTR-K1CK005W

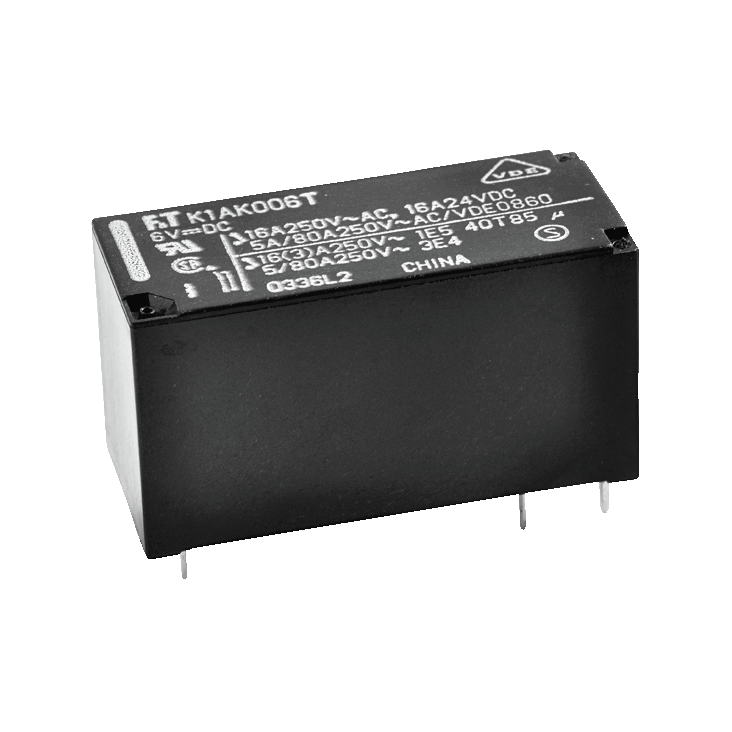

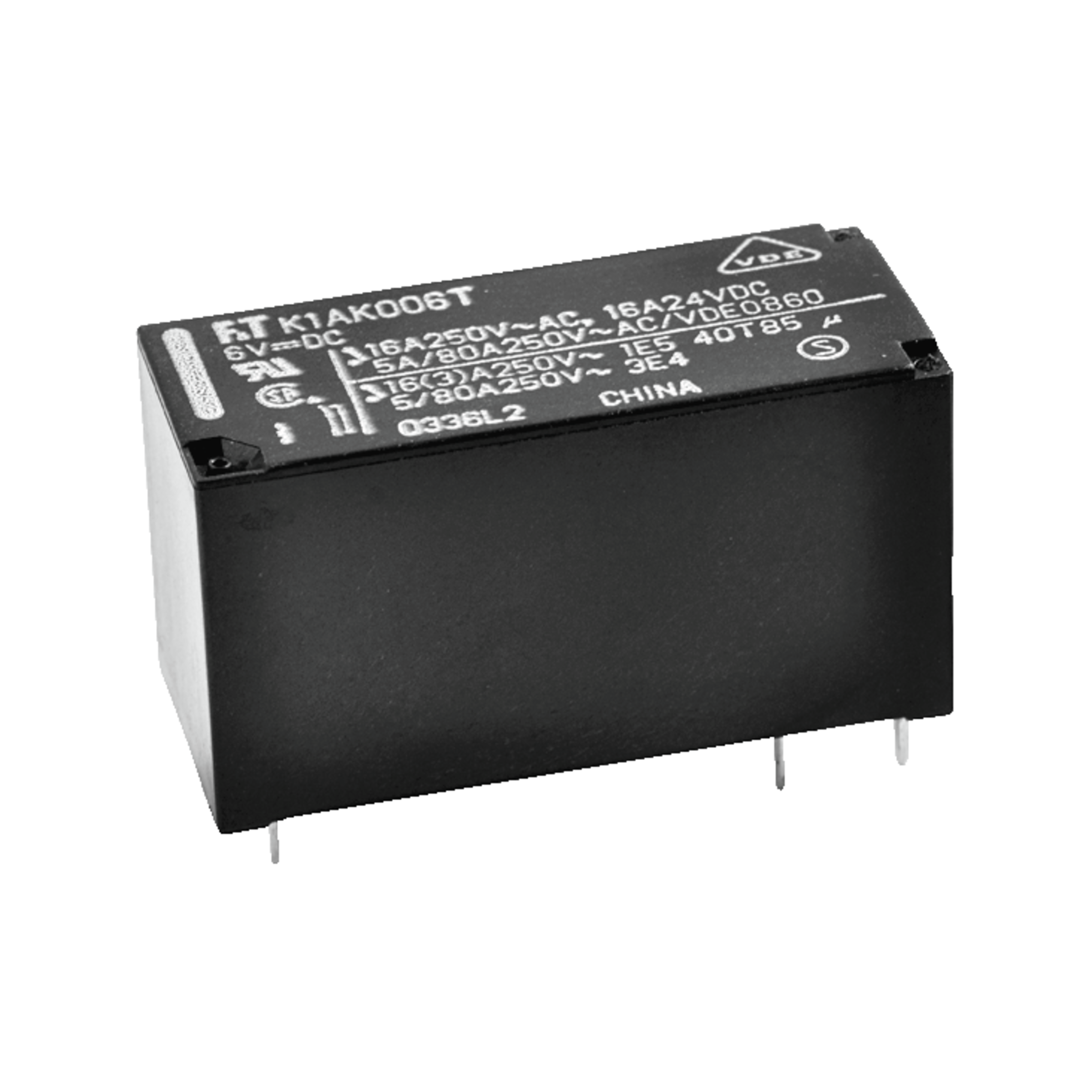

FCL Components Power relay FTR-K1 THT SPDT 16A 5VDC 62Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
590 Pcs. in stock
Next Stock Receipt
Week 12/2025
250 Pcs.
250 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- FTR-K1
- Rated voltage DC
- 5 V DC
- Switching current
- 16 A
- contacts
- SPDT
- Coil resistance
- 62 Ohm
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- RoHS-Conform
Specifications
Open all

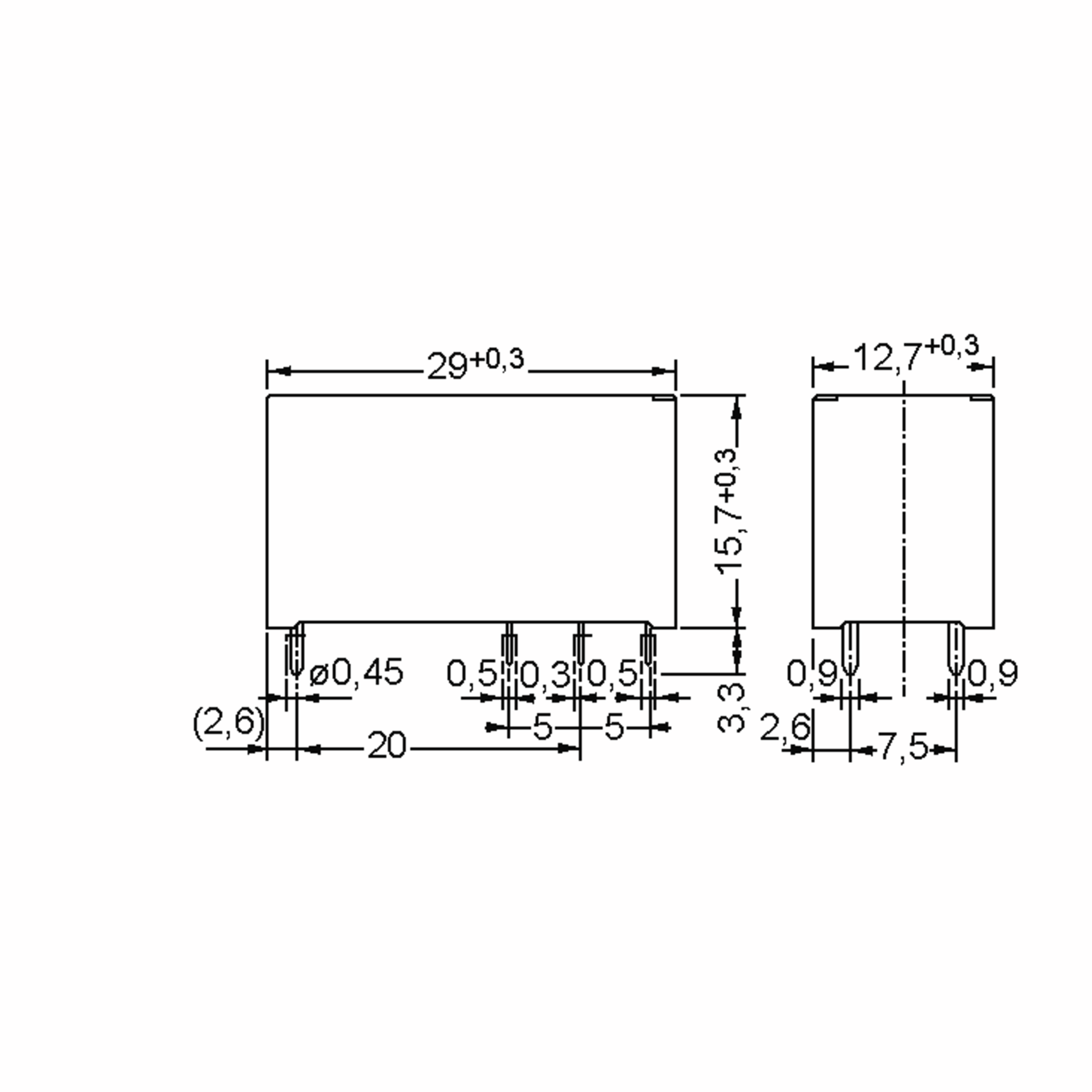

Dimensions and weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 13 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 5 V DC
- Coil design
- Switching voltage, max. AC
- 440 V AC
- Switching voltage, max. DC
- 300 V DC
- Response voltage
- 3.5 V
- Drop-out voltage
- 0.5 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Creepage distance
- 10 mm
- Switching current
- 16 A
- Transport Current
- 20 A
- Rated power
- 400 mW
- Switching capacity (VA)
- 4,000 VA
- Switching capacity (W)
- 384 W
- Coil resistance
- 62 Ohm
- Insulation resistance
- 1.000 MOhm
- Response time
- 15 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 0,7 mm DA
- Impact resistance, functional
- 100 m/s²
Safety/Certifications
- Approvals
- SEMKO
- UL
- VDE
- cCSA
- Protection class RT
- RTII
