FTR-K1AK024W-EC

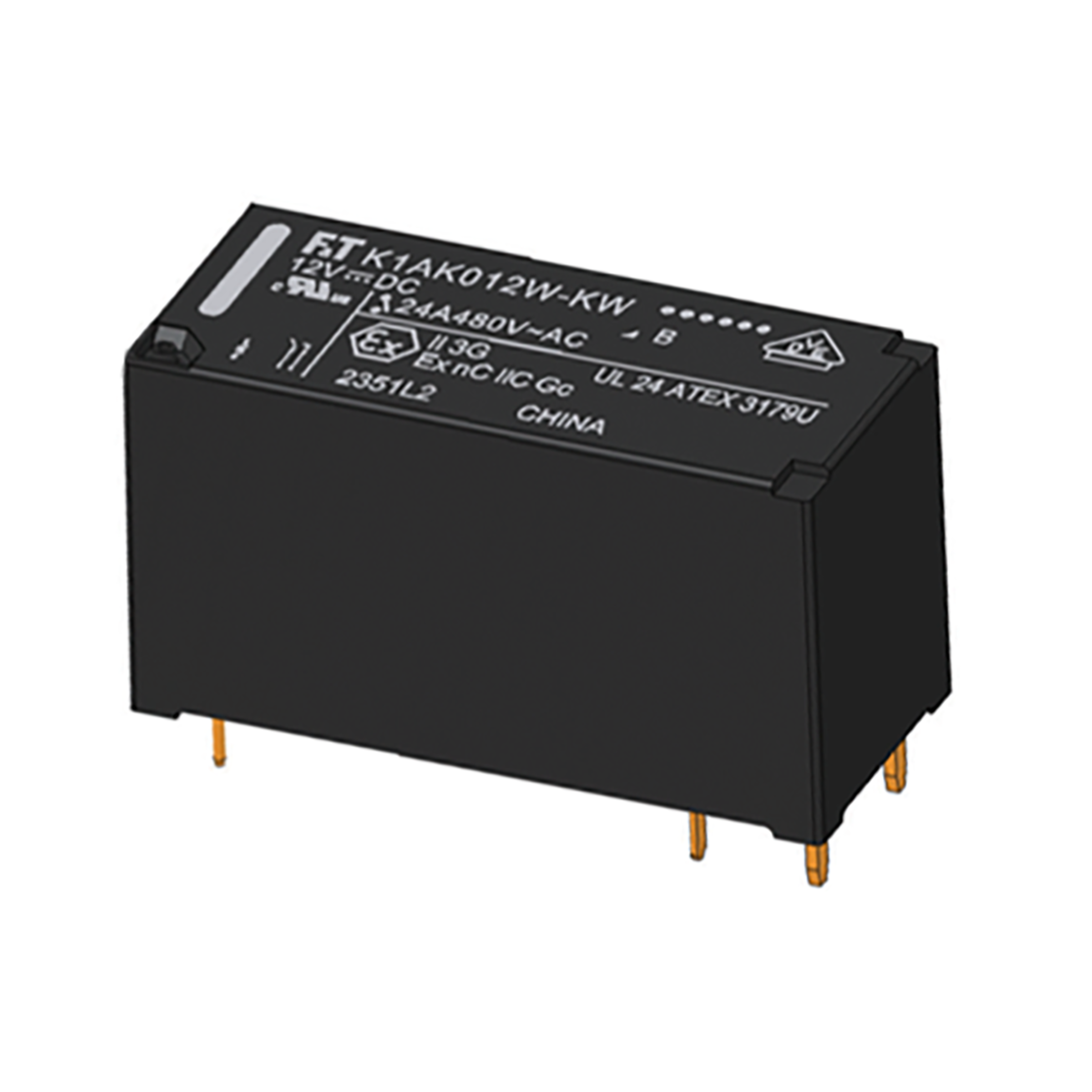

FCL Components PC relay FTR-K1 (ATEX) THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 250 or multiple of 250)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable sockets and accessories. - Series
- FTR-K1 (ATEX)

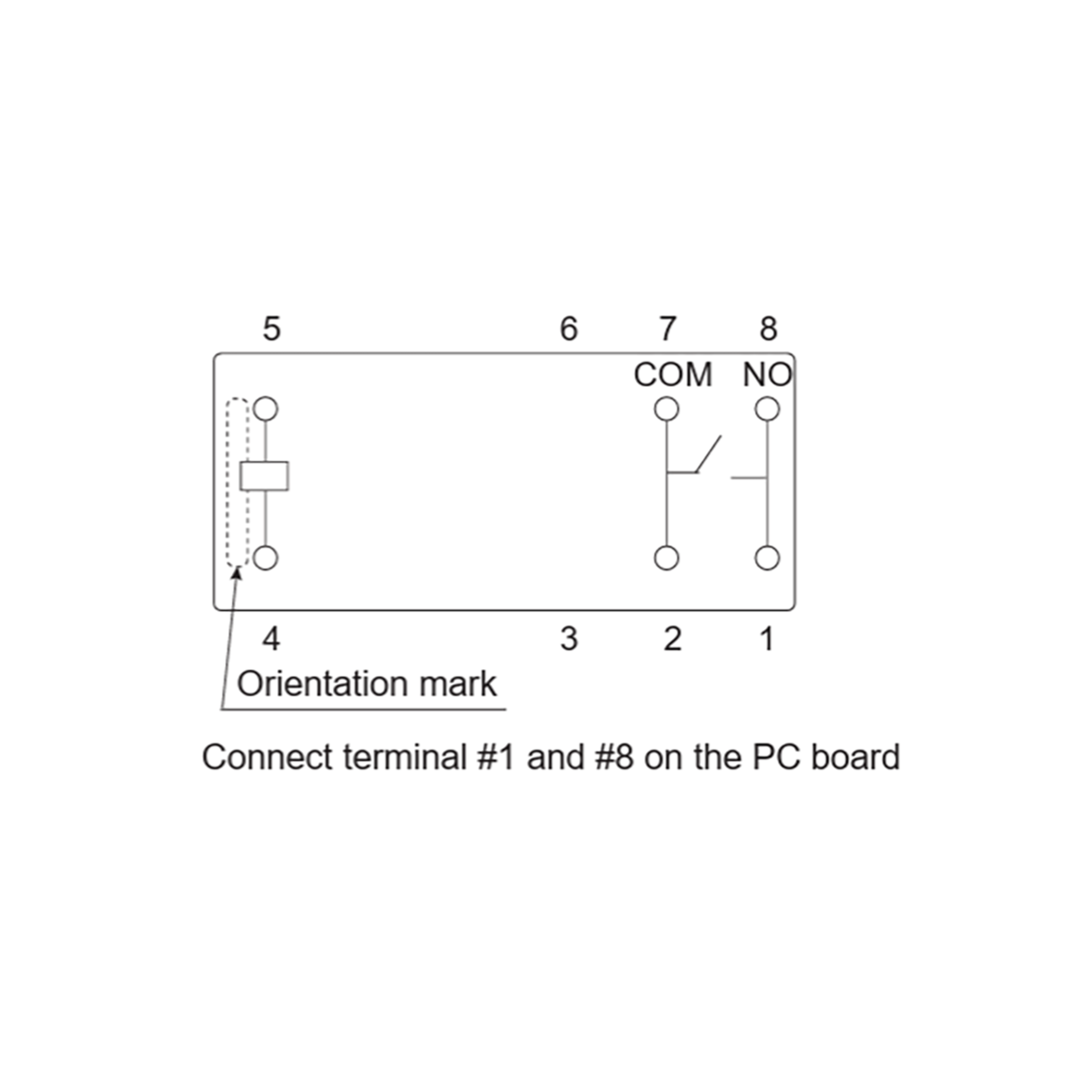

- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 1,440 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

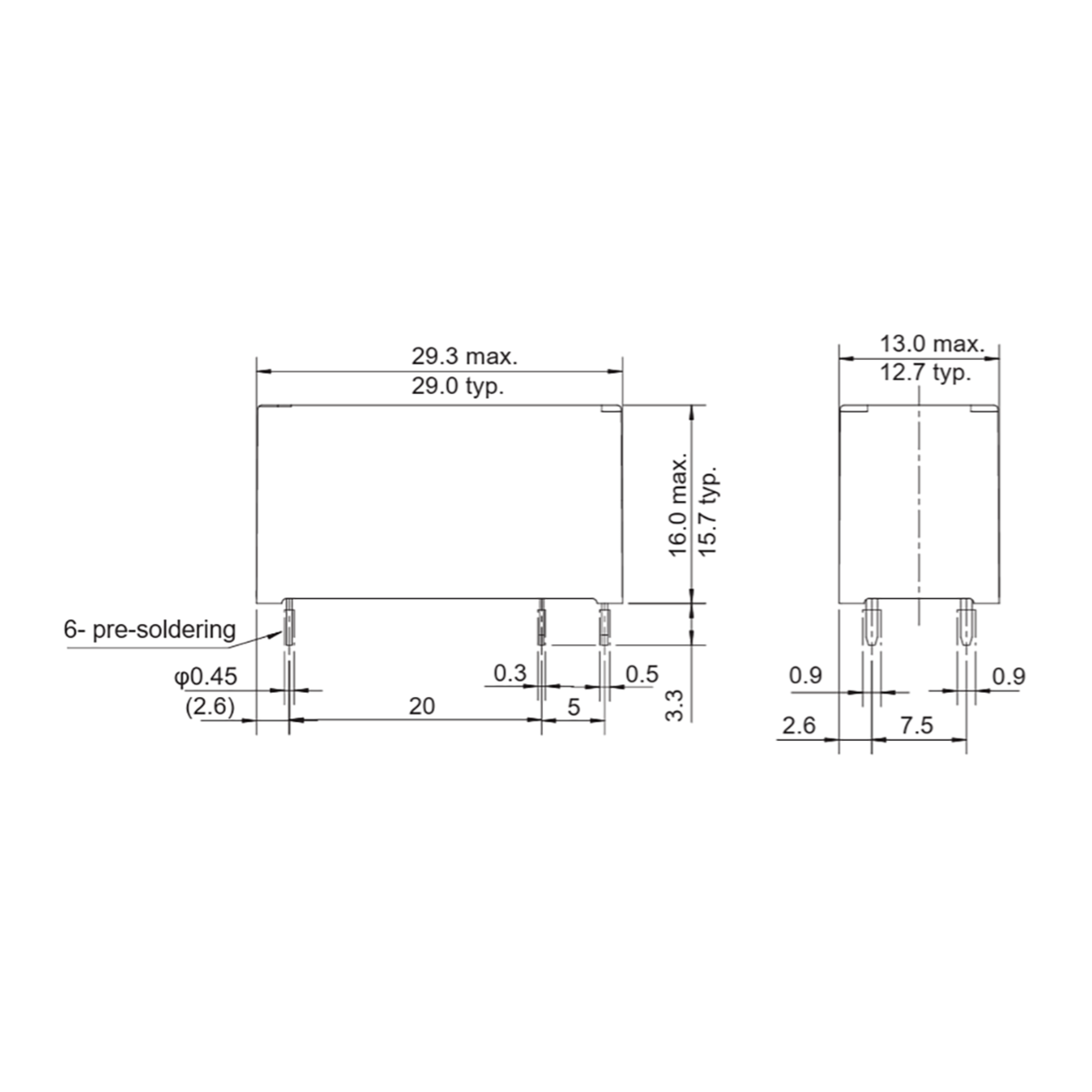

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 13 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Rated Current
- 16 A
- Contact: Carry Current
- 20 A
- Contact resistance
- 100 mOhm
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 1,440 Ohm
- Inductor power
- 400 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, min.
- 16.8 V
- Coil: Drop-out Voltage
- 2.4 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 15 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 20 x 10^6 operations
- Service life, electrical
- 20,000 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 0,35 mm SA
- Impact resistance, functional
- 100 m/s²
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- UL60947-1, UL60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 6097-4-1, CSA C22.2 No. 60947-4-1, UL 121201 (Class I, Division 2, Group A, B, C. D), IEC/EN 61810-1, IEC/EN 62368-1 G.2.2
- Protection class RT
- RTIII
