FTR-K1AK005T
FCL Components PC relay FTR-K1 THT SPST-NO 16A 5VDC 62Ohm 29mmx12,7mmx15,7mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
250 Pcs. in stock
Next Stock Receipt
Week 22/2026
250 Pcs.
250 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- FTR-K1
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 62 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

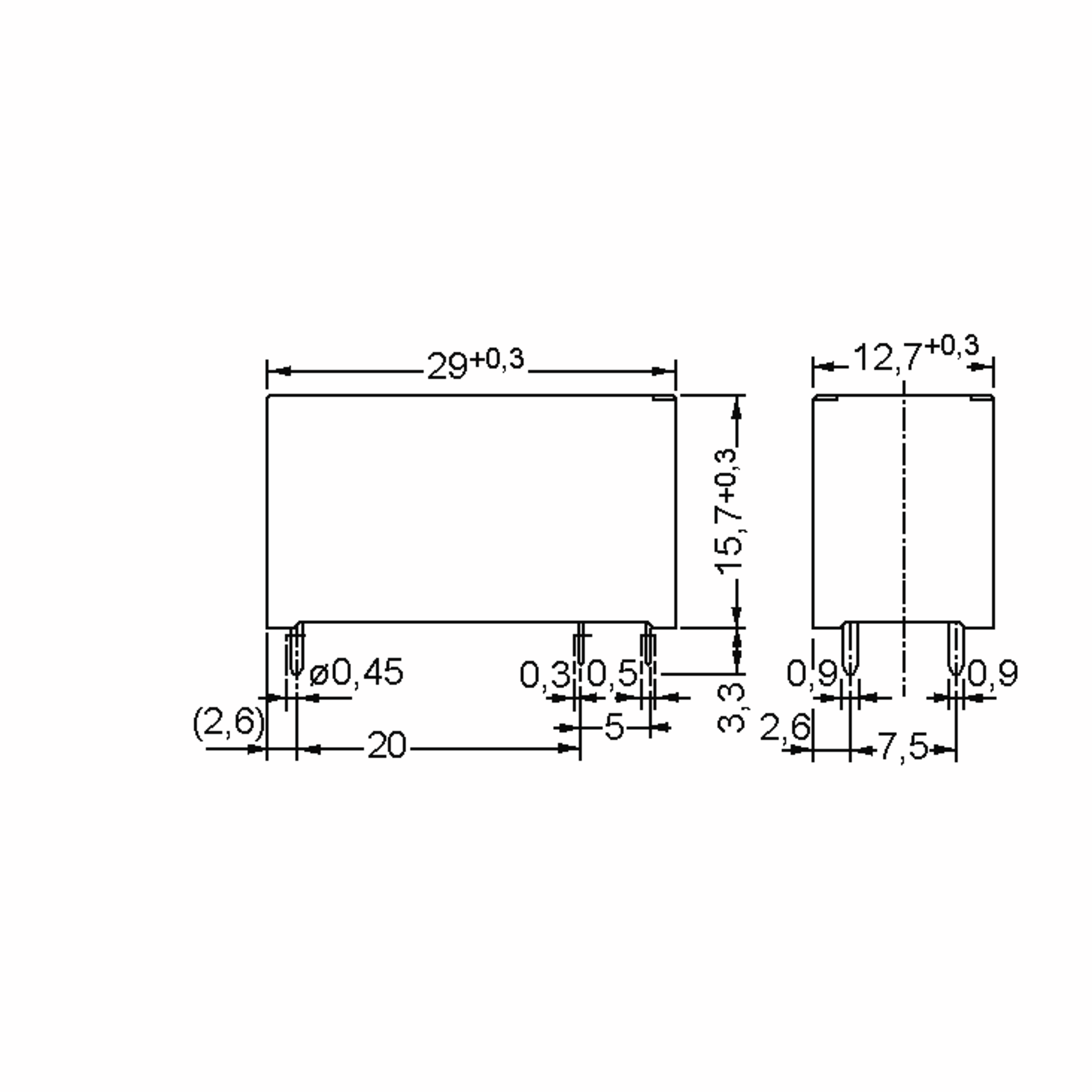

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 13 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Switching Voltage, max. AC
- 440 V AC
- Contact: Switching Voltage, max. DC
- 300 V DC
- Contact: Carry Current
- 20 A
- Contact: Switching Capacity (VA)
- 4,000 VA
- Contact: Switching Load (W)
- 384 W
- Contact resistance
- 100 mOhm
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 62 Ohm
- Inductor power
- 400 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Pick-up voltage
- 3.5 V
- Coil: Drop-out Voltage
- 0.5 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 15 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 20 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 1,7 mm DA
- Impact resistance, functional
- 100 m/s²
- Soldering temperature, max.
- 260°C / 5s
Safety/Certifications
- Approvals
- SEMKO
- UL
- VDE
- cCSA
- Protection class RT
- RTII
