FTR-G3CN012W1

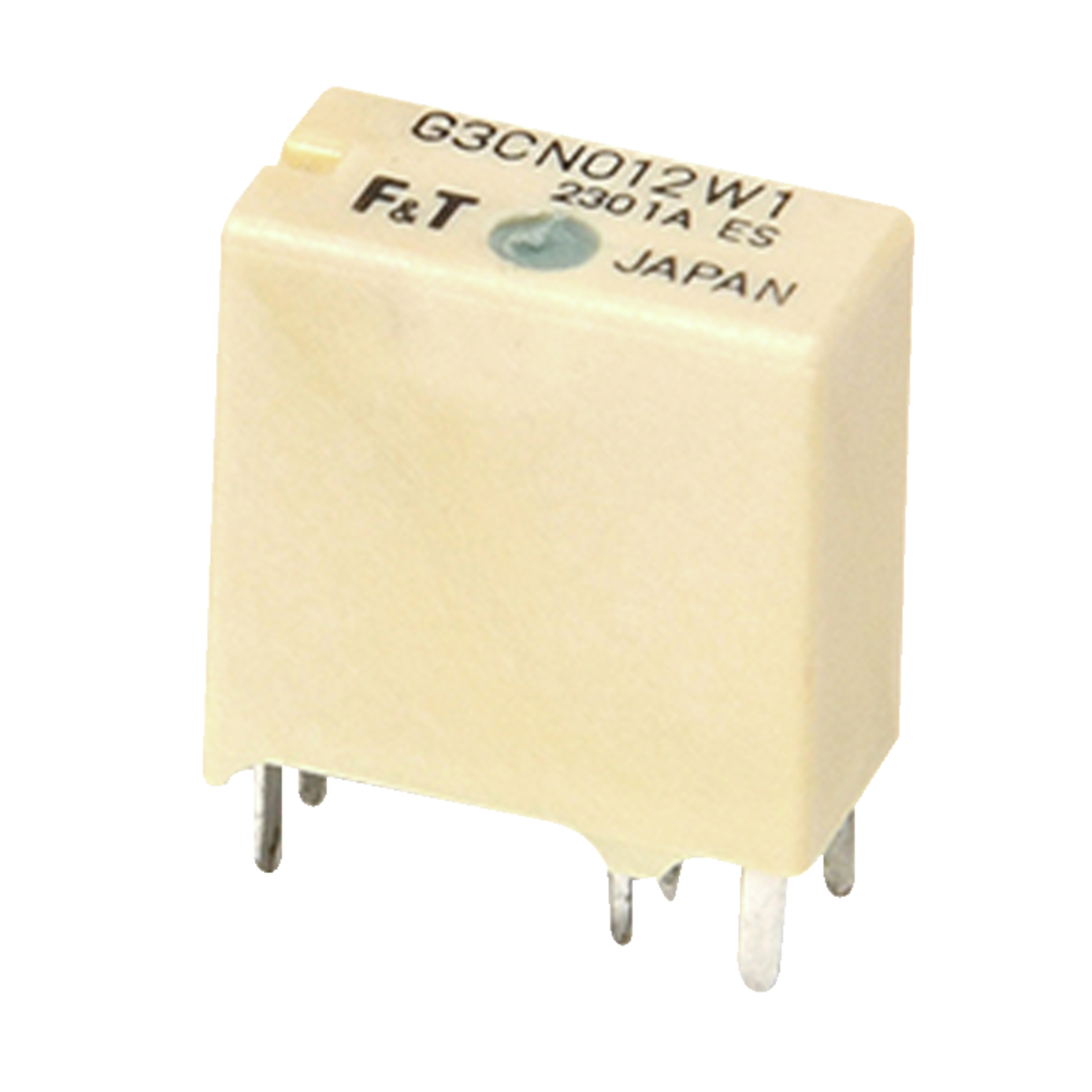

FCL Components Automotive relay FTR-G3 SPDT 35A 12VDC 225Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
370 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Automotive relay
- Series
- FTR-G3
- Rated current
- 30 A
- Rated voltage DC
- 12 V DC
- Dielectric strength
- 0.5 kV
- Switching current
- 35 A

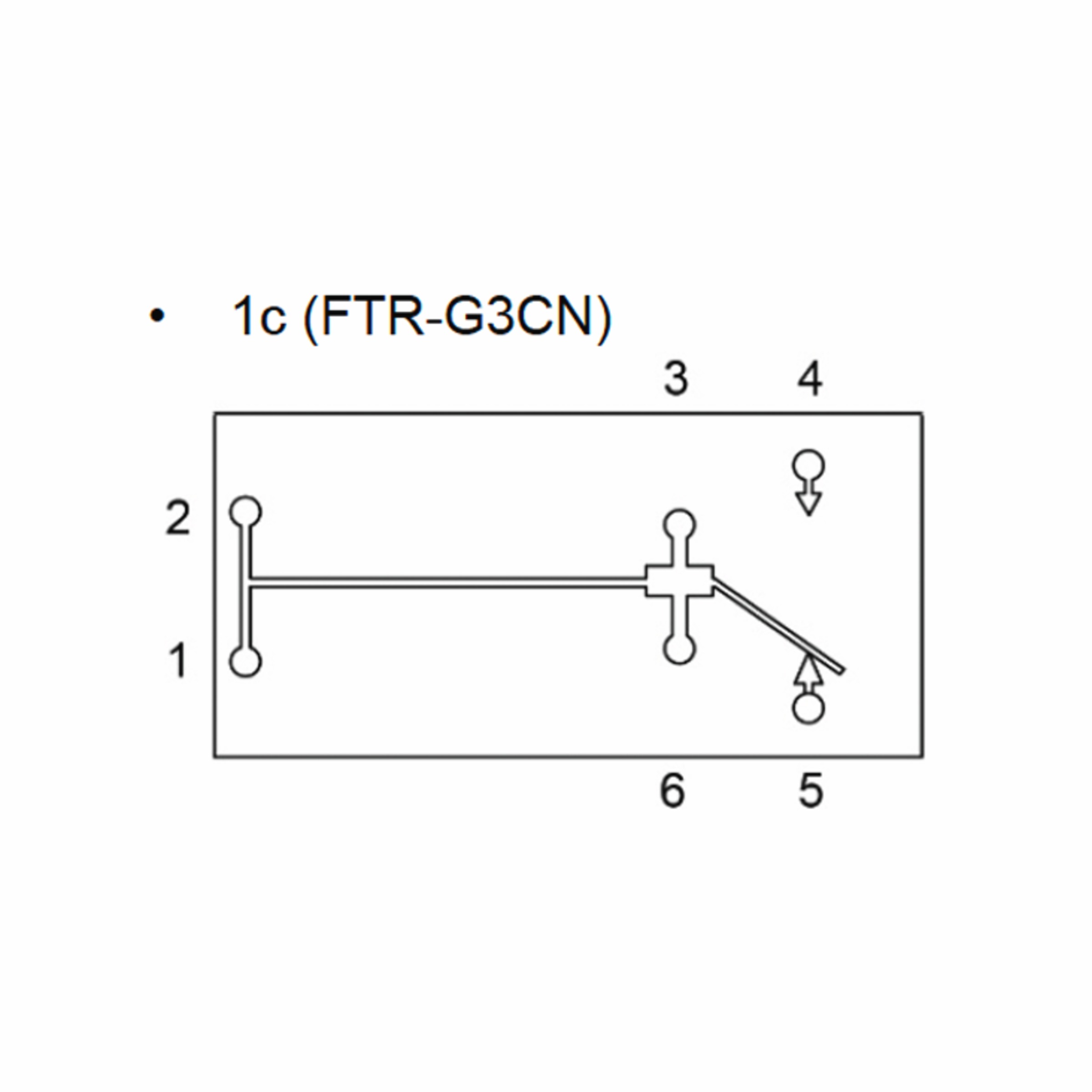

- contacts
- SPDT
- Coil resistance
- 225 Ohm
- Dimension: Length
- 13.7 mm
- Dimension: Width
- 6.6 mm
- Dimension: Height
- 14 mm
- RoHS-Conform
Specifications
Open all

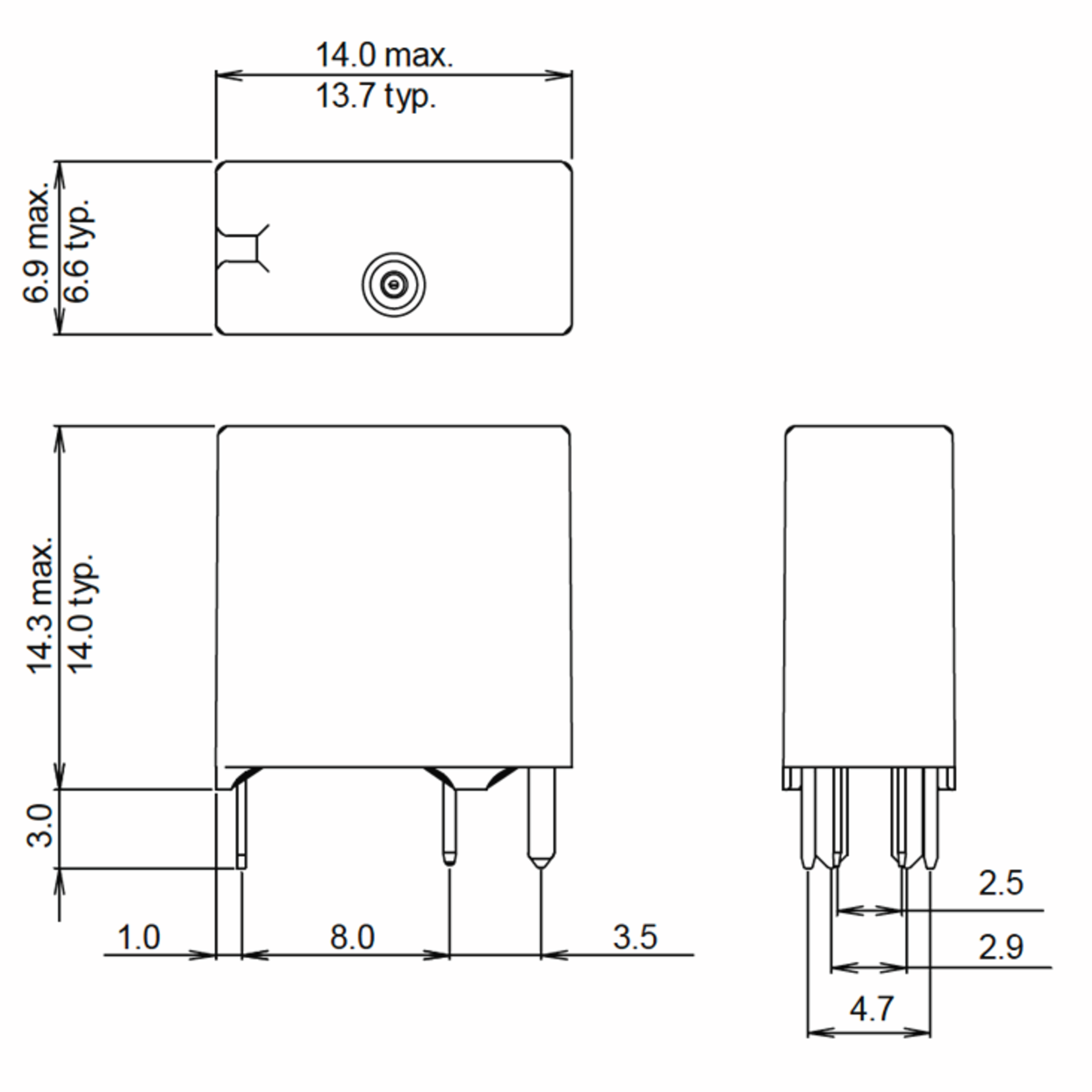

Dimensions and weights
- Dimension: Length
- 13.7 mm
- Dimension: Width
- 6.6 mm
- Dimension: Height
- 14 mm
- Weight
- 4 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. DC
- 16 V DC
- Response voltage
- 7.3 V
- Drop-out voltage
- 1 V
- Rated current
- 30 A
- Switching current
- 35 A
- Continuous current
- 40.5 A
- Dielectric strength
- 0.5 kV
- Rated power
- 640 mW
- Coil resistance
- 225 Ohm
- Insulation resistance
- 100 MOhm
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 4,5 G
