FTR-E1JA024Y-MF

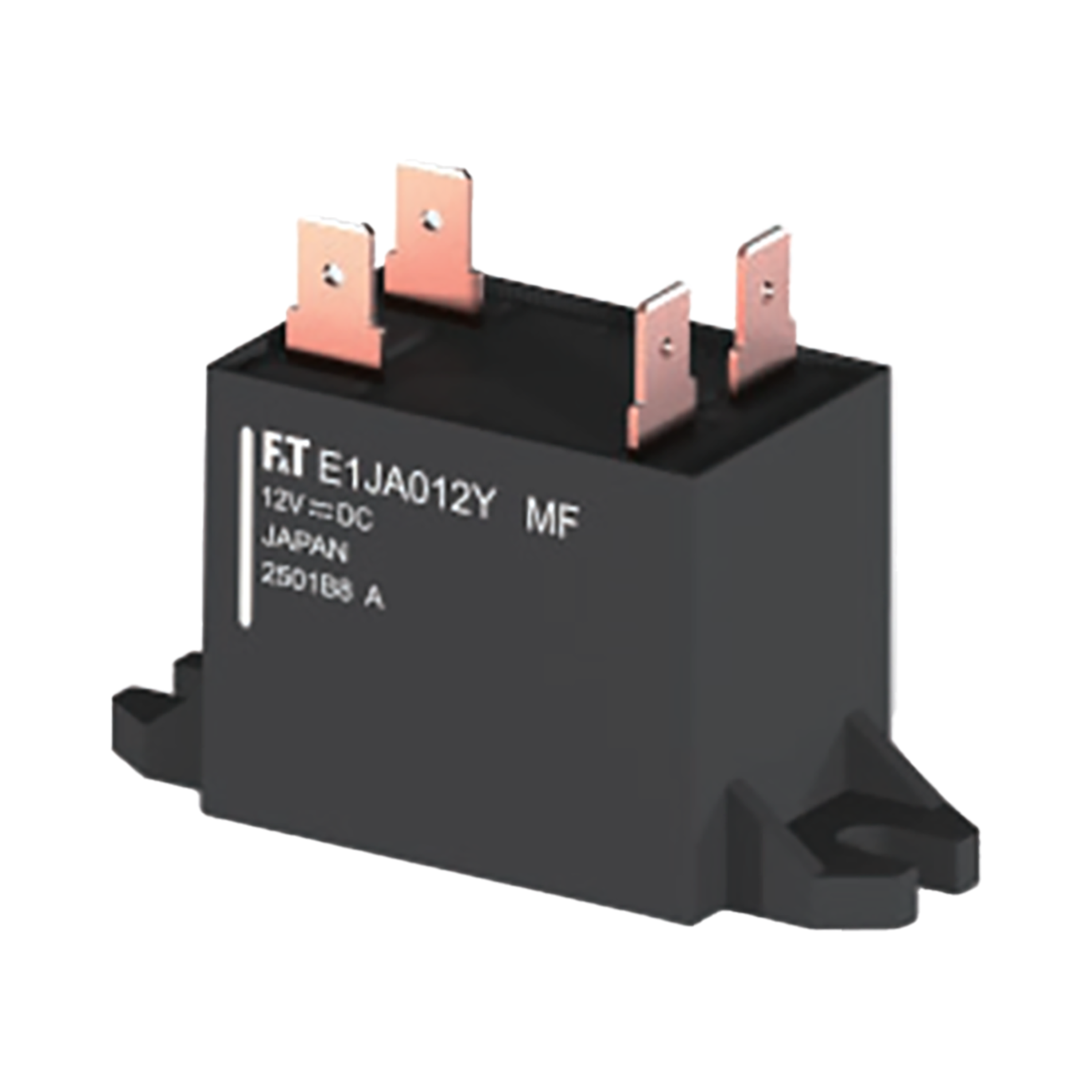

FCL Components PC relay FTR-E1J Screw Mount SPST-NO 20A 640Ohm 43,6mmx28,3mmx36,1mm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable sockets and accessories. - Series
- FTR-E1J
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 20 A
- Coil resistance
- 640 Ohm
- RoHS-Conform
Specifications
Open all

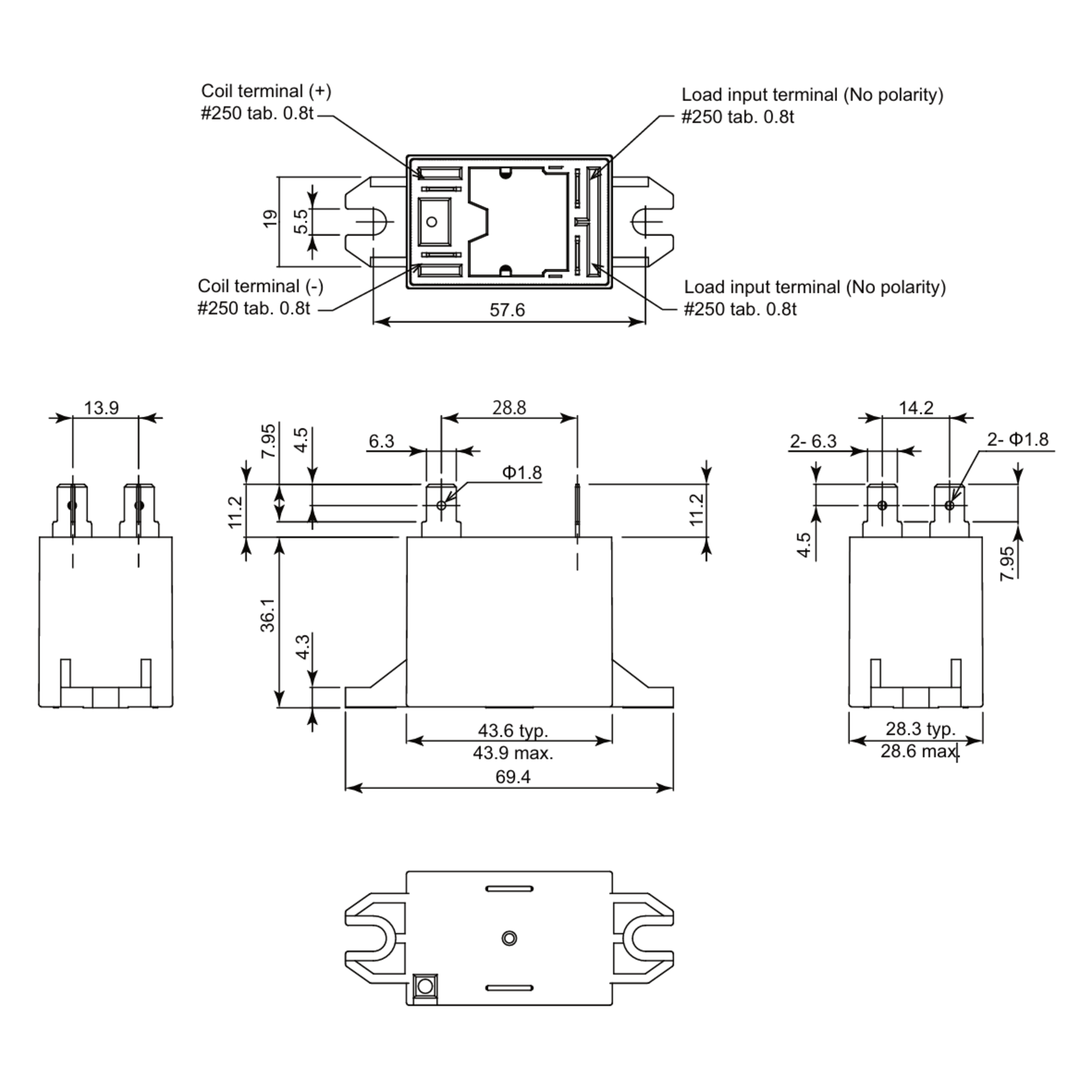

Dimensions and Weights
- Dimension: Length
- 43.6 mm
- Dimension: Width
- 28.3 mm
- Dimension: Height
- 36.1 mm
- Weight
- 85 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 20 A
- Contact: Switching Voltage, max. DC
- 800 V DC
- Contact: Carry Current
- 20 A
- Creepage distance
- 12.7 mm
- Coil design
- monostable
- Coil resistance
- 640 Ohm
- Inductor power
- 900 mW
- Coil: Operating Voltage, min.
- 14.4 V
- Coil: Pick-up voltage
- 2 V
- Test voltage open contacts
- 2,500 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 30 ms
- Drop-out time
- 10 ms
- Mechanical service life
- 1 x 10^6 operations
- Service life, electrical
- see data sheet
- Insulation resistance
- 1.000 MOhm
