FTR-E1AA024Y-HC

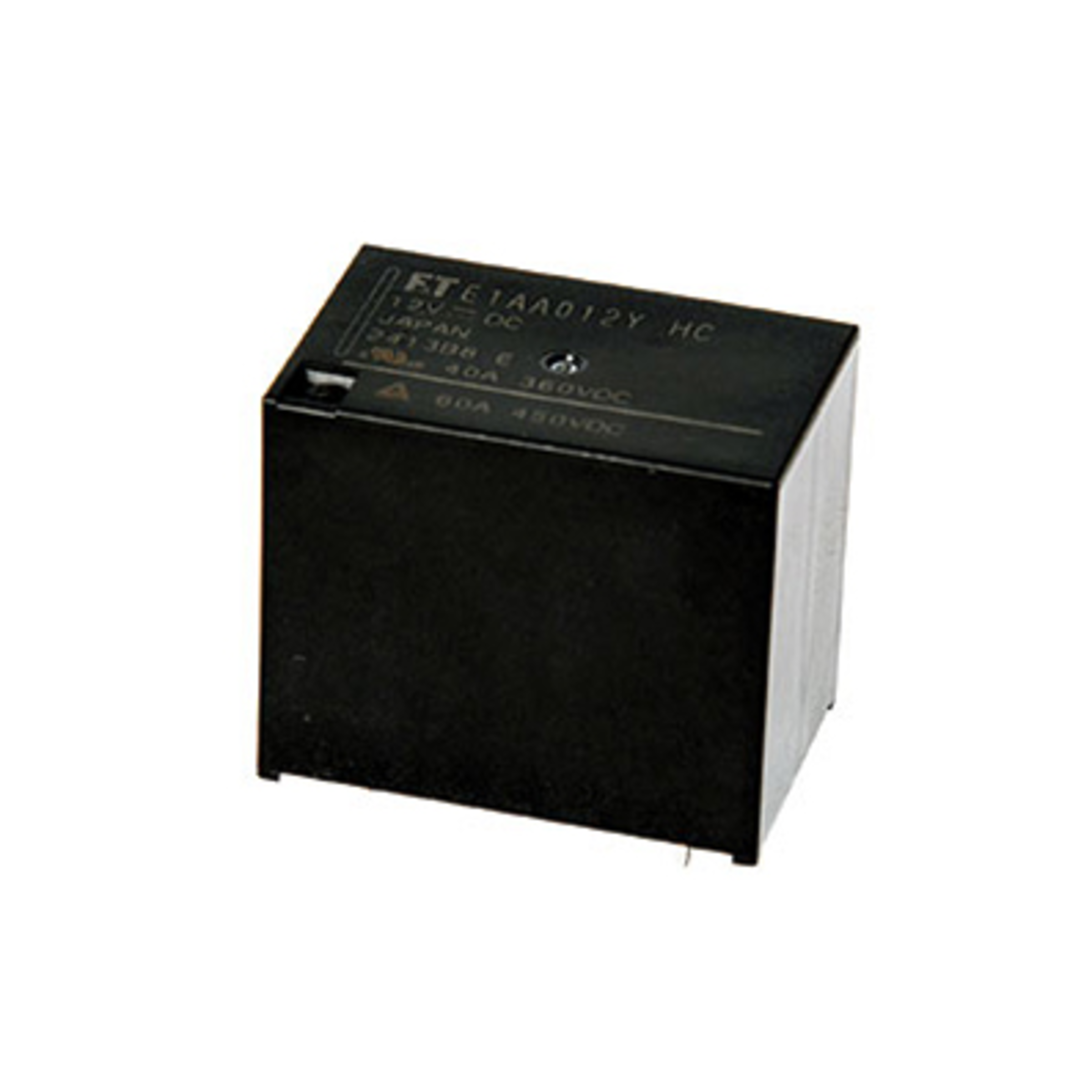

FCL Components PC relay FTR-E1-HC THT SPST-NO 60A 24VDC 480Ohm 43,6mmx28,3mmx36,8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable sockets and accessories. - Series
- FTR-E1-HC

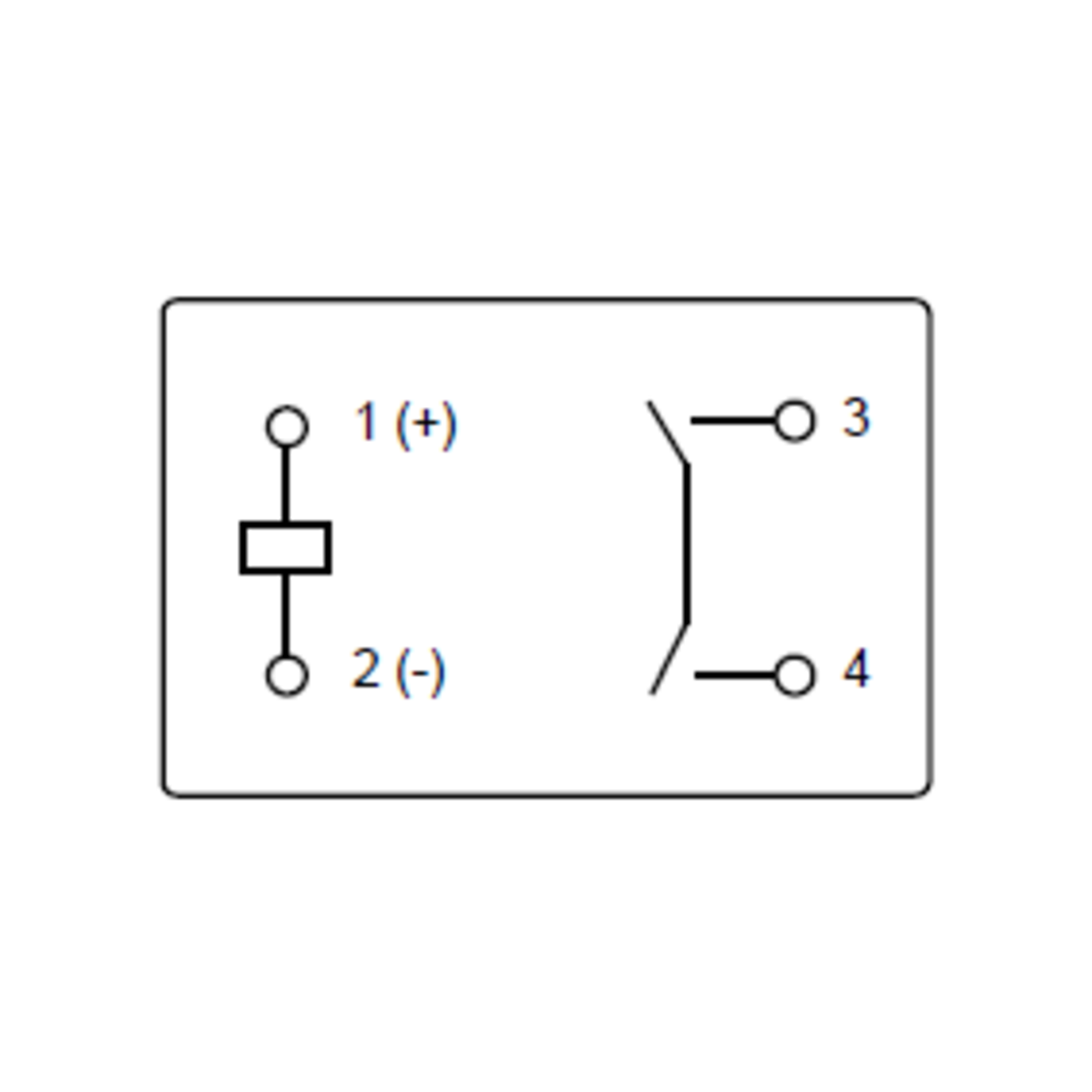

- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 60 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 480 Ohm
- RoHS-Conform
Specifications
Open all

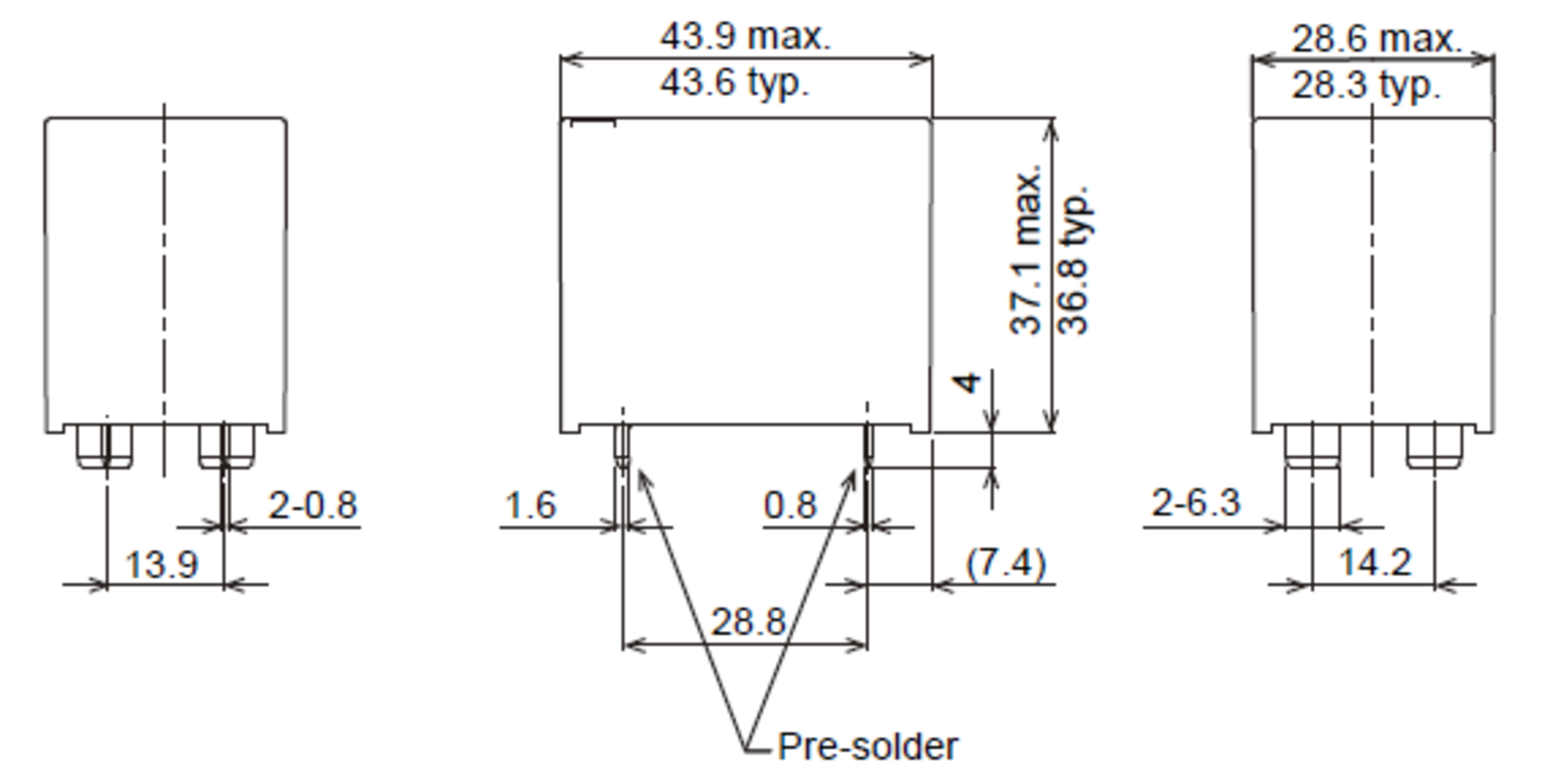

Dimensions and Weights
- Dimension: Length
- 43.6 mm
- Dimension: Width
- 28.3 mm
- Dimension: Height
- 36.8 mm
- Weight
- 80 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 60 A
- Contact: Switching Voltage, max. DC
- 450 V DC
- Contact: Carry Current
- 60 A
- Coil design
- monostable
- Coil resistance
- 480 Ohm
- Inductor power
- 1,200 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, min.
- 16.8 V
- Coil: Drop-out Voltage
- 2 V
- Test voltage open contacts
- 2,500 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 30 ms
- Drop-out time
- 10 ms
- Mechanical service life
- 500,000 operations
- Service life, electrical
- 500 operations
- Insulation resistance
- 1.000 MOhm
Safety/Certifications
- Approvals
- MOT
- cULus
- Standards
- UL508, C22.2 No.14-13, IEC61810-1
