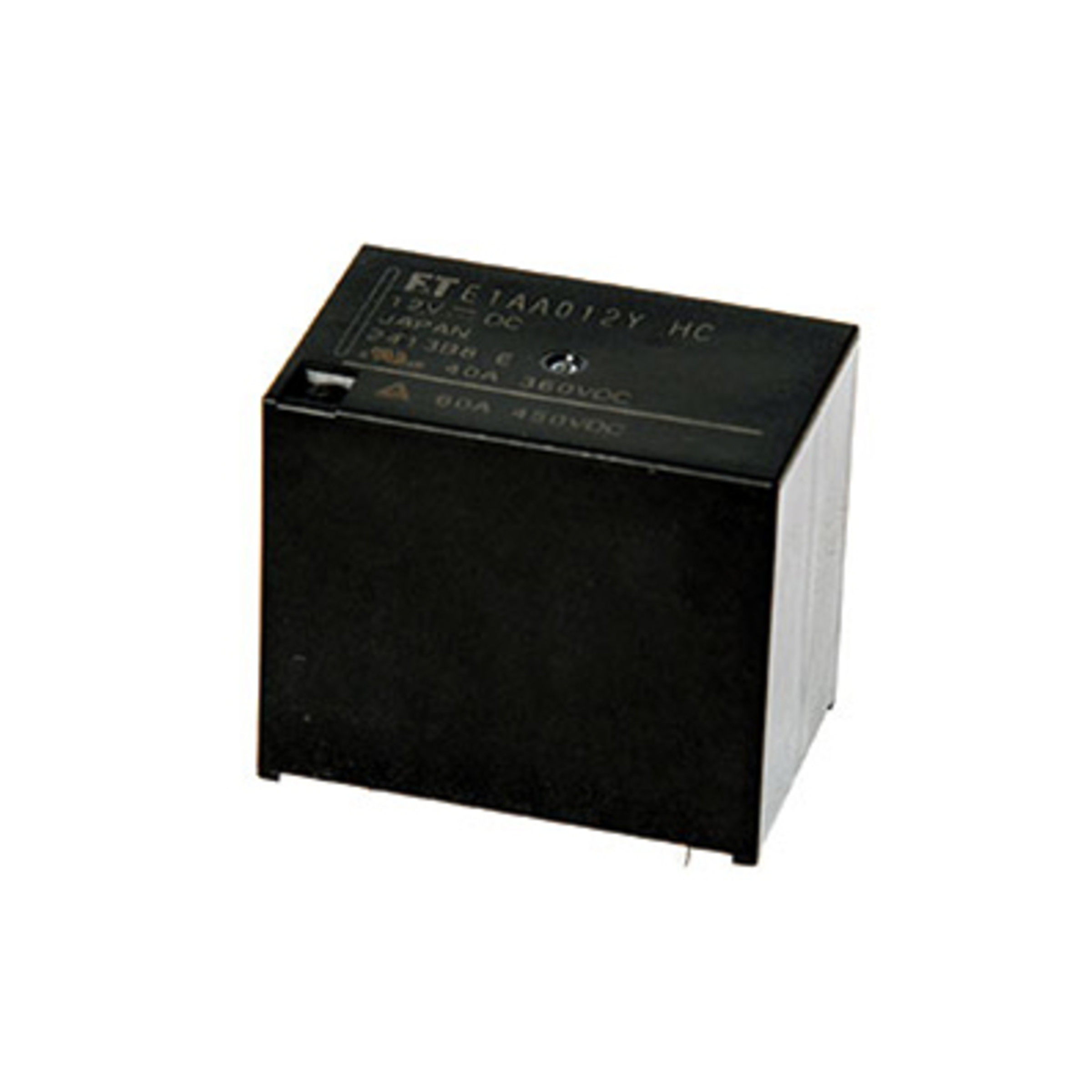

FTR-E1AA012Y-HC
FCL Components Power relay FTR-E1-HC THT SPST-NO 60A 12VDC 120Ohm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
100 Pcs.
100 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- FTR-E1-HC
- Rated voltage DC
- 12 V DC
- Switching current
- 60 A
- contacts
- SPST-NO
- Coil resistance
- 120 Ohm
- Dimension: Length
- 43.6 mm
- Dimension: Width
- 28.3 mm
- Dimension: Height
- 36.8 mm
- RoHS-Conform
Specifications
Open all

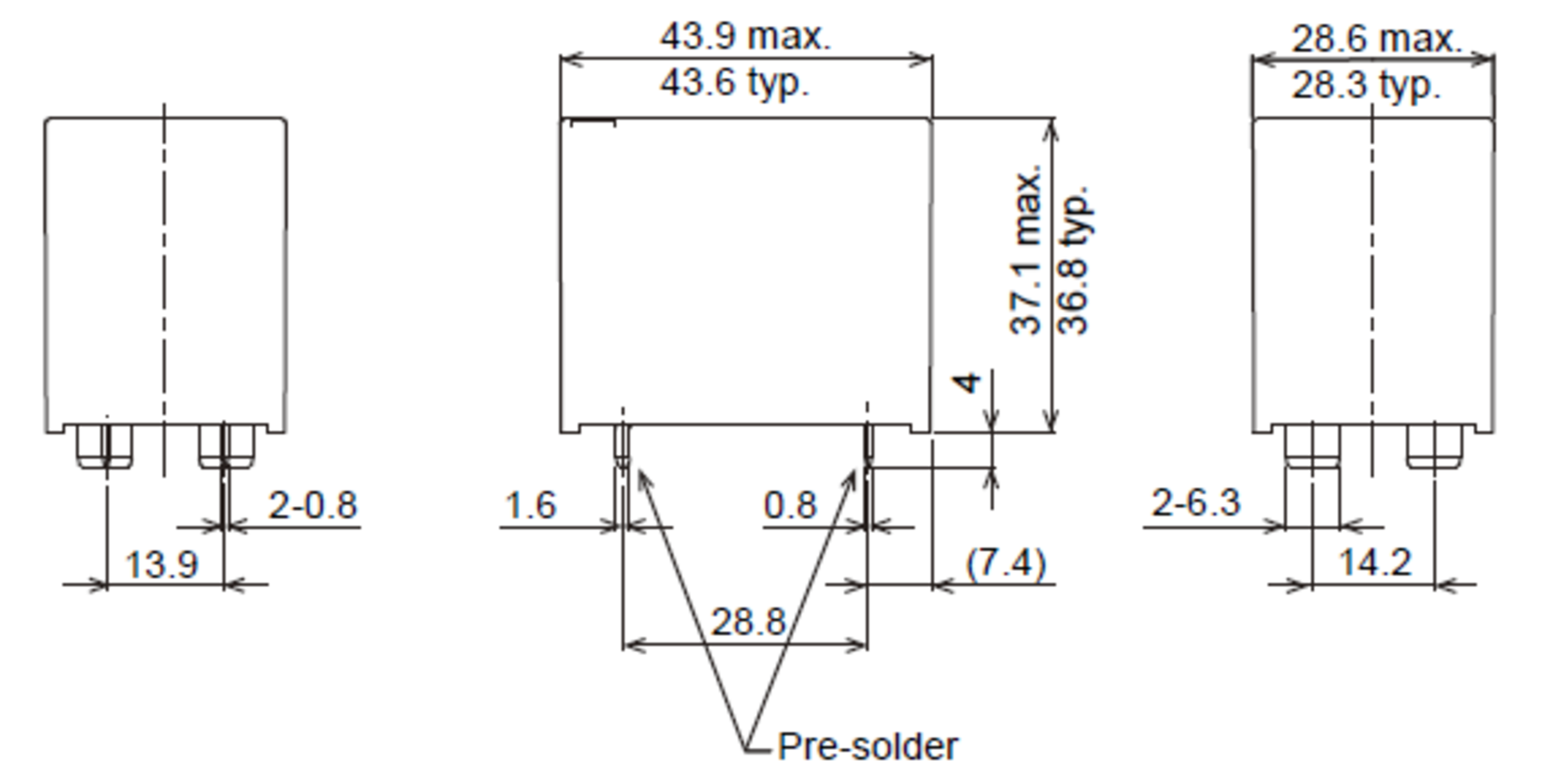

Dimensions and weights
- Dimension: Length
- 43.6 mm
- Dimension: Width
- 28.3 mm
- Dimension: Height
- 36.8 mm
- Weight
- 80 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Switching voltage, max. DC
- 450 V DC
- Response voltage
- 8.4 V
- Drop-out voltage
- 1 V
- Test voltage open contacts
- 2,500 V AC
- Test voltage coil/contact
- 5,000 V AC
- Switching current
- 60 A
- Rated power
- 1,200 mW
- Coil resistance
- 120 Ohm
- Insulation resistance
- 1.000 MOhm
- Response time
- 30 ms
- Drop-out time
- 10 ms
- Mechanical service life
- 500 x 10^3 Operations
- Service life, electrical
- 500 Operations
Safety/Certifications
- Approvals
- MOT
- cULus
- Standards
- UL508, C22.2 No.14-13, IEC61810-1
