FTR-C1GA005G-B05

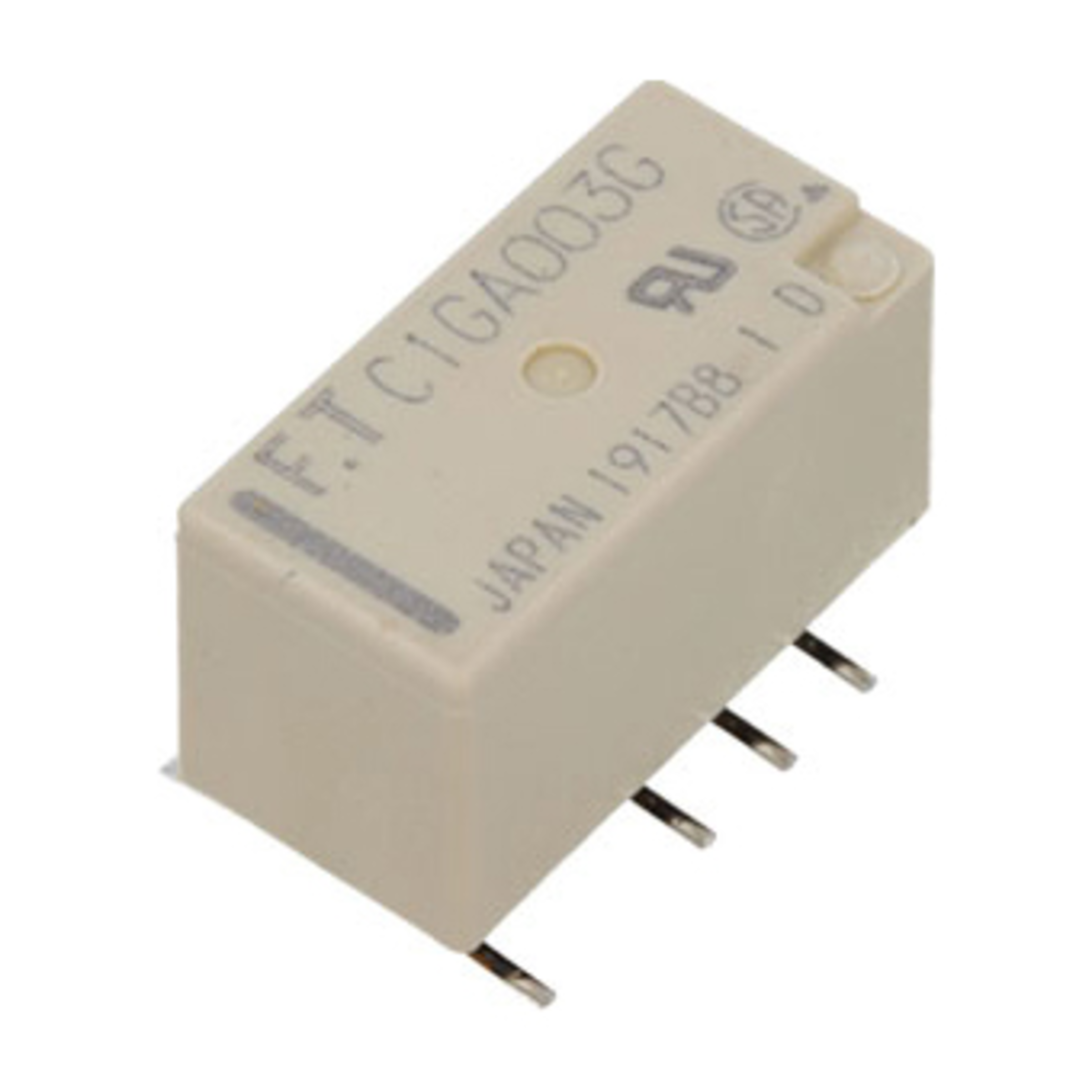

FCL Components PC relay FTR-C1 SMD DPDT 2A 5VDC 89,3Ohm 15,2mmx7,7mmx9,7mm RTIII
Manufacturer Part No.
FTR-C1GA005G-B05
Schukat Part No.
FTR-C1GA005G-B05
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
950 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- FTR-C1
- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 2 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 89.3 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

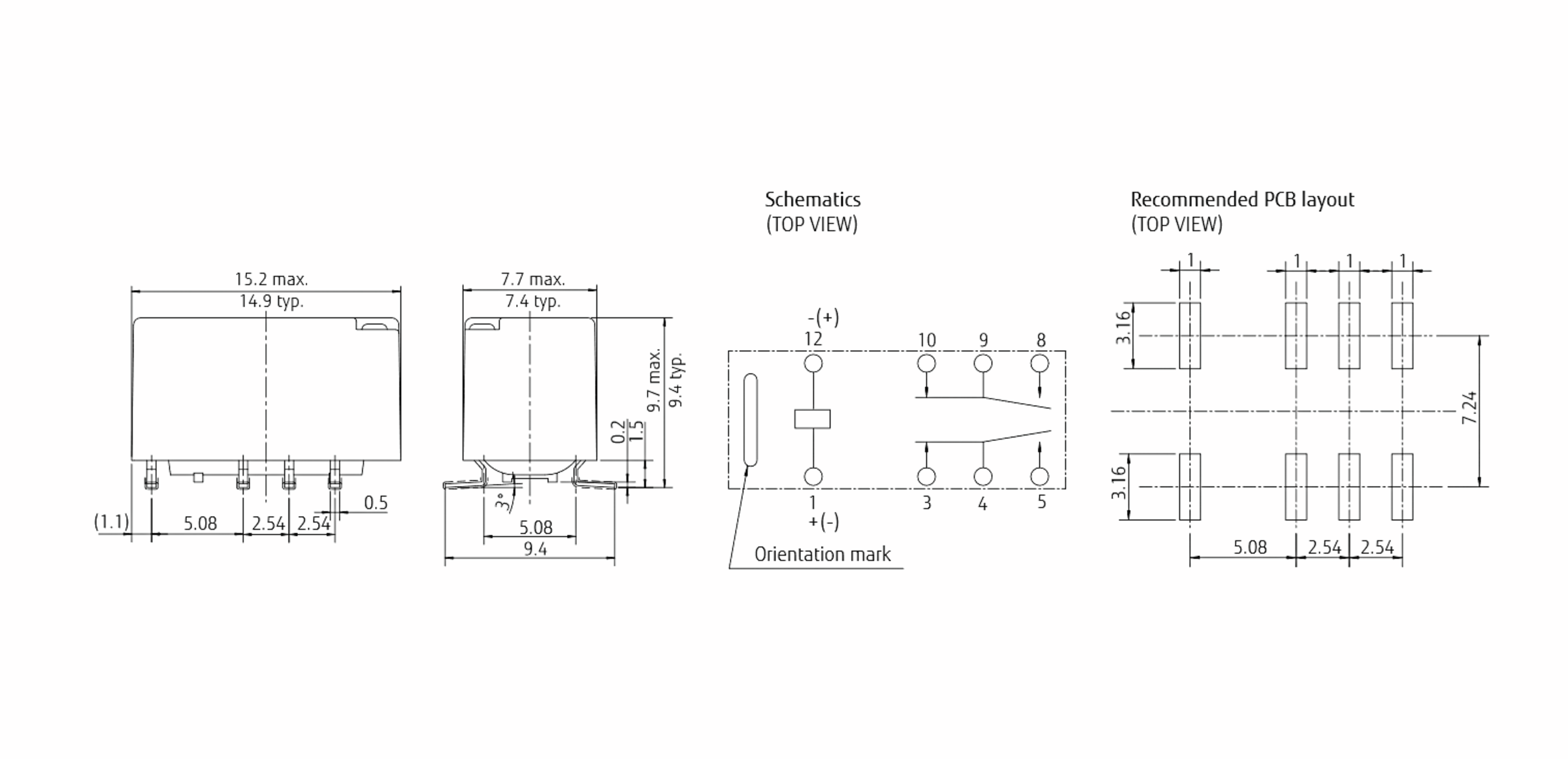

Dimensions and Weights
- Dimension: Length
- 15.2 mm
- Dimension: Width
- 7.7 mm
- Dimension: Height
- 9.7 mm
- Weight
- 2 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact design
- Bifurcated
- Contact: Switching Current (min/typ/max)
- 2 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Switching Voltage, max. DC
- 220 V DC
- Contact: Carry Current
- 2 A
- Contact: Switching Capacity (VA)
- 62.5 VA
- Contact: Switching Load (W)
- 30 W
- Contact resistance
- 150 mOhm
- Creepage distance
- 0.6 mm
- Coil design
- monostable
- Coil resistance
- 89.3 Ohm
- Inductor power
- 280 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Pick-up voltage
- 3.75 V
- Coil: Drop-out Voltage
- 0.5 V
- Test voltage contact/contact
- 1,500 V AC
- Test voltage open contacts
- 1,500 V AC
- Test voltage coil/contact
- 3,000 V AC
- Response time
- 6 ms
- Drop-out time
- 6 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Insulation resistance
- 1.000 MOhm
- Impact resistance, functional
- 500 m/s²
Safety/Certifications
- Approvals
- UL
- cCSA
- Standards
- IEC 60950, EN 60950, UL 1950, CSA C 22.2 Nr. 950
- Protection class RT
- RTIII
