FBR59ND12-Y-HW-M

FCL Components Automotive relay FBR59 SPST-NO 70A 12VDC 320Ohm 20mmx15mmx16,8mm

FBR59ND12-Y-HWFBR59ND12-Y-HW
Manufacturer Part No.
FBR59ND12-Y-HW-M
Schukat Part No.
FBR59ND12-Y-HW
Manufacturer
FCL Components
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

840 Pcs. in stock

Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
FBR59
contacts
SPST-NO
Contact: Switching Current (min/typ/max)
70 A
Coil: Nominal Voltage DC
12 V DC
Coil resistance
320 Ohm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • FCL Components
Type
  • Automotive relay
Series
  • FBR59
Product group
  • E6517
contacts
  • SPST-NO
Contact material
  • AgSnO2
Assembly Type
  • THT
Termination Style
  • Solder connection
Features

  • • Compact single-pole power relays for automotive applications
    • Silver-tin oxide contacts
    • Extended operating temperature range up to 125°C

Notice

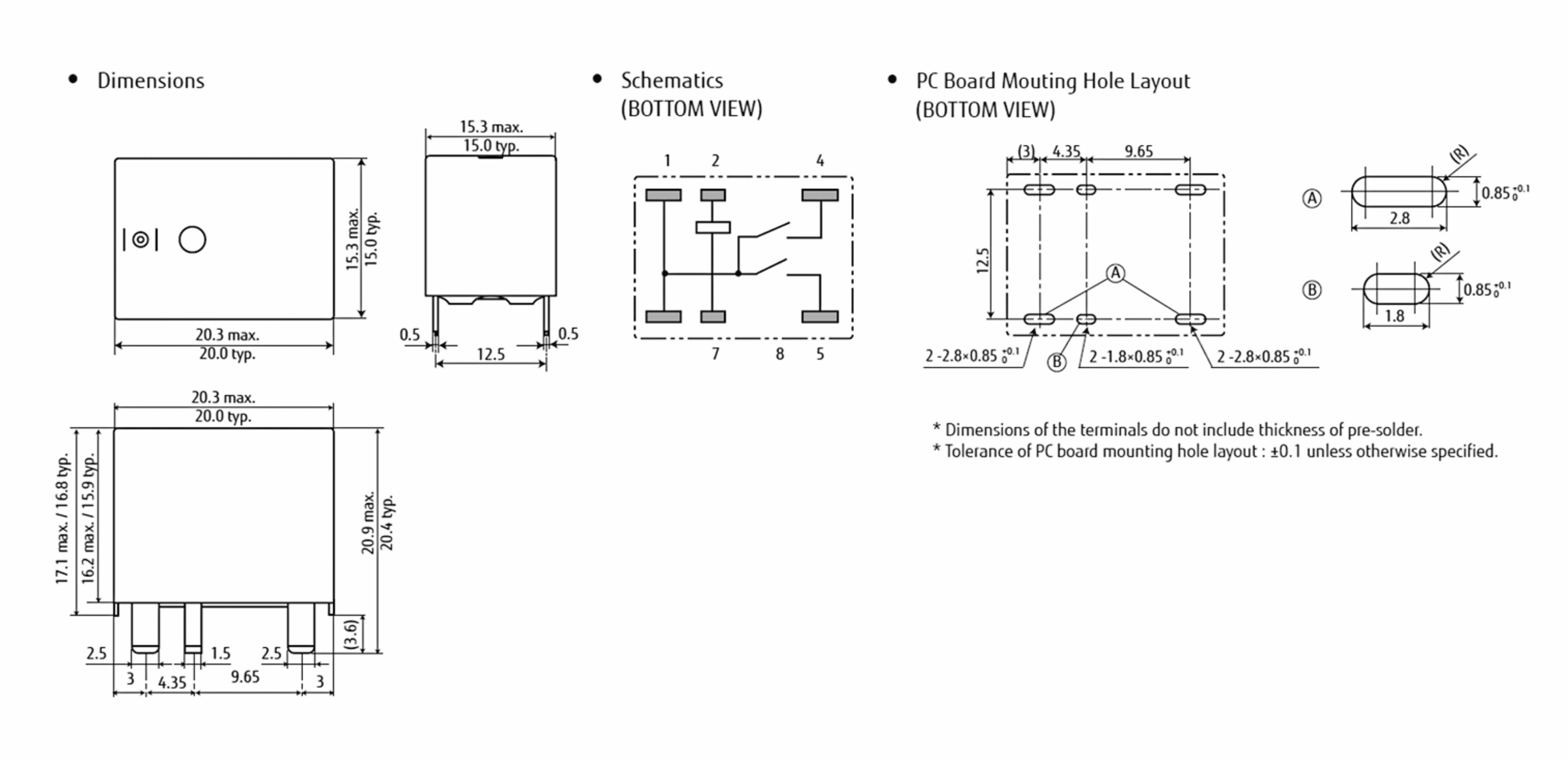

Dimensions and Weights

Dimension: Length
  • 20 mm
Dimension: Width
  • 15 mm
Dimension: Height
  • 16.8 mm
Weight
  • 9 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 125 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 70 A
Contact: Switching Voltage, max. DC
  • 14 V DC
Contact: Inrush current
  • 220 A
Contact: Carry Current
  • 70 A
Contact: Switching Load (W)
  • 980 W
Coil design
  • monostable
Coil resistance
  • 320 Ohm
Coil: Nominal Voltage DC
  • 12 V DC
Coil: Pick-up voltage
  • 7.3 V
Coil: Drop-out Voltage
  • 1 V
Test voltage open contacts
  • 500 V AC
Test voltage coil/contact
  • 500 V AC
Response time
  • 10 ms
Drop-out time
  • 10 ms
Insulation resistance
  • 100 MOhm
Vibration resistance
  • 4,5 g
Impact resistance, functional
  • 100 m/s²
