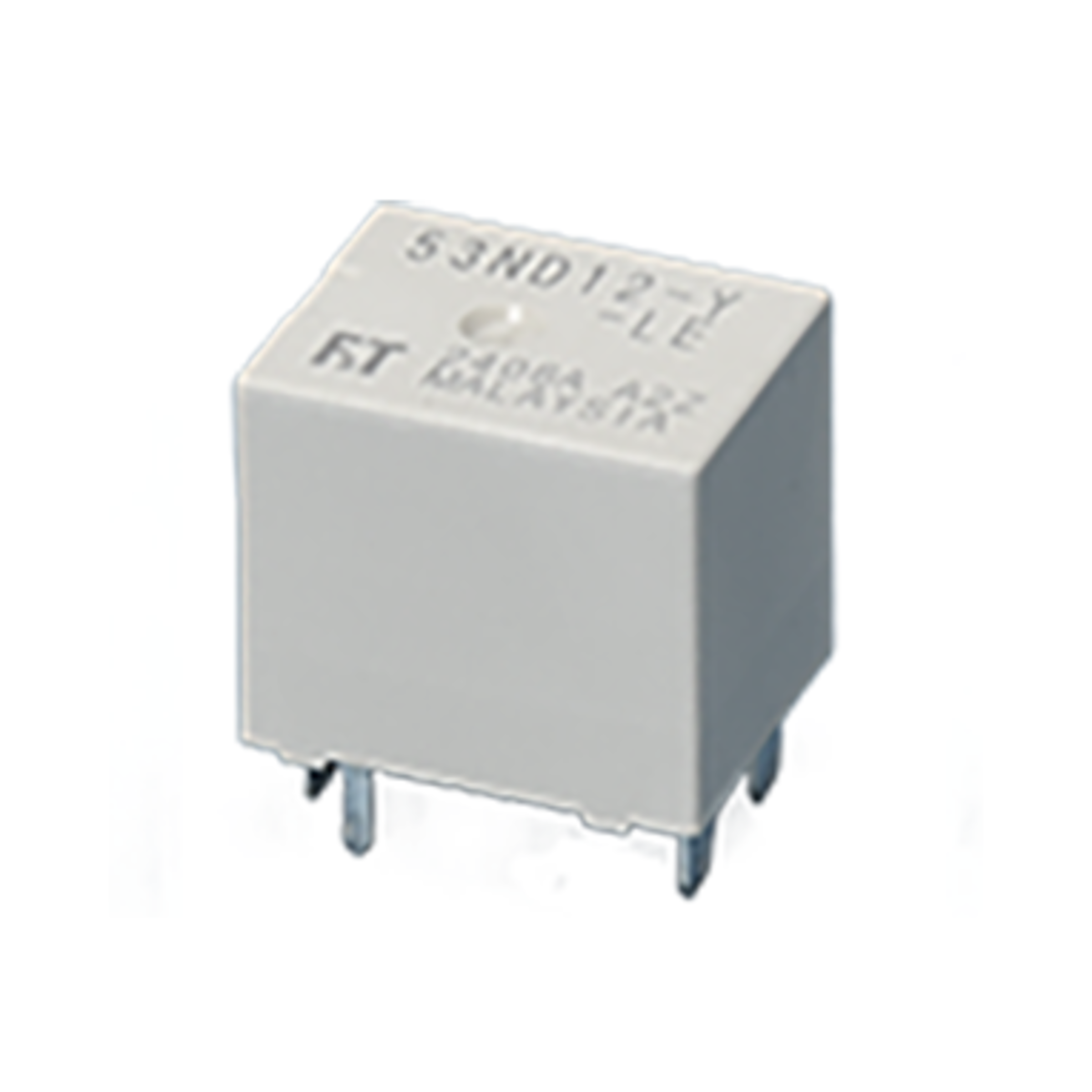

FBR53ND12-Y-LE
FCL Components Automotive relay FBR53-LE SPDT 40A 12VDC 225Ohm 15,5mmx12,1mmx13,7mm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.800 Pcs.
1.800 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1800 or multiple of 1800)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FBR53-LE
- Type
- Automotive relay
- contacts
- SPDT
- Switching current
- 40 A
- Rated voltage DC
- 12 V DC
- Coil resistance
- 225 Ohm
- Dimension: Length
- 15.5 mm
- Dimension: Width
- 12.1 mm
- Dimension: Height
- 13.7 mm
- RoHS-Conform
Specifications
Open all

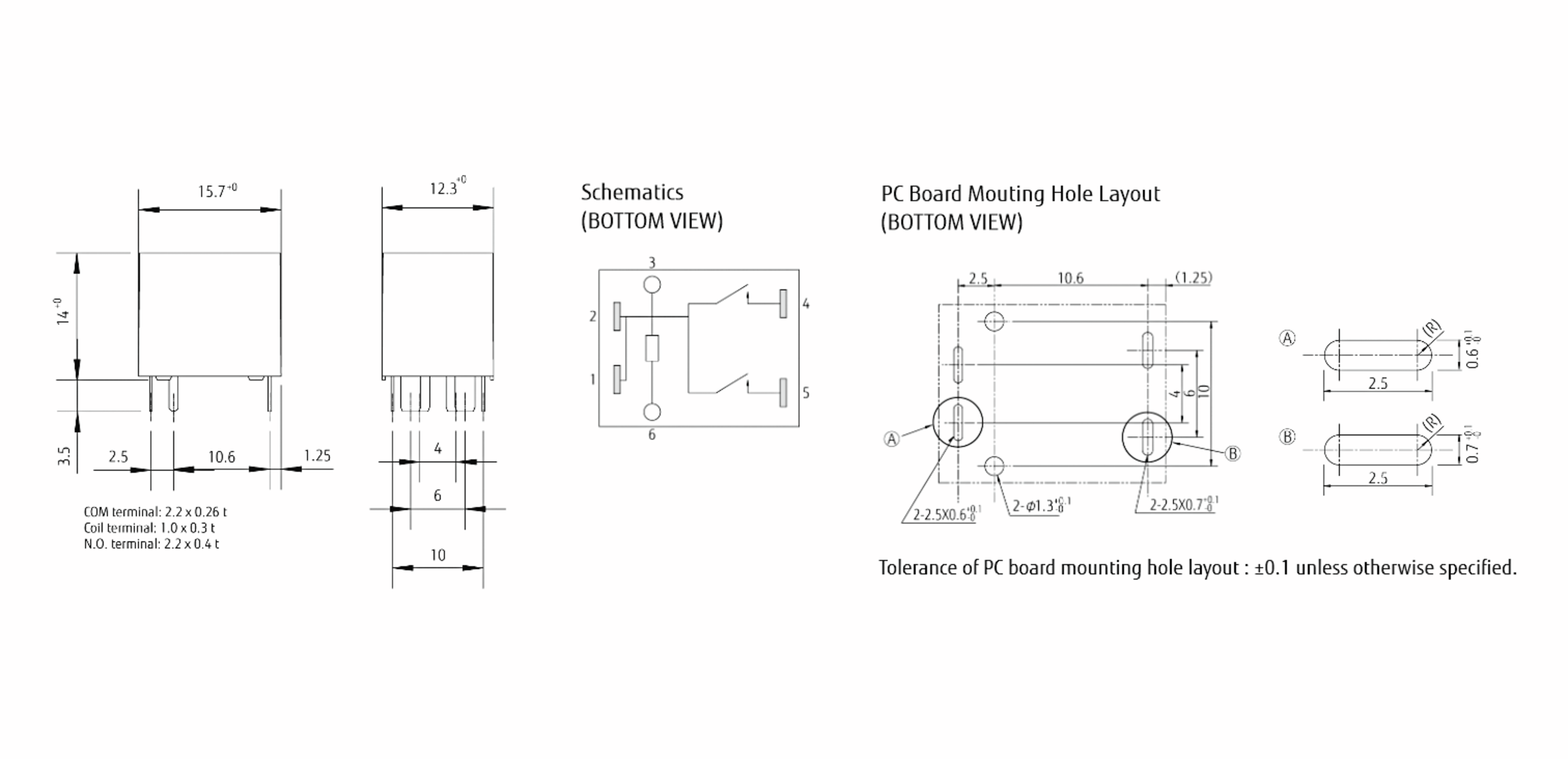

Dimensions and Weights
- Dimension: Length
- 15.5 mm
- Dimension: Width
- 12.1 mm
- Dimension: Height
- 13.7 mm
- Weight
- 6 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Rated voltage DC
- 12 V DC
- Response voltage
- 7.3 V
- Drop-out voltage
- 1 V
- Test voltage open contacts
- 500 V AC
- Test voltage coil/contact
- 500 V AC
- Switching current
- 40 A
- Inrush current
- 200 A
- Transport Current
- 54 A
- Rated power
- 640 mW
- Coil resistance
- 225 Ohm
- Insulation resistance
- 100 MOhm
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 1 x 10^6 Operations
- Service life, electrical
- 100 x 10^3 Operations
