FBR53ND12-Y-HW

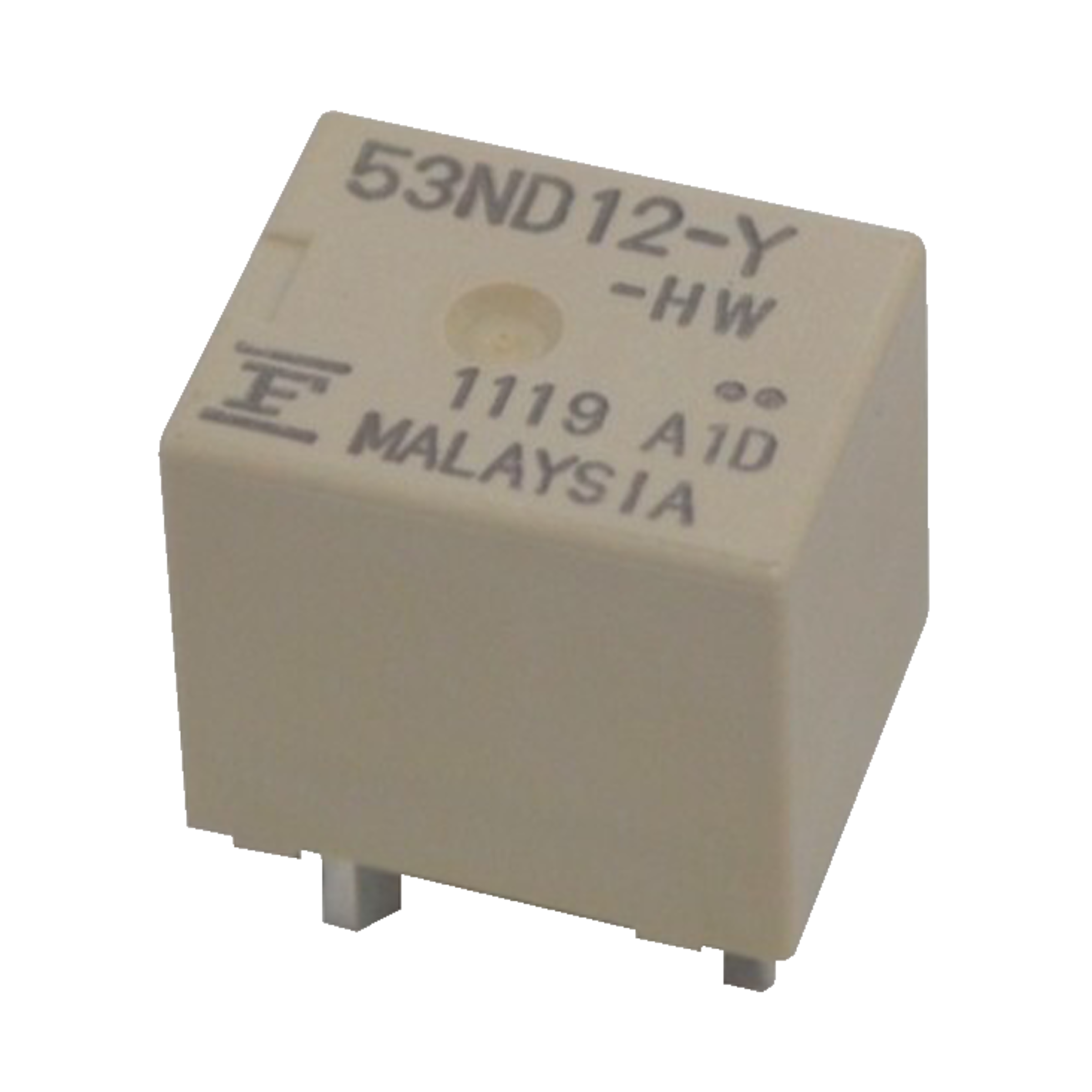

FCL Components Automotive relay FBR53 SPST-NO 40A 12VDC 167Ohm 15,7mmx12,3mmx14mm

FBR53ND12Y-HWFBR53ND12Y-HW
Manufacturer Part No.
FBR53ND12-Y-HW
Schukat Part No.
FBR53ND12Y-HW
Manufacturer
FCL Components
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

495 Pcs. in stock

Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 360 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
FBR53
contacts
SPST-NO
Contact: Switching Current (min/typ/max)
40 A
Coil: Nominal Voltage DC
12 V DC
Coil resistance
167 Ohm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • FCL Components
Type
  • Automotive relay
Series
  • FBR53
Product group
  • E6517
contacts
  • SPST-NO
Contact material
  • AgSnO2/In
Assembly Type
  • THR
Termination Style
  • Solder connection
Application

  • • Suitable for automotive applications

Features

  • • Compact single-pole power relays
    • Silver-tin oxide-indium contacts
    • Extended operating temperature range up to 125°C

Notice

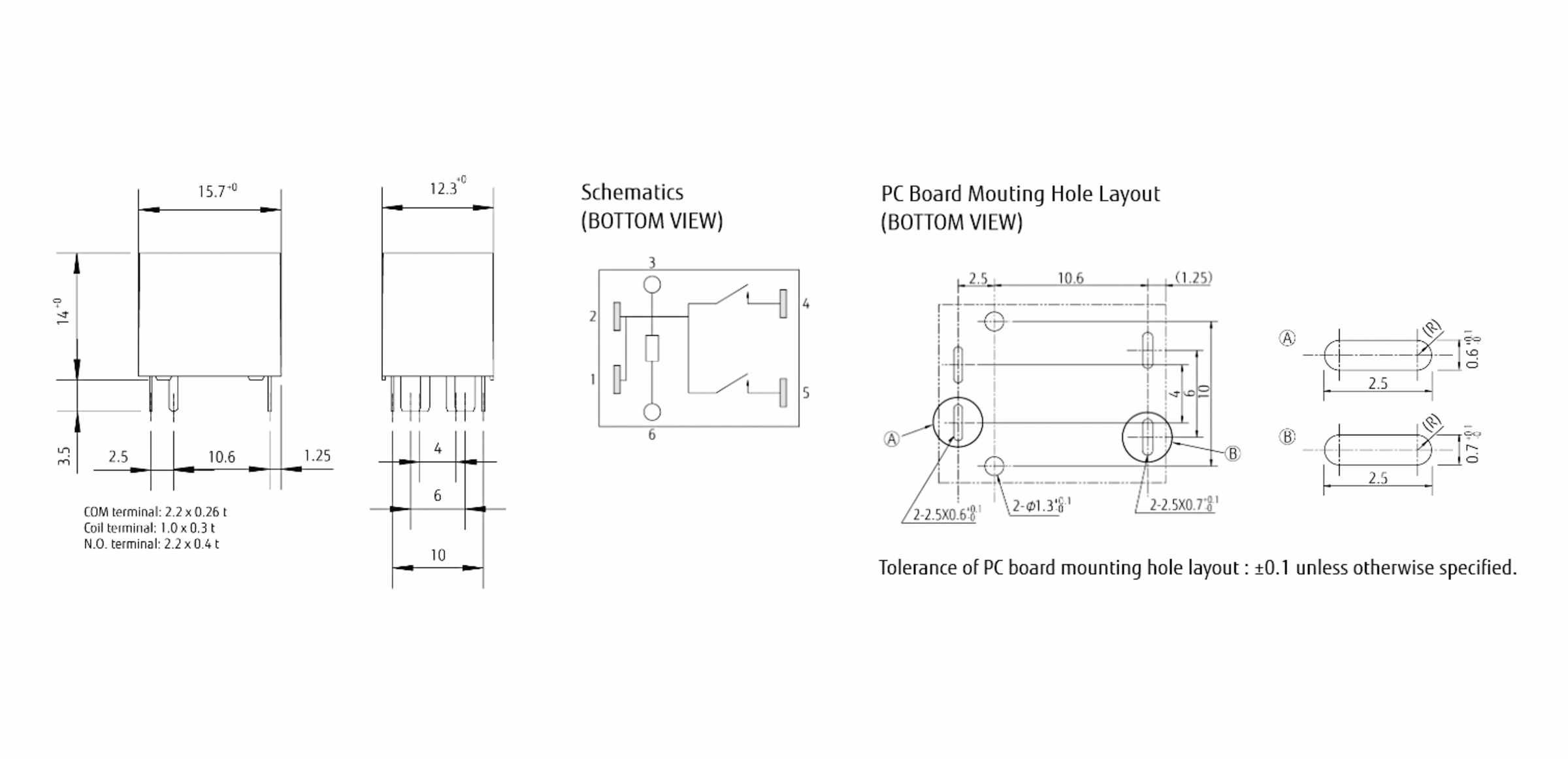

Dimensions and Weights

Dimension: Length
  • 15.7 mm
Dimension: Width
  • 12.3 mm
Dimension: Height
  • 14 mm
Weight
  • 6 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 125 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 40 A
Contact: Switching Voltage, max. DC
  • 14 V DC
Contact: Inrush current
  • 40 A
Contact: Carry Current
  • 80 A
Contact: Switching Load (W)
  • 560 W
Coil design
  • monostable
Coil resistance
  • 167 Ohm
Inductor power
  • 860 mW
Coil: Nominal Voltage DC
  • 12 V DC
Coil: Pick-up voltage
  • 7.3 V
Coil: Drop-out Voltage
  • 1 V
Test voltage open contacts
  • 500 V AC
Test voltage coil/contact
  • 500 V AC
Response time
  • 10 ms
Drop-out time
  • 5 ms
Insulation resistance
  • 100 MOhm
Vibration resistance
  • 4,5 g
Impact resistance, functional
  • 100 m/s²
