FBR51NL210-W1-RW
FCL Components Automotive relay FBR51 SPDT 35A 10VDC 90Ohm 15,5mmx12,1mmx13,7mm RTIII
%
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.800 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- FBR51
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 35 A
- Coil: Nominal Voltage DC
- 10 V DC
- Coil resistance
- 90 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

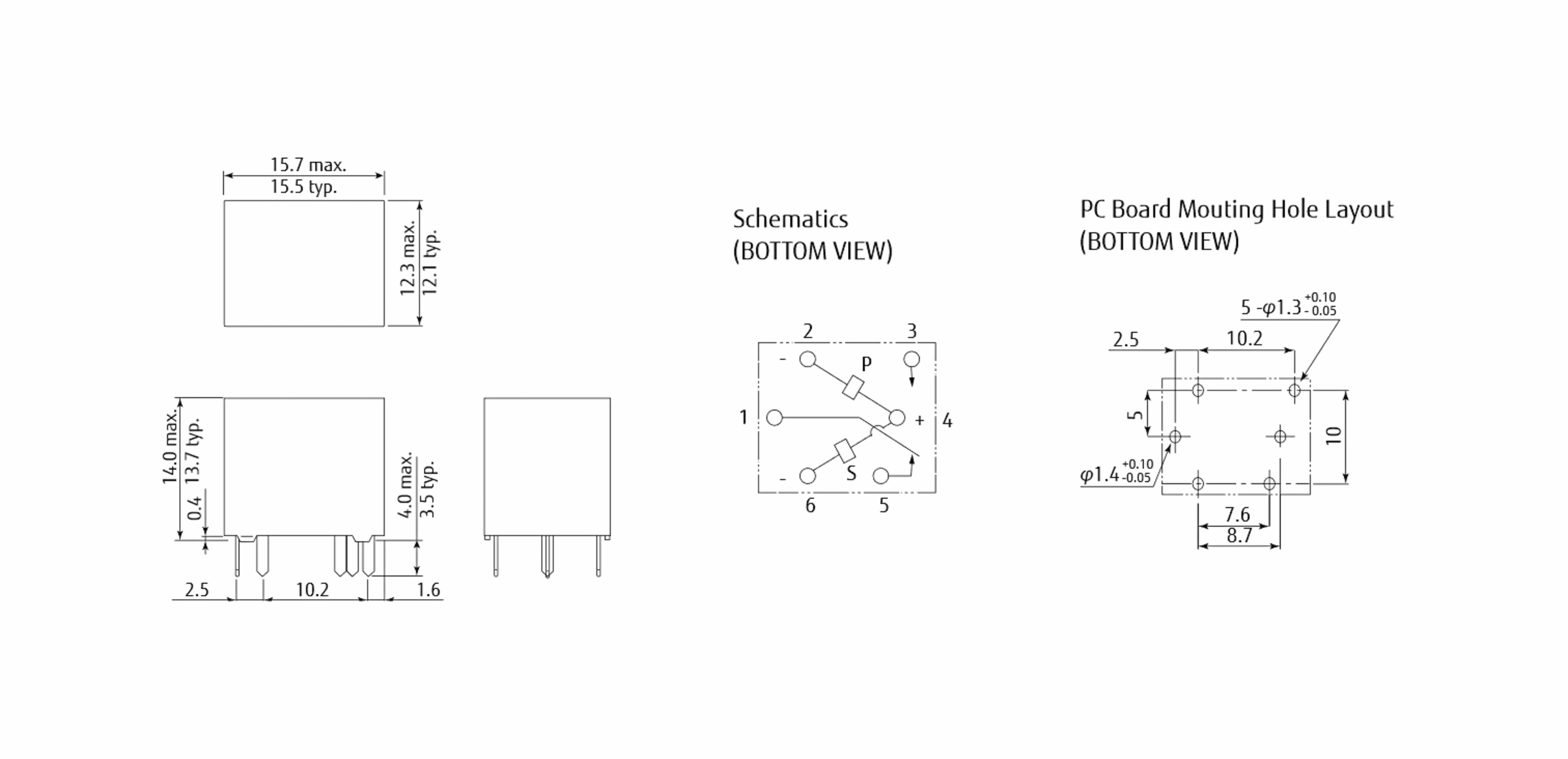

Dimensions and Weights
- Dimension: Length
- 15.5 mm
- Dimension: Width
- 12.1 mm
- Dimension: Height
- 13.7 mm
- Weight
- 6 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 35 A
- Contact: Switching Voltage, max. DC
- 16 V DC
- Contact: Inrush current
- 60 A
- Contact: Carry Current
- 30 A
- Contact: Switching Load (W)
- 560 W
- Coil design
- bistable
- Coil resistance
- 90 Ohm
- Coil: Nominal Voltage DC
- 10 V DC
- Coil: Pick-up voltage
- 6.3 V
- Coil: Drop-out Voltage
- 6.3 V
- Test voltage open contacts
- 500 V AC
- Test voltage coil/contact
- 500 V AC
- Response time
- 5 ms
- Drop-out time
- 5 ms
- Insulation resistance
- 100 MOhm
- Vibration resistance
- 4,5 g
- Impact resistance, functional
- 100 m/s²
Safety/Certifications
- Protection class RT
- RTIII
Documents
PCN_RLPCN234801 All Relays marking change_EN.pdf
