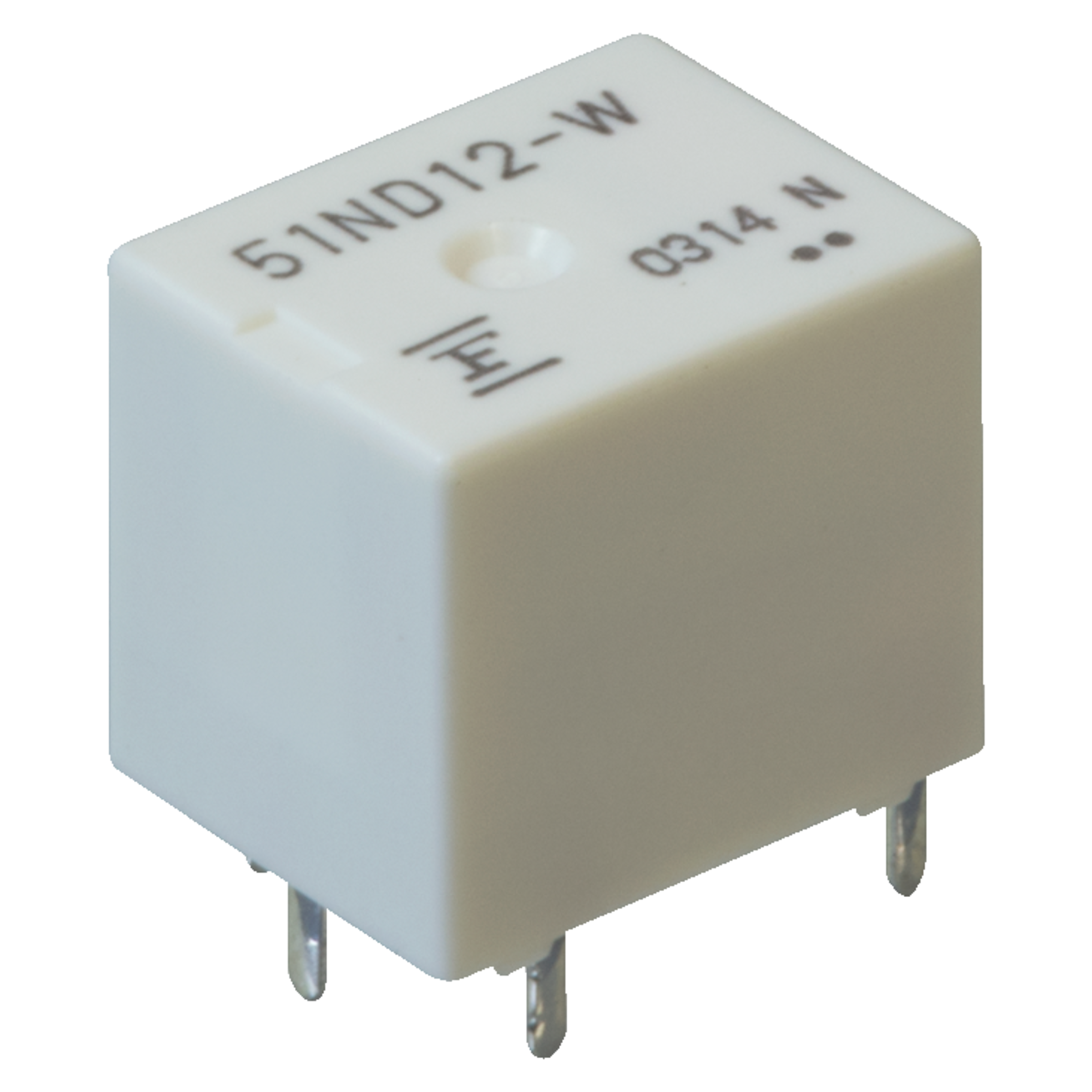

FBR51ND12-W1
FCL Components Automotive relay FBR51 SPDT 25A 12VDC 240Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
675 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 360 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Automotive relay
- Series
- FBR51
- Rated voltage DC
- 12 V DC
- Switching current
- 25 A
- contacts
- SPDT
- Coil resistance
- 240 Ohm
- Dimension: Length
- 15.5 mm
- Dimension: Width
- 12.1 mm
- Dimension: Height
- 13.7 mm
- RoHS-Conform
Specifications
Open all

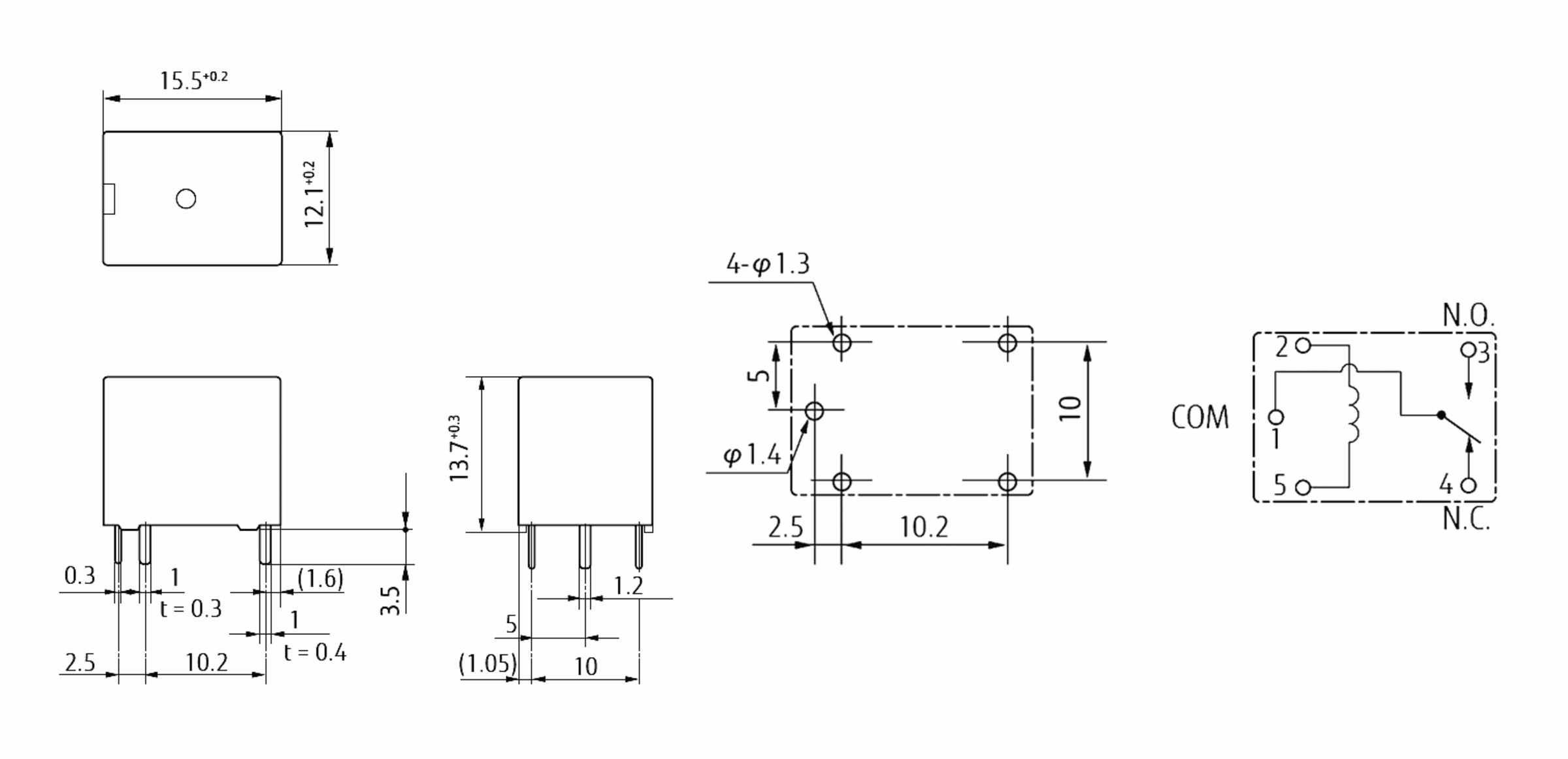

Dimensions and weights
- Dimension: Length
- 15.5 mm
- Dimension: Width
- 12.1 mm
- Dimension: Height
- 13.7 mm
- Weight
- 6 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. DC
- 16 V DC
- Response voltage
- 7.6 V
- Drop-out voltage
- 1 V
- Test voltage open contacts
- 500 V AC
- Test voltage coil/contact
- 500 V AC
- Switching current
- 25 A
- Transport Current
- 30 A
- Coil resistance
- 240 Ohm
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 4,5 G
- Impact resistance, functional
- 100 m/s²
