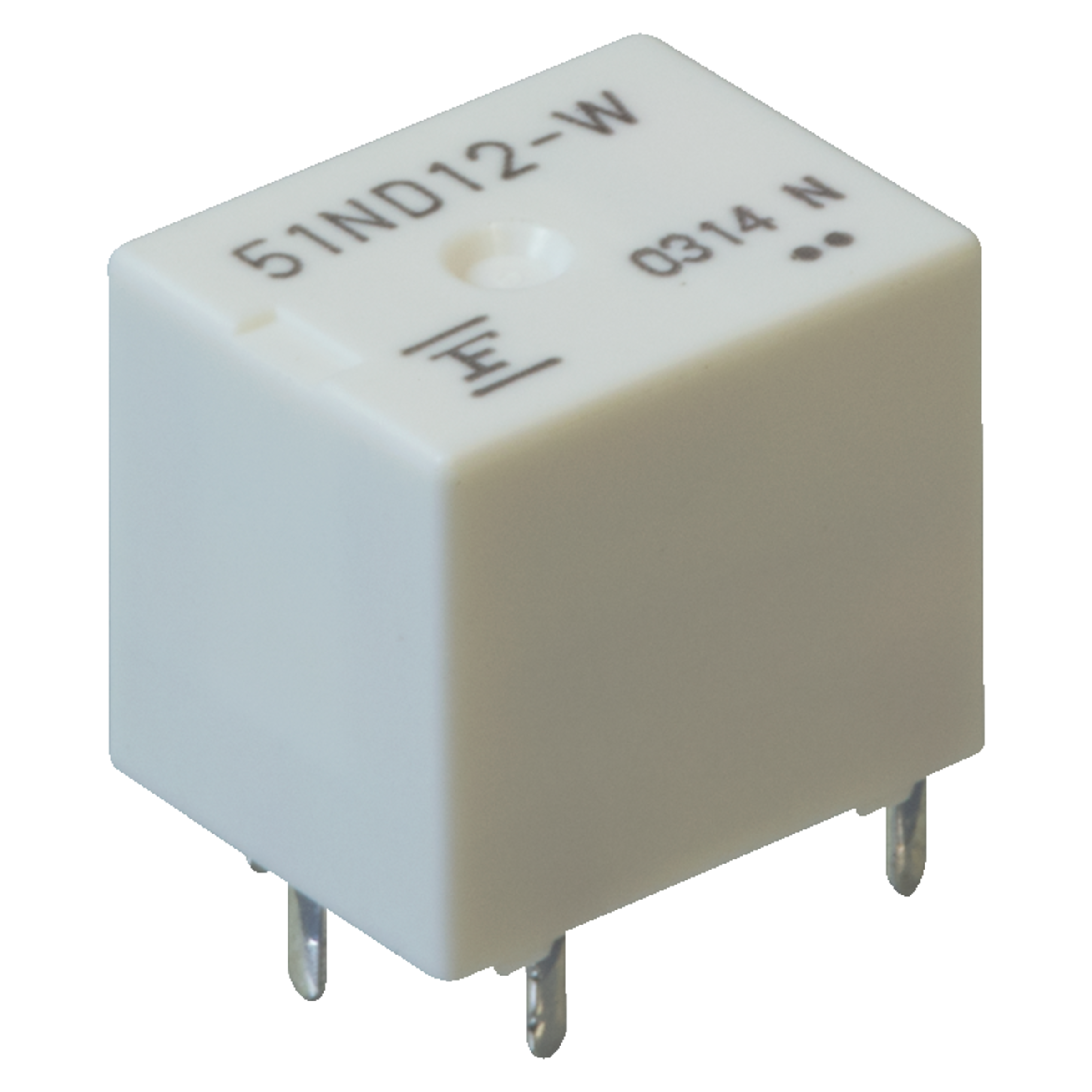

FBR51ND10-W1
FCL Components Automotive relay FBR51 SPDT 25A 9VDC 180Ohm 15,5mmx12,1mmx13,7mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 27/2026
680 Pcs.
680 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 360 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- FBR51
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 25 A
- Coil: Nominal Voltage DC
- 9 V DC
- Coil resistance
- 180 Ohm
- RoHS-Conform
Specifications
Open all

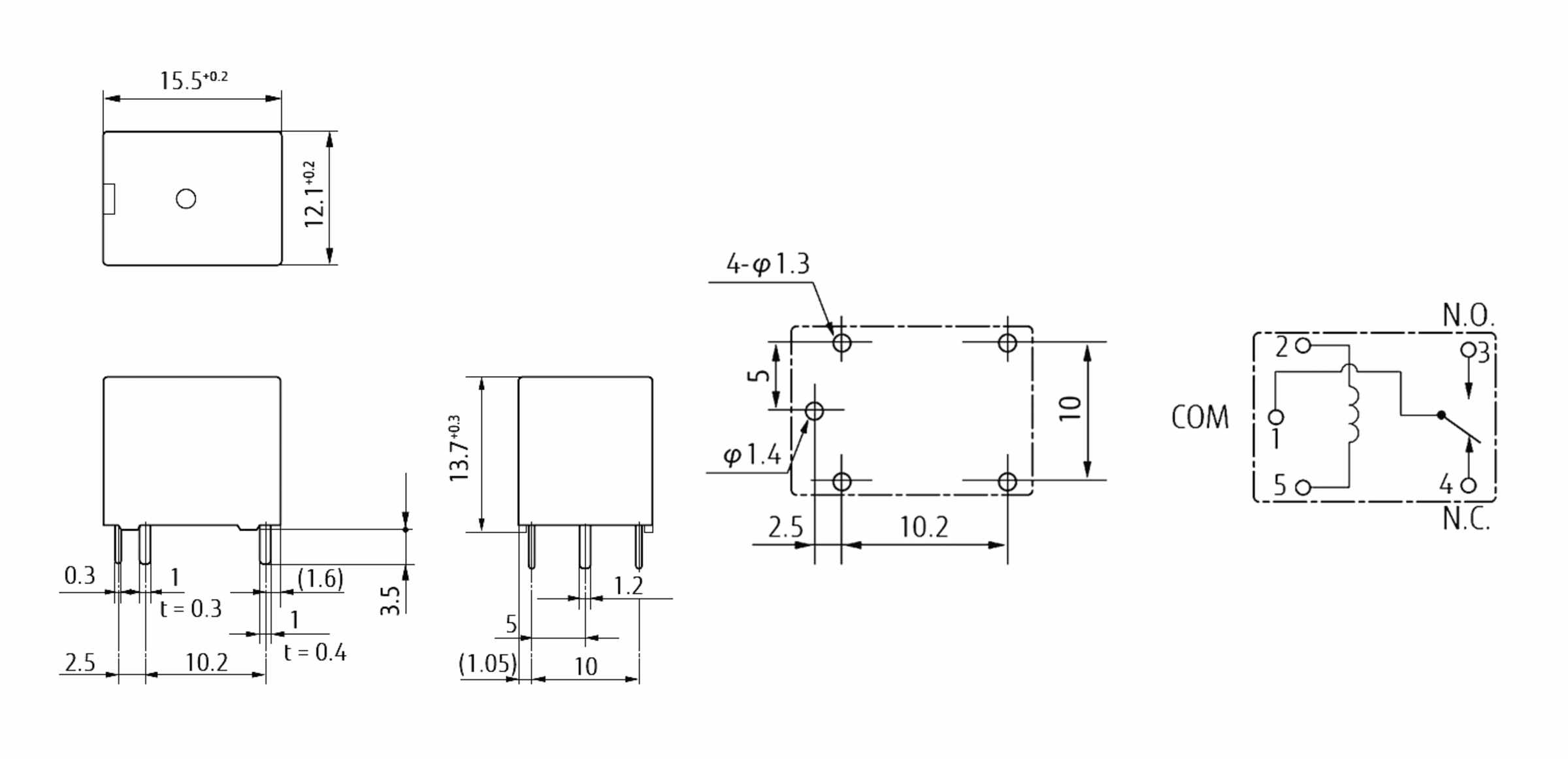

Dimensions and Weights
- Dimension: Length
- 15.5 mm
- Dimension: Width
- 12.1 mm
- Dimension: Height
- 13.7 mm
- Weight
- 6 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 25 A
- Contact: Switching Voltage, max. DC
- 16 V DC
- Contact: Inrush current
- 60 A
- Contact: Carry Current
- 30 A
- Contact: Switching Load (W)
- 560 W
- Coil design
- monostable
- Coil resistance
- 180 Ohm
- Coil: Nominal Voltage DC
- 9 V DC
- Coil: Pick-up voltage
- 6.3 V
- Coil: Drop-out Voltage
- 0.8 V
- Test voltage open contacts
- 500 V AC
- Test voltage coil/contact
- 500 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 4,5 g
- Impact resistance, functional
- 100 m/s²
Documents
PCN_RLPCN234801 All Relays marking change_EN.pdf
