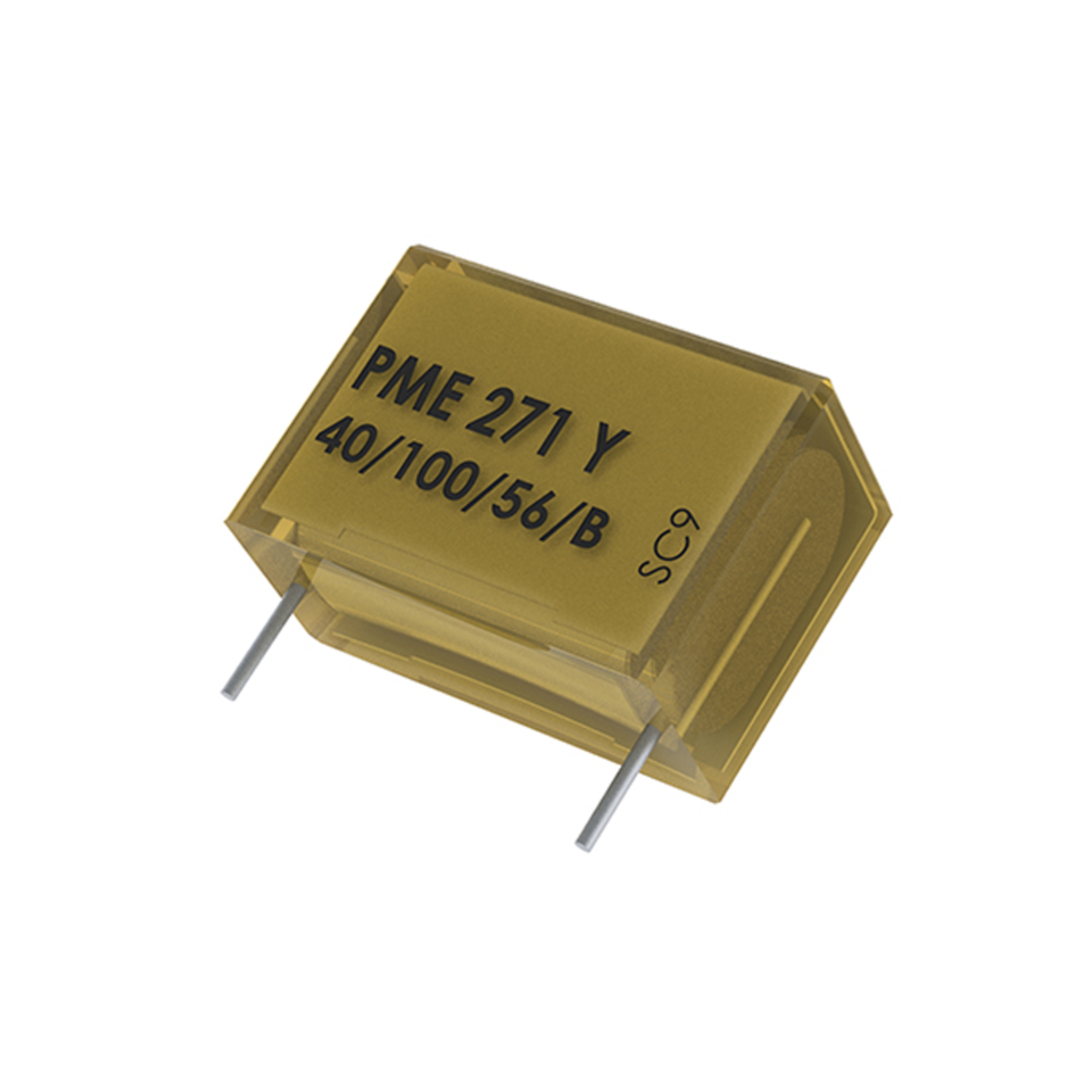

PME271YB4680MR30
Evox Rifa THT MP suppression capacitor PME271Y radial 300V 6,8nF Y2 RM15,2mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
480 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MP suppression capacitor
- Class
- Y2
- Dielectric
- Metallized paper
- Capacity
- 6,8 nF
- Capacity Tolerance
- ±20%
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 15.2 mm
- RoHS-Conform
Specifications
Open all

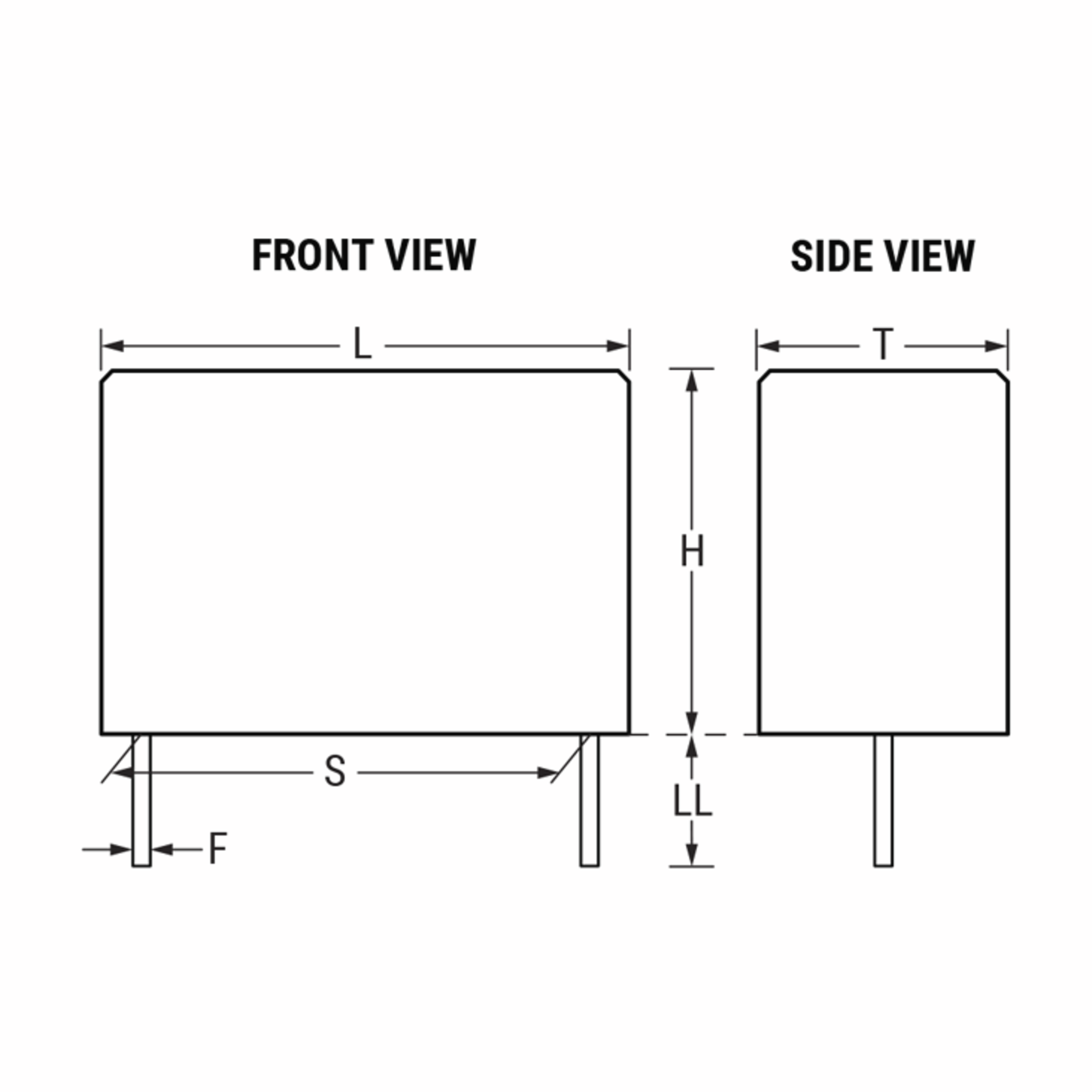

Dimensions and Weights
- Dimension: Length
- 18.5 mm
- Dimension: Width
- 5.2 mm
- Dimension: Height
- 10.5 mm
- Pitch
- 15.2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 115 °C
- Climate category IEC
- 40/110/56
Technical Features
- Capacity
- 6,8 nF
- Capacity
- 6.8
- Capacity unit
- nF
- Capacity Tolerance
- ±20%
- Loss factor tan δ
- 1,3 %
- Rated voltage AC
- 300 V
- Pulse behaviour
- 1,400 V²/µs
- Class
- Y2
- Insulation resistance
- 12.000 MOhm
Safety/Certifications
- Approvals
- CQC
- ENEC
- cULus
- Standards
- EN/IEC 60384-14, UL60384-14, CAN/CSA-EE60384-14-09
