PME271Y422MR30

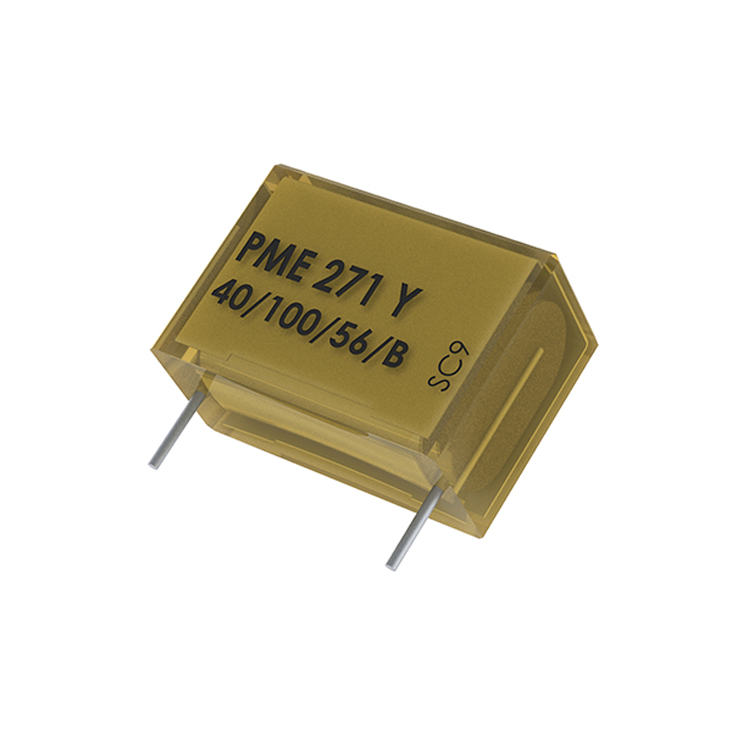

Evox Rifa THT MP suppression capacitor PME271Y radial 250V 2,2nF 20% RM10,2mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
3.000 Pcs.
3.000 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3000 or multiple of 3000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MP suppression capacitor
- Class
- Capacity
- 2,2 nF
- Capacity tolerance
- 20 %
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 10.2 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 13.5 mm
- Dimension: Width
- 3.9 mm
- Dimension: Height
- 7.5 mm
- Pitch
- 10.2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 100 °C
- Climate category IEC
- 40/110/56
Technical features
- Capacity
- 2,2 nF
- Capacity
- 2.2
- Capacity unit
- nF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 1,3 %
- Rated voltage AC
- 250 V
- Pulse behaviour
- 2,000 V²/µs
- Class
- Insulation resistance
- 12.000 MOhm
Safety/Certifications
- Approvals
- CQC
- ENEC
- cULus
- Standards
- EN/IEC 60384-14, UL60384-14, CAN/CSA-EE60384-14-09
