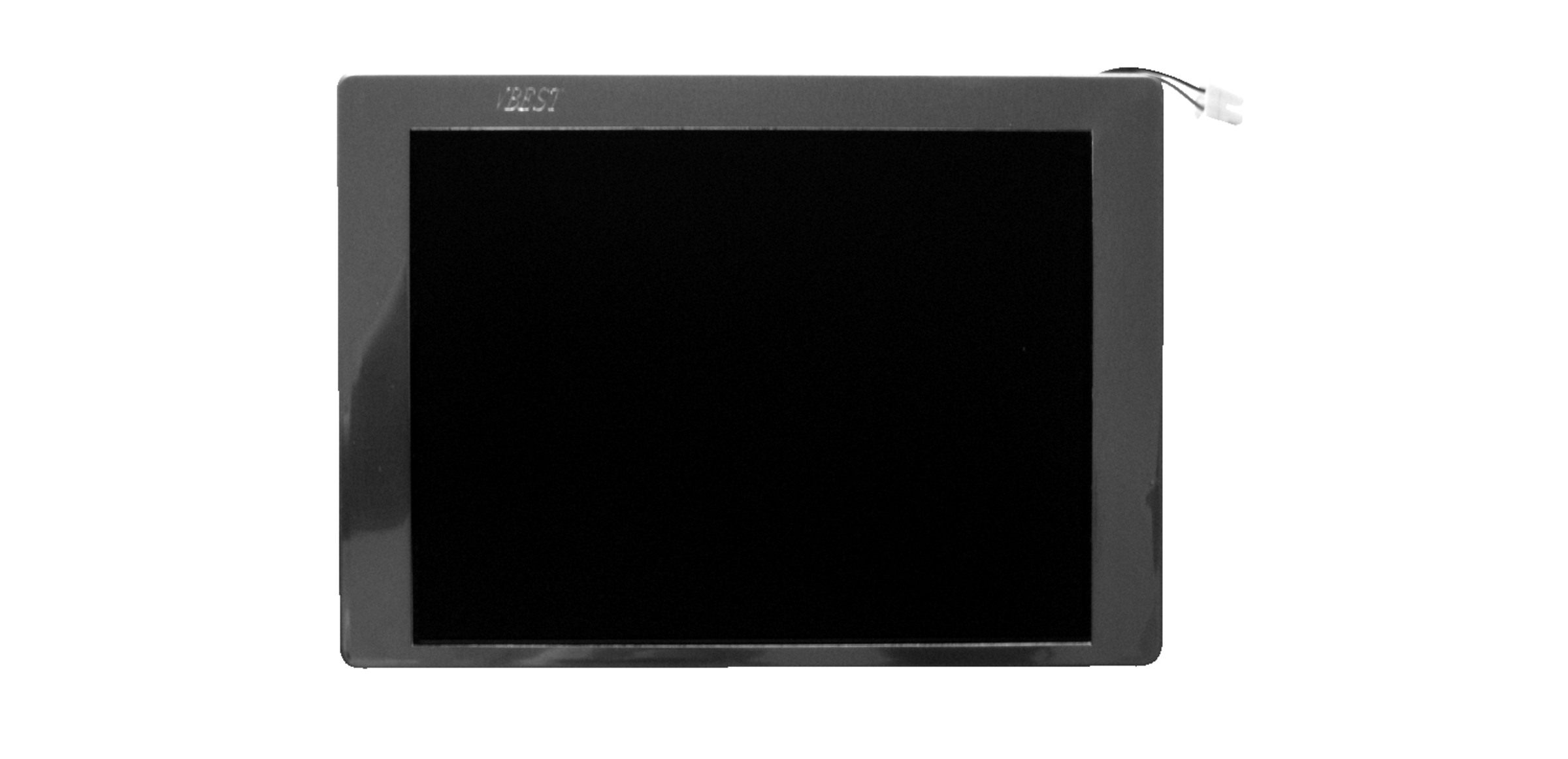

VGG804822-6UFLWG
Evervision LCD Graphic Module TFT 800x480 LED white 425 cd/m2
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 25.11.2023
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- LCD Graphic Module
- Touch Panel
- Projective Touch
- Resolution (Pixel)
- 800x480
- Display Interface
- LVDS
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- (Uf) Forward Voltage
- 9.9 V
- (If) Forward Current
- 200 mA
- Backlight Type
- LED
- Backlight Colour
- white
- Backlight Brightness
- 425 cd/m2
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical Properties
- (Uf) Forward Voltage
- 9.9 V
- (If) Forward Current
- 200 mA
- Backlight Type
- LED
- Display Controller
- THC63LVDF84B
- Display Interface
- LVDS
- Resolution (Pixel)
- 800x480
- Touch Panel
- Projective Touch
- Screen Diagonal
- 7 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 3 V
- Backlight Colour
- white
- Supply Voltage Max.
- 3.6 V
- Backlight Brightness
- 425 cd/m2
- Expected Lifetime
- 50,000 h
- Pixel Width
- 0.064 mm
- Pixel Heigth
- 0.191 mm
