VGG322403-7UFLWE

Evervision LCD Graphic Module TFT 320x240 LED white 380 cd/m2

VGG322403-7UFLWE
Manufacturer Part No.
VGG322403-7UFLWE
Schukat Part No.
VGG322403-7UFLWE
Manufacturer
Evervision
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 17.12.2022
Discontinued by manufacturer without replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Touch Panel
No Touch
Resolution (Pixel)
320x240
Display Interface
18-Bit-RGB
Supply Voltage Min.
3 V
Supply Voltage Max.
3.6 V
(Uf) Forward Voltage
23.1 V
(If) Forward Current
60 mA
Backlight Type
LED
Backlight Colour
white
Backlight Brightness
380 cd/m2
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Evervision
Type
  • LCD Graphic Module
Series
  • VGG_UFLW_
Product group
  • W6885
  • W6885
Module Width
  • 144 mm
Module Height
  • 104.6 mm
Module Thickeness
  • 13 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Electrical Properties

(Uf) Forward Voltage
  • 23.1 V
(If) Forward Current
  • 60 mA
Backlight Type
  • LED
Display Interface
  • 18-Bit-RGB
Resolution (Pixel)
  • 320x240
Touch Panel
  • No Touch
Screen Diagonal
  • 5.7 ''
Display-Technology
  • TFT
Supply Voltage Min.
  • 3 V
Backlight Colour
  • white
Supply Voltage Max.
  • 3.6 V
Backlight Brightness
  • 380 cd/m2
Expected Lifetime
  • 40,000 h
Pixel Width
  • 0.12 mm
Pixel Heigth
  • 0.36 mm

Other Products

All Products of the Series
Loading...

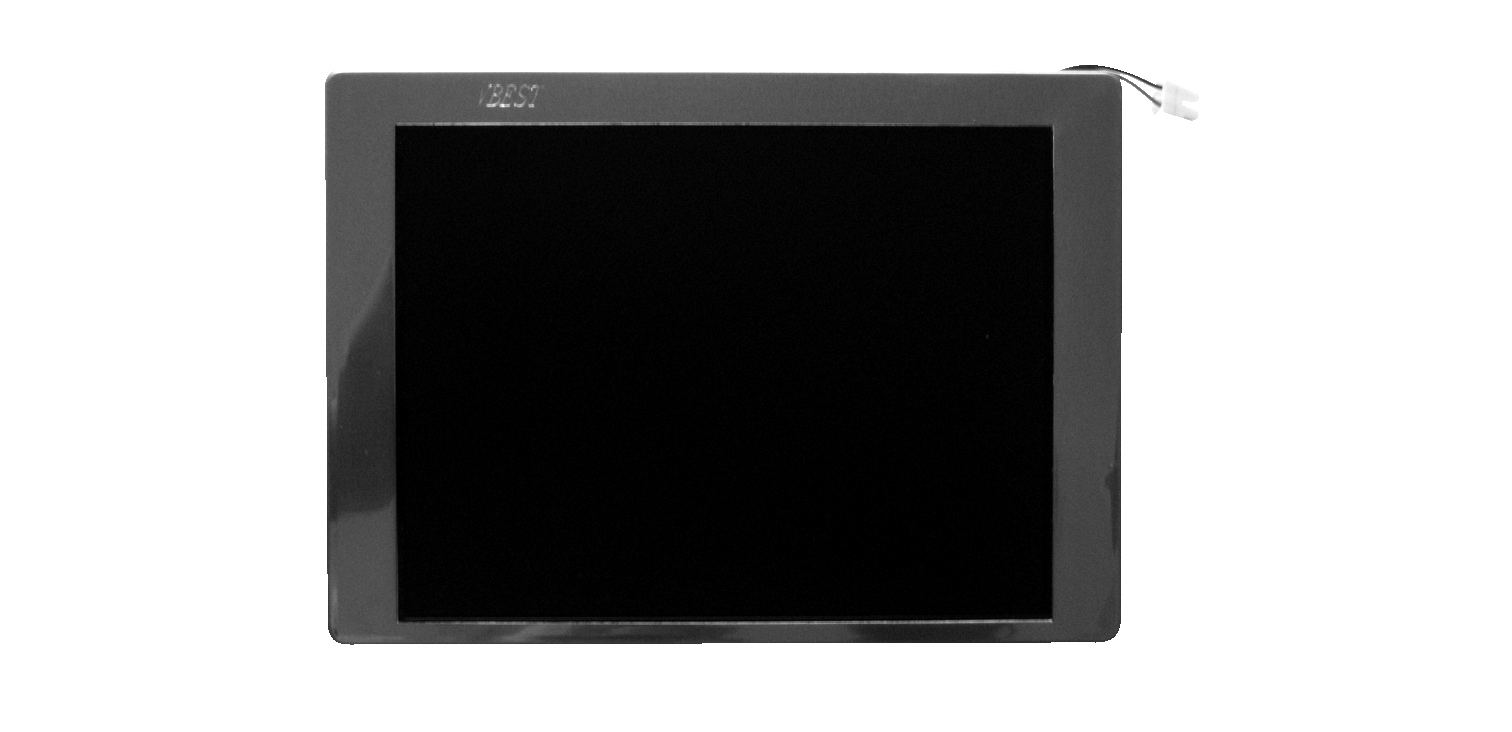

VGG322403-7UFLWF
