PT5529B/L2-F

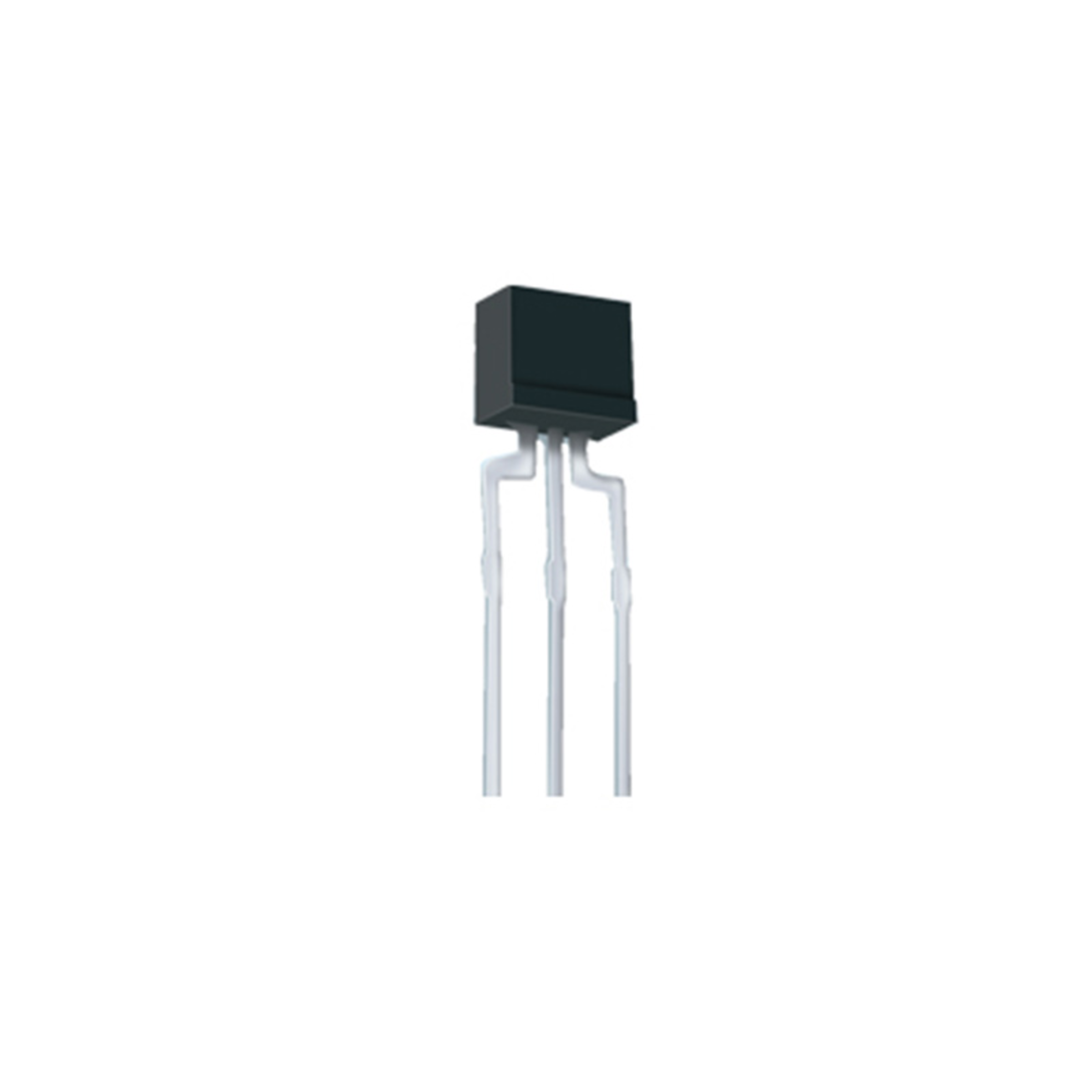

Everlight THT Phototransistor 100nA 940nm 30V SideView

Manufacturer Part No.
PT5529B/L2-F
Schukat Part No.
ELPT5529B/L2-F
Manufacturer
Everlight
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

950 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Everlight
Type
  • Phototransistor
Series
  • PT5529
Product group
  • X3723 EVERLIGHT Phototransistors ELPT_
Packaging
  • Boxed
Assembly Type
  • THT
Manufacturer Package
  • Side View

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 85 °C

Electrical properties

(UCEO) Collector Emitter Voltage
  • 30 V
(IC) Collector Current
  • 0.129 mA
Dark Current
  • 100 nA
Wavelength Of Peak Sensitivity
  • 940 Nm
(tr) Rise Time
  • 15 µs
(Pd) Power Dissipation
  • 75 mW
(tf) Fall Time
  • 15 µs
Lens Colour
  • black
