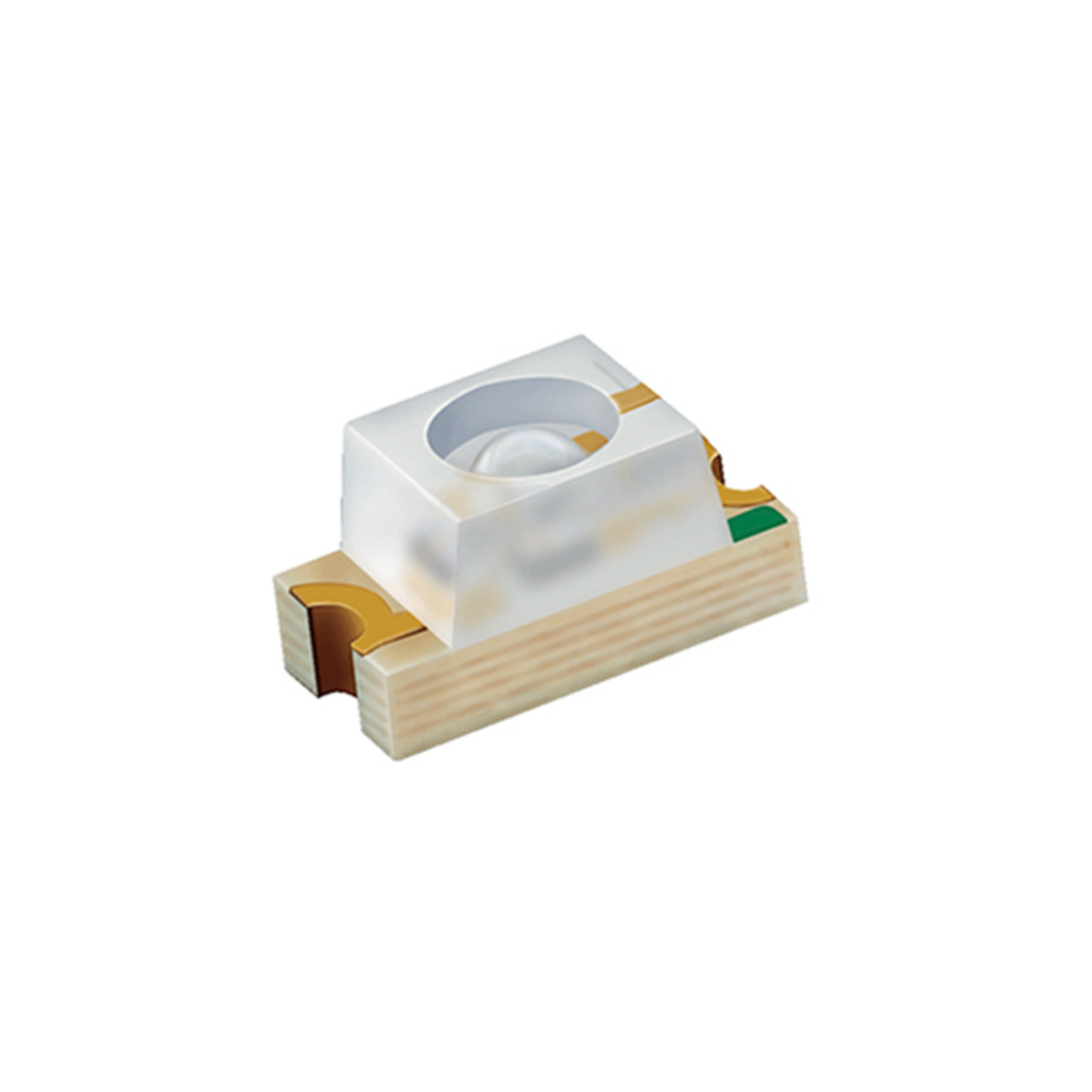

PT11-21C/L41/TR8

Everlight SMD/SMT Phototransistor 100nA 940nm 30V 1206

Manufacturer Part No.
PT11-21C/L41/TR8
Schukat Part No.
ELPT11-21C/L41
Manufacturer
Everlight
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

2.500 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Everlight
Type
  • Phototransistor
Series
  • PT11
Product group
  • X3727 EVERLIGHT SMD Phototransistors ELPT_
Packaging
  • Reel
Assembly Type
  • SMD/SMT
Manufacturer Package
  • 1206

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 85 °C

Electrical properties

(UCEO) Collector Emitter Voltage
  • 30 V
(IC) Collector Current
  • 0.3 mA
Dark Current
  • 100 nA
Wavelength Of Peak Sensitivity
  • 940 Nm
(tr) Rise Time
  • 15 µs
(Pd) Power Dissipation
  • 75 mW
(tf) Fall Time
  • 15 µs
