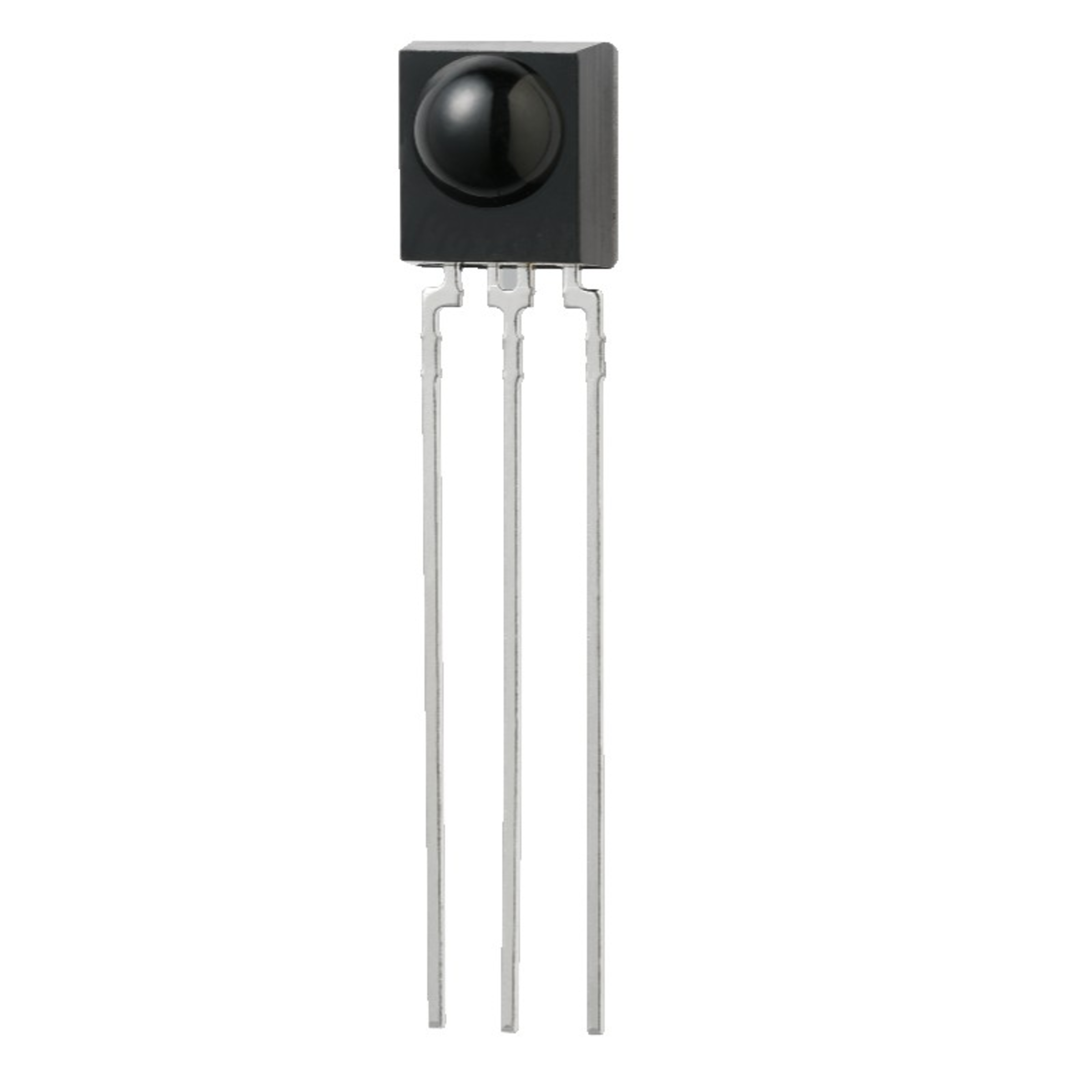

IRM-3638M3

Everlight Infrarot Receiver 38 khz 0,6 mA

Manufacturer Part No.
IRM-3638M3
Schukat Part No.
ELIRM3638M3
Manufacturer
Everlight
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

5.000 Pcs. in stock

Planned delivery time
Ø 42 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
2.7 V
Supply Voltage Max.
5.5 V
Carrier Frequency
38 kHz
Supply Current Max.
0.6 mA
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Everlight
Type
  • Infrarot Receiver
Series
  • ELIRM
Product group
  • X4725 EVERLIGHT Infrared Receivers for Remote Control Systems ELIR
Packaging
  • Boxed
Assembly Type
  • THT
Pin Count
  • 3
Features

  • Infrared receiver for detecting signals from infrared remote control systems, consisting of photodiode, preamplifier, automatic gain control, bandpass filter and demodulator. The black colored housing is used to suppress the influence of daylight.

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 80 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Electrical properties

Carrier Frequency
  • 38 kHz
Supply Voltage Min.
  • 2.7 V
Supply Voltage Max.
  • 5.5 V
Supply Current Max.
  • 0.6 mA
