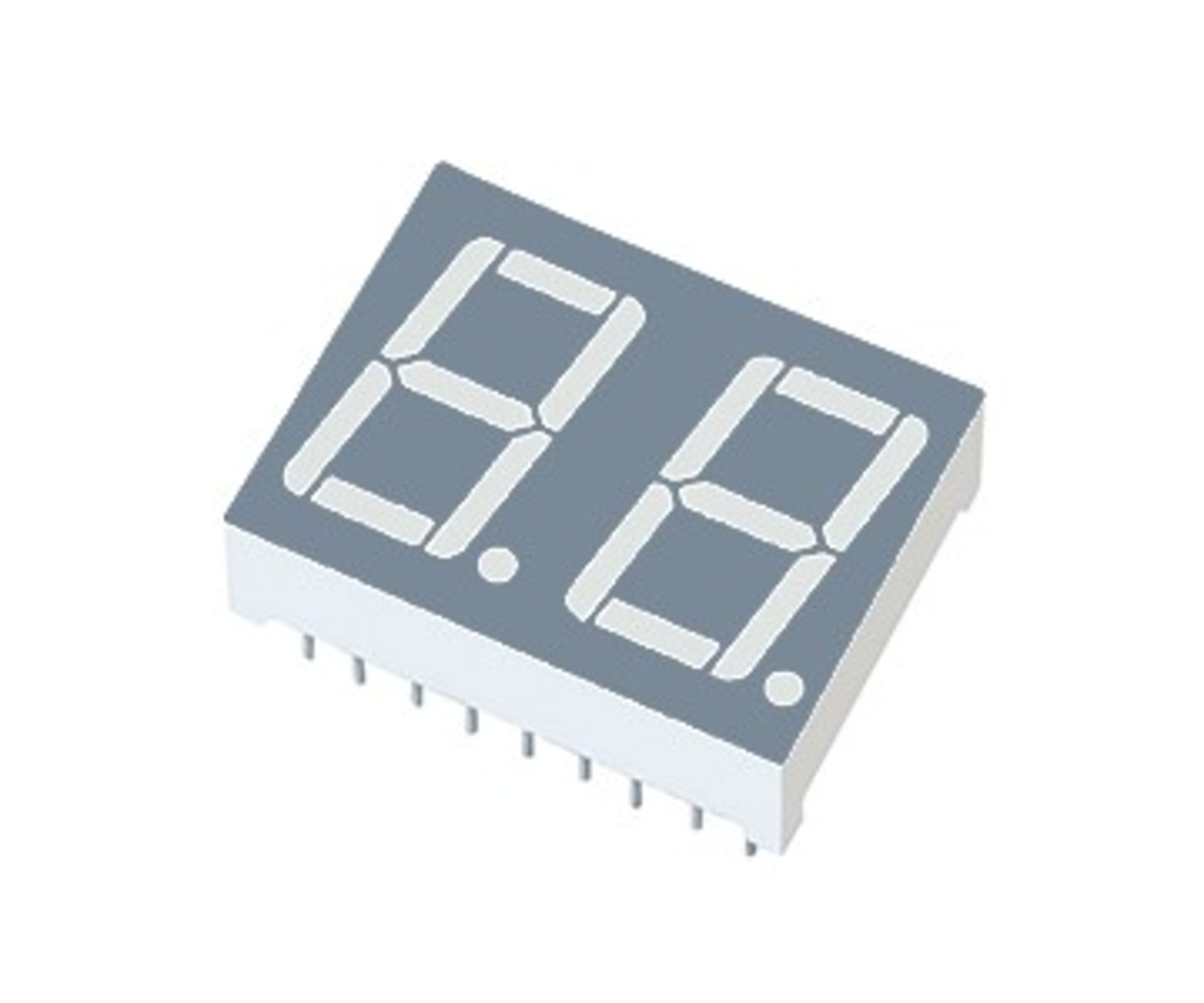

D511SYGWA/S530-E2
Everlight THT 7-Segment LED Display 2 Digit yellow, green
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
140 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Characters
- 2 Digit
- Lighting Colour
- yellow, green
- Light Intensity
- 6.4 mcd
- Character Heigth
- 14.22 mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- (Uf) Forward Voltage
- 2 V
- Characters
- 2 Digit
- (If) Forward Current
- 20 mA
- Lighting Colour
- yellow, green
- Peak Emission Wavelength
- 575 Nm
- (Ur) Reverse Voltage Min.
- 5 V
- Configuration
- Common Cathode
- Light Intensity
- 6.4 mcd
- Character Heigth
- 14.22 mm
