A764B/SDRSYGUY/S53-3

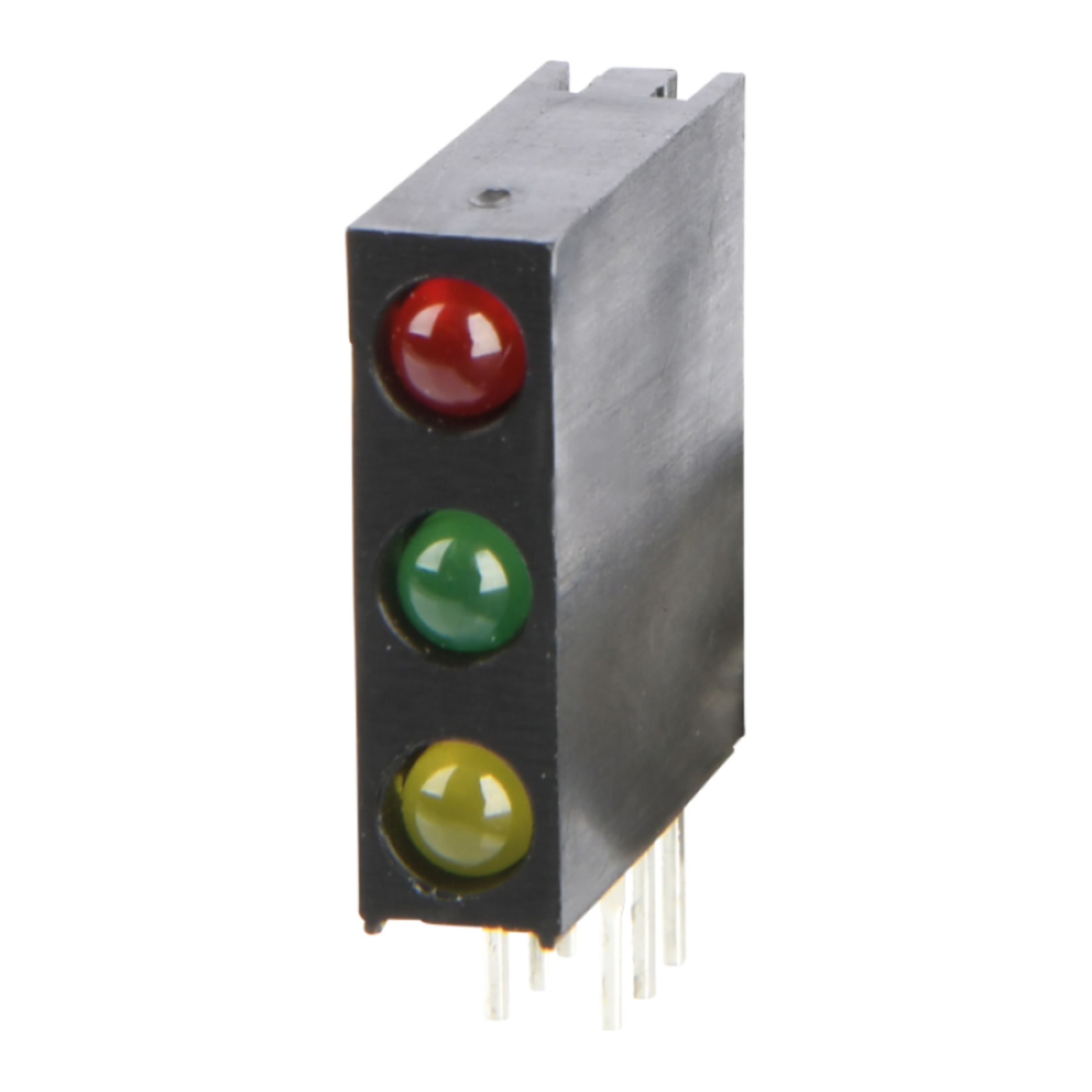

Everlight THT LED PCB Indicator red, green,yellow 80mcd/50mcd/80mcd 60°/60°/60° 2V/2V/2V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.800 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 160 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- red, green,yellow
- Lens Tranparency
- diffuse
- Luminous Intensity Max. (colour1/colour2/colour3)
- 80 mcd / 50 mcd / 80 mcd
80 mcd / 50 mcd / 80 mcd - Viewing Angle (colour1/colour2/colour3)
- 60 ° / 60 ° / 60 °
60 ° / 60 ° / 60 ° - (Uf) Forward Voltage (1/2/3)
- 2 V / 2 V / 2 V
2 V / 2 V / 2 V - (If) Forward Current (colour1/colour2/colour3)
- 20 mA / 20 mA / 20 mA mA
20 mA / 20 mA / 20 mA mA - Peak Emission Wavelength (colour1/colour2/colour3)
- 650 nm / 575 nm / 591 nm
650 nm / 575 nm / 591 nm - Dominant Wavelength Max. (1/2/3)
- 639 nm / 573 nm / 589 nm
639 nm / 573 nm / 589 nm - (Pd) Power Dissipation (colour1/colour2/colour3)
- 60 mW / 60 mW / 60 mW
60 mW / 60 mW / 60 mW - RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 100 °C
Electrical properties
- (Uf) Forward Voltage (colour1)
- 2 V
- (Uf) Forward Voltage (colour2)
- 2 V
- (Uf) Forward Voltage (colour3)
- 2 V
- (Uf) Forward Voltage (1/2/3)
- 2 V / 2 V / 2 V
- 2 V / 2 V / 2 V
- (If) Forward Current (colour1)
- 20 mA
- (If) Forward Current (colour2)
- 20 mA
- (If) Forward Current (colour3)
- 20 mA
- (If) Forward Current (colour1/colour2/colour3)
- 20 mA / 20 mA / 20 mA mA
- 20 mA / 20 mA / 20 mA mA
- Lighting Colour
- red, green,yellow
- Viewing Angle (colour1)
- 60 °
- Viewing Angle (colour2)
- 60 °
- Viewing Angle (colour3)
- 60 °
- Viewing Angle (colour1/colour2/colour3)
- 60 ° / 60 ° / 60 °
- 60 ° / 60 ° / 60 °
- Luminous Intensity Max. (colour1)
- 80 mcd
- Luminous Intensity Max. (colour2)
- 50 mcd
- Luminous Intensity Max. (colour3)
- 80 mcd
- Luminous Intensity Max. (colour1/colour2/colour3)
- 80 mcd / 50 mcd / 80 mcd
- 80 mcd / 50 mcd / 80 mcd
- Dominant Wavelength Max. (colour1)
- 639 Nm
- Dominant Wavelength Max. (colour2)
- 573 Nm
- Dominant Wavelength Max. (colour3)
- 589 Nm
- Dominant Wavelength Max. (1/2/3)
- 639 nm / 573 nm / 589 nm
- 639 nm / 573 nm / 589 nm
- Peak Emission Wavelength (colour1)
- 650 Nm
- Peak Emission Wavelength (colour2)
- 575 Nm
- Peak Emission Wavelength (colour3)
- 591 Nm
- Peak Emission Wavelength (colour1/colour2/colour3)
- 650 nm / 575 nm / 591 nm
- 650 nm / 575 nm / 591 nm
- (Pd) Power Dissipation (colour1)
- 60 mW
- (Pd) Power Dissipation (colour2)
- 60 mW
- (Pd) Power Dissipation (colour3)
- 60 mW
- (Pd) Power Dissipation (colour1/colour2/colour3)
- 60 mW / 60 mW / 60 mW
- 60 mW / 60 mW / 60 mW
- (Ur) Reverse Voltage (colour1)
- 5 V
- (Ur) Reverse Voltage (colour2)
- 5 V
- (Ur) Reverse Voltage (colour3)
- 5 V
- (Ur) Reverse Voltage (1/2/3)
- 5 V / 5 V / 5 V V
- 5 V / 5 V / 5 V V
- Lens Tranparency
- diffuse
