7383/V7C3-ARTA/MS

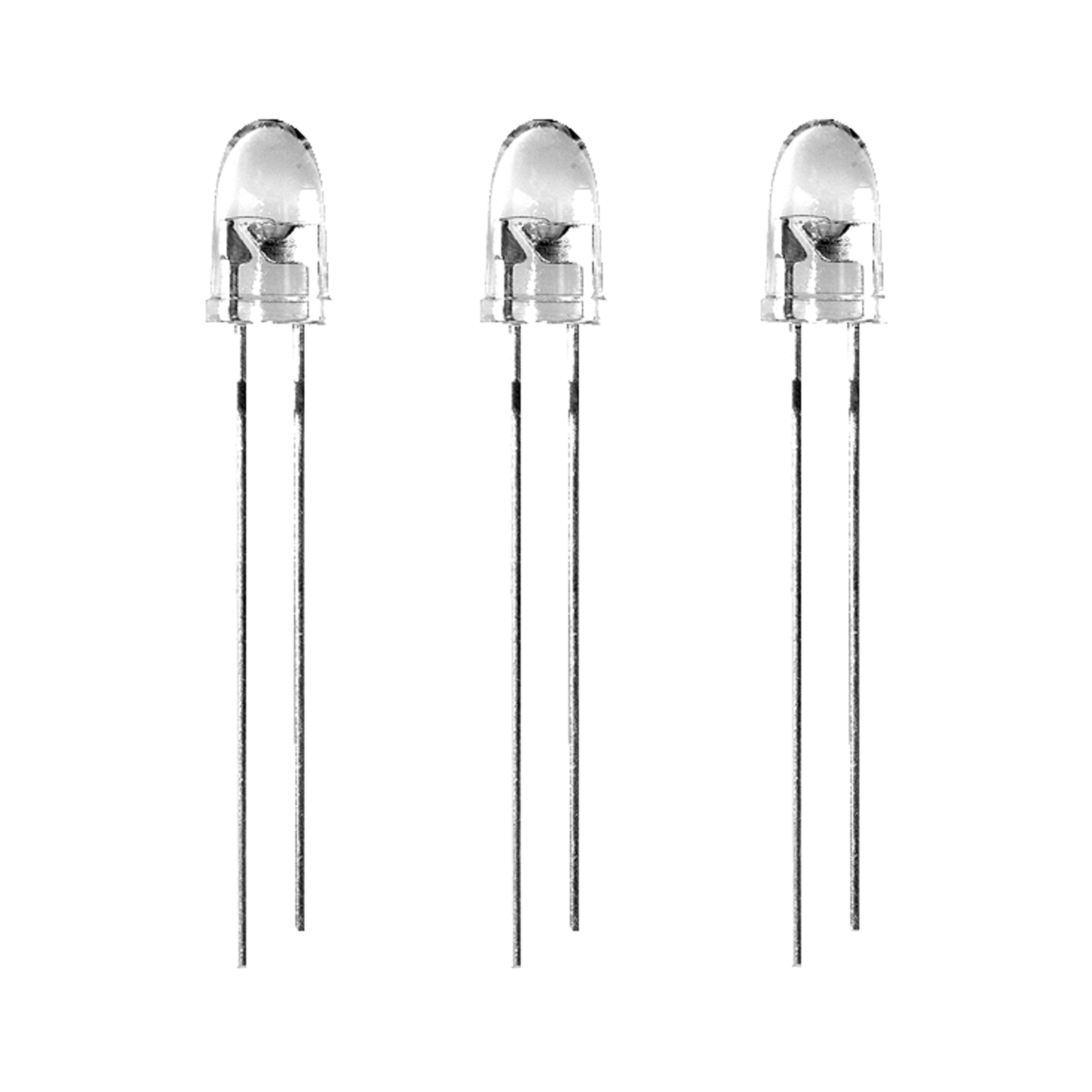

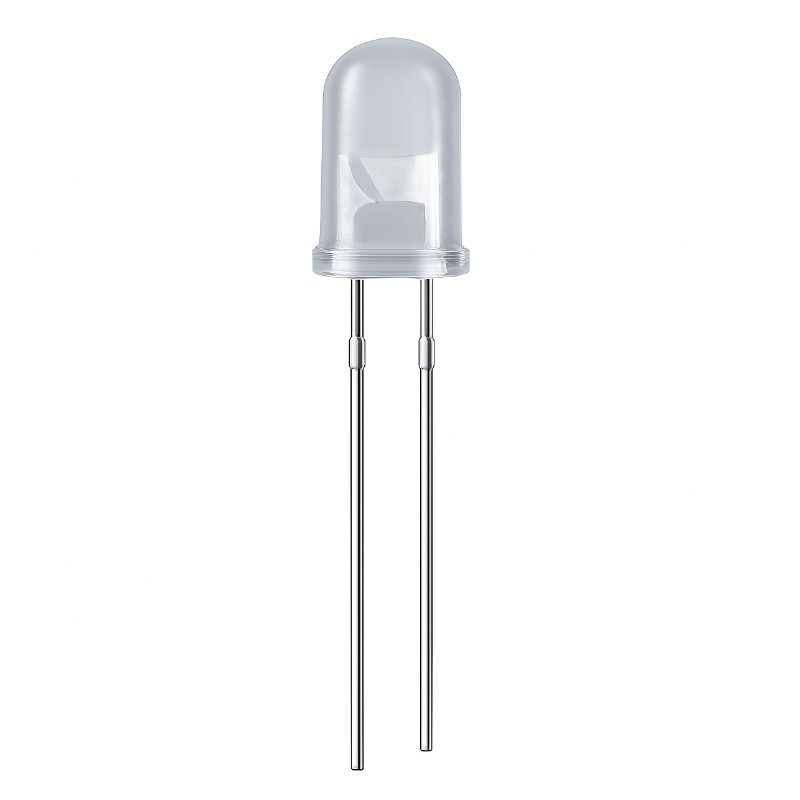

Everlight THT LED green clear round 6.300mcd 30° 5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 29.03.2023
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- green
- Luminous Intensity Max.
- 6,300 mcd
- Viewing Angle
- 30 °
- (If) Forward Current
- 20 mA
- Peak Emission Wavelength
- 502 nm
- Dominant Wavelength Max.
- 505 nm
- (Pd) Power Dissipation
- 120 mW
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 100 °C
Electrical Properties
- (If) Forward Current
- 20 mA
- (Ur) Reverse Voltage
- 5 V
- Lighting Colour
- green
- Viewing Angle
- 30 °
- Luminous Intensity Max.
- 6,300 mcd
- Dominant Wavelength Max.
- 505 nm
- Peak Emission Wavelength
- 502 nm
- (Pd) Power Dissipation
- 120 mW
- Lens Colour
- colorless
- Lens Tranparency
- clear
- Lens Shape
- round
