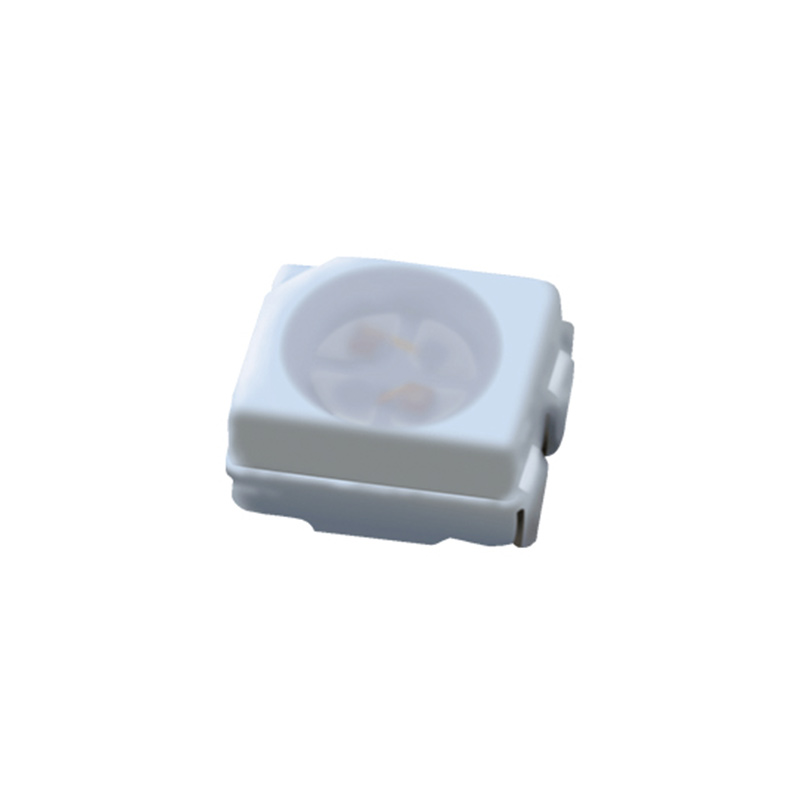

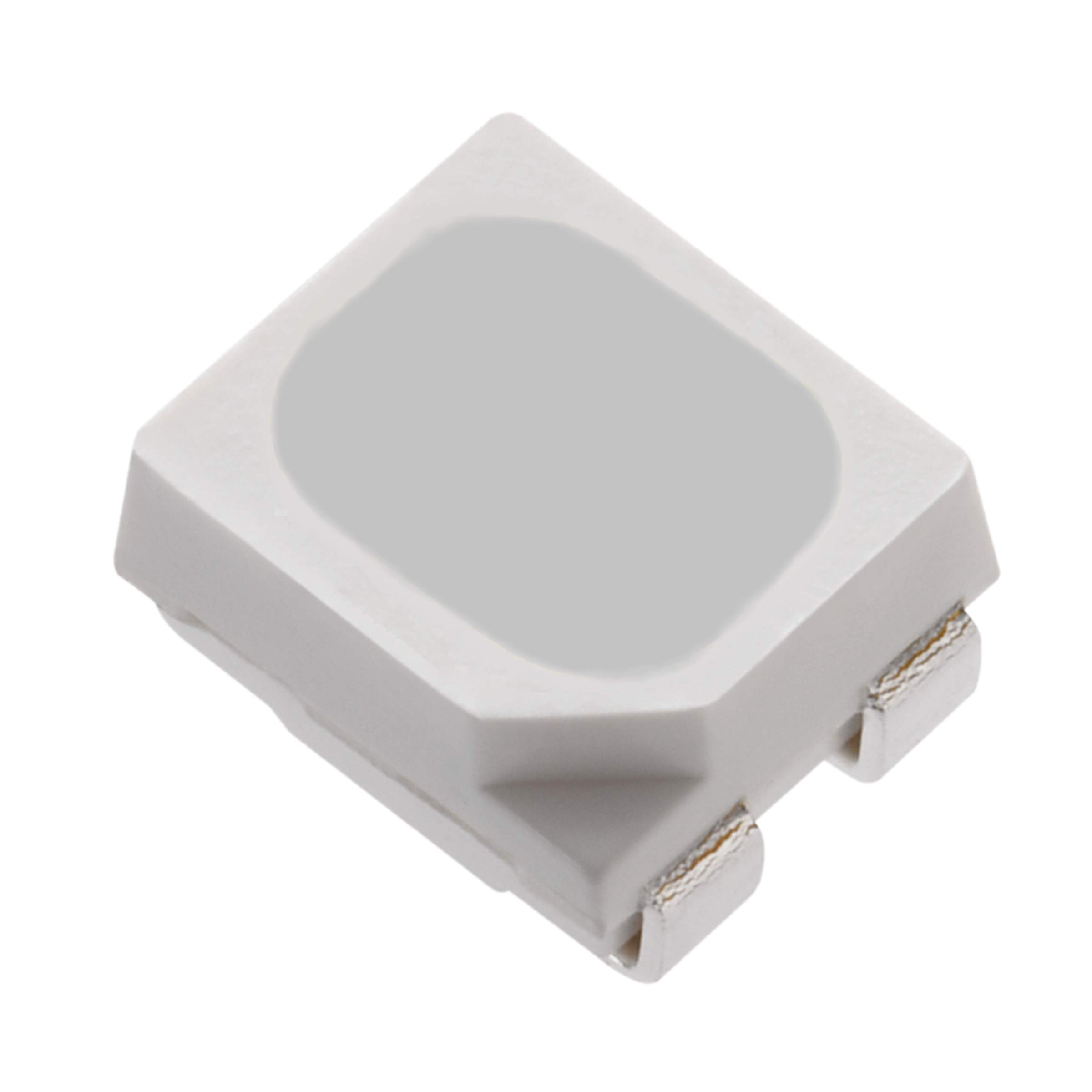

67-22/R6Y2C-B31/2T
Everlight SMD/SMT LED red, yellow clear 285mcd/285mcd/ 120°/120°/ 2,35V/2,35V/ PLCC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.000 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- red, yellow
- Luminous Intensity Max. (colour1/colour2/colour3)
- 285 mcd / 285 mcd /
285 mcd / 285 mcd / - Viewing Angle (colour1/colour2/colour3)
- 120 ° / 120 ° /
120 ° / 120 ° / - (Uf) Forward Voltage (1/2/3)
- 2,35 V / 2,35 V /
2,35 V / 2,35 V / - (If) Forward Current (colour1/colour2/colour3)
- 20 mA / 20 mA / mA
20 mA / 20 mA / mA - Peak Emission Wavelength (colour1/colour2/colour3)
- 632 nm / 591 nm /
632 nm / 591 nm / - Dominant Wavelength Max. (1/2/3)
- 631 nm / 594 nm /
631 nm / 594 nm / - (Pd) Power Dissipation (colour1/colour2/colour3)
- 60 mW / 60 mW /
60 mW / 60 mW / - Manufacturer Package
- PLCC
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 95 °C
Electrical properties
- (Uf) Forward Voltage (colour1)
- 2.35 V
- (Uf) Forward Voltage (colour2)
- 2.35 V
- (Uf) Forward Voltage (1/2/3)
- 2,35 V / 2,35 V /
- 2,35 V / 2,35 V /
- (If) Forward Current (colour1)
- 20 mA
- (If) Forward Current (colour2)
- 20 mA
- (If) Forward Current (colour1/colour2/colour3)
- 20 mA / 20 mA / mA
- 20 mA / 20 mA / mA
- Lighting Colour
- red, yellow
- Viewing Angle (colour1)
- 120 °
- Viewing Angle (colour2)
- 120 °
- Viewing Angle (colour1/colour2/colour3)
- 120 ° / 120 ° /
- 120 ° / 120 ° /
- Luminous Intensity Max. (colour1)
- 285 mcd
- Luminous Intensity Max. (colour2)
- 285 mcd
- Luminous Intensity Max. (colour1/colour2/colour3)
- 285 mcd / 285 mcd /
- 285 mcd / 285 mcd /
- Dominant Wavelength Max. (colour1)
- 631 Nm
- Dominant Wavelength Max. (colour2)
- 594 Nm
- Dominant Wavelength Max. (1/2/3)
- 631 nm / 594 nm /
- 631 nm / 594 nm /
- Peak Emission Wavelength (colour1)
- 632 Nm
- Peak Emission Wavelength (colour2)
- 591 Nm
- Peak Emission Wavelength (colour1/colour2/colour3)
- 632 nm / 591 nm /
- 632 nm / 591 nm /
- (Pd) Power Dissipation (colour1)
- 60 mW
- (Pd) Power Dissipation (colour2)
- 60 mW
- (Pd) Power Dissipation (colour1/colour2/colour3)
- 60 mW / 60 mW /
- 60 mW / 60 mW /
- (Ur) Reverse Voltage (colour1)
- 5 V
- (Ur) Reverse Voltage (colour2)
- 5 V
- (Ur) Reverse Voltage (1/2/3)
- 5 V / 5 V / V
- 5 V / 5 V / V
- Lens Colour
- colorless
- Lens Tranparency
- clear
