519-1SURSYGW/S530-A3

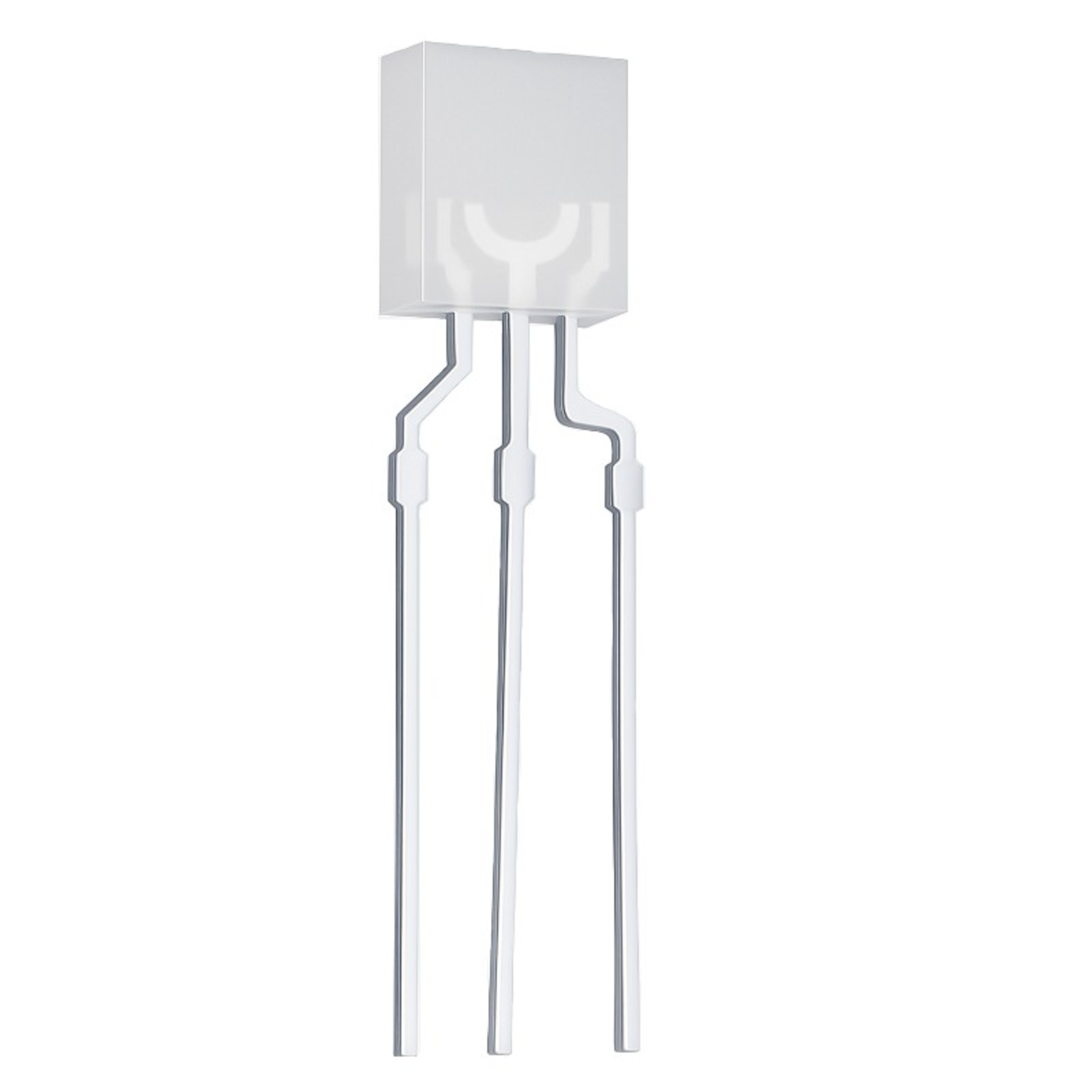

Everlight THT LED red, green diffuse Dome 12,5mcd/5mcd 180°/180° 2V/2V 2x5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
500 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- red, green
- Lens Tranparency
- diffuse
- Lens Shape
- Dome
- Luminous Intensity Max. (colour1/colour2/colour3)
- 12,5mcd / 5mcd
12,5mcd / 5mcd - Viewing Angle (colour1/colour2/colour3)
- 180° / 180°
180° / 180° - (Uf) Forward Voltage (1/2/3)
- 2V / 2V
2V / 2V - (If) Forward Current (colour1/colour2/colour3)
- 20mA / 20mA
20mA / 20mA - Peak Emission Wavelength (colour1/colour2/colour3)
- 632nm / 575nm
632nm / 575nm - Dominant Wavelength Max. (1/2/3)
- 624nm / 573nm
624nm / 573nm - (Pd) Power Dissipation (colour1/colour2/colour3)
- 60mW / 60mW
60mW / 60mW - Manufacturer Package
- 2x5mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 100 °C
Electrical Properties
- (Uf) Forward Voltage (colour1)
- 2 V
- (Uf) Forward Voltage (colour2)
- 2 V
- (Uf) Forward Voltage (1/2/3)
- 2V / 2V
- 2V / 2V
- (If) Forward Current (colour1)
- 20 mA
- (If) Forward Current (colour2)
- 20 mA
- (If) Forward Current (colour1/colour2/colour3)
- 20mA / 20mA
- 20mA / 20mA
- Lighting Colour
- red, green
- Viewing Angle (colour1)
- 180 °
- Viewing Angle (colour2)
- 180 °
- Viewing Angle (colour1/colour2/colour3)
- 180° / 180°
- 180° / 180°
- Luminous Intensity Max. (colour1)
- 12.5 mcd
- Luminous Intensity Max. (colour2)
- 5 mcd
- Luminous Intensity Max. (colour1/colour2/colour3)
- 12,5mcd / 5mcd
- 12,5mcd / 5mcd
- Dominant Wavelength Max. (colour1)
- 624 nm
- Dominant Wavelength Max. (colour2)
- 573 nm
- Dominant Wavelength Max. (1/2/3)
- 624nm / 573nm
- 624nm / 573nm
- Peak Emission Wavelength (colour1)
- 632 nm
- Peak Emission Wavelength (colour2)
- 575 nm
- Peak Emission Wavelength (colour1/colour2/colour3)
- 632nm / 575nm
- 632nm / 575nm
- (Pd) Power Dissipation (colour1)
- 60 mW
- (Pd) Power Dissipation (colour2)
- 60 mW
- (Pd) Power Dissipation (colour1/colour2/colour3)
- 60mW / 60mW
- 60mW / 60mW
- (Ur) Reverse Voltage (colour1)
- 5 V
- (Ur) Reverse Voltage (colour2)
- 5 V
- (Ur) Reverse Voltage (1/2/3)
- 5V / 5V
- 5V / 5V
- Lens Colour
- white
- Lens Tranparency
- diffuse
- Lens Shape
- Dome
