34-01/Y5C-ARTC

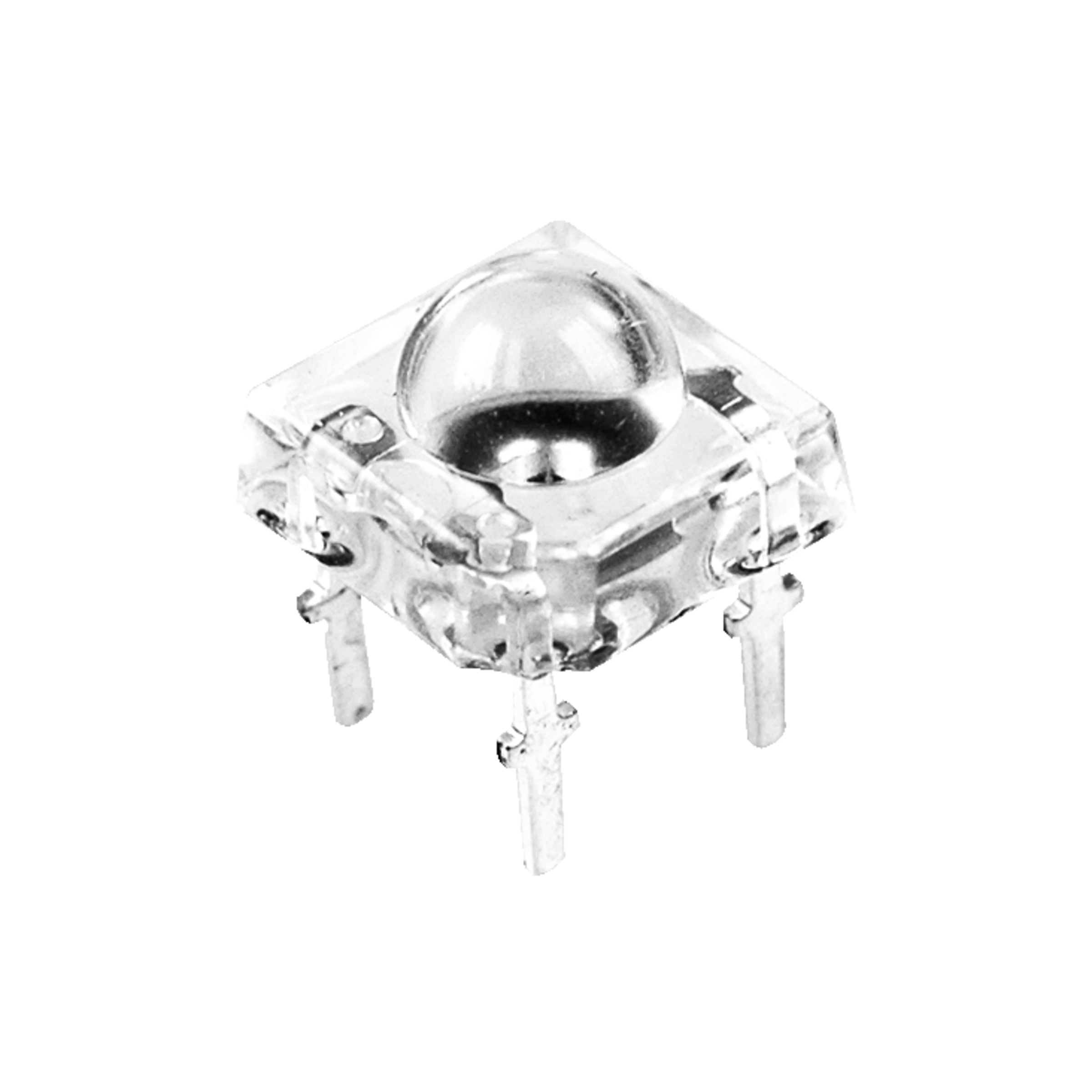

Everlight Power LED yellow 90 ° 2,6 V 7,62x7,62mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 28.06.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 80 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power LED
- Lighting Colour
- yellow
- Viewing Angle
- 90 °
- (Uf) Forward Voltage
- 2.6 V
- Peak Emission Wavelength
- 591 nm
- Manufacturer Package
- 7,62x7,62mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 100 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 100 °C
Electrical Properties
- (Uf) Forward Voltage
- 2.6 V
- Lighting Colour
- yellow
- Viewing Angle
- 90 °
- Peak Emission Wavelength
- 591 nm
- Luminous Flux
- 66 lm
- Lens Tranparency
- clear
Documents
PCN_20240412-04 - CN24030006_EN.pdf
Other Products
All Products of the Series
