339-1SURSYGW/S530-A2

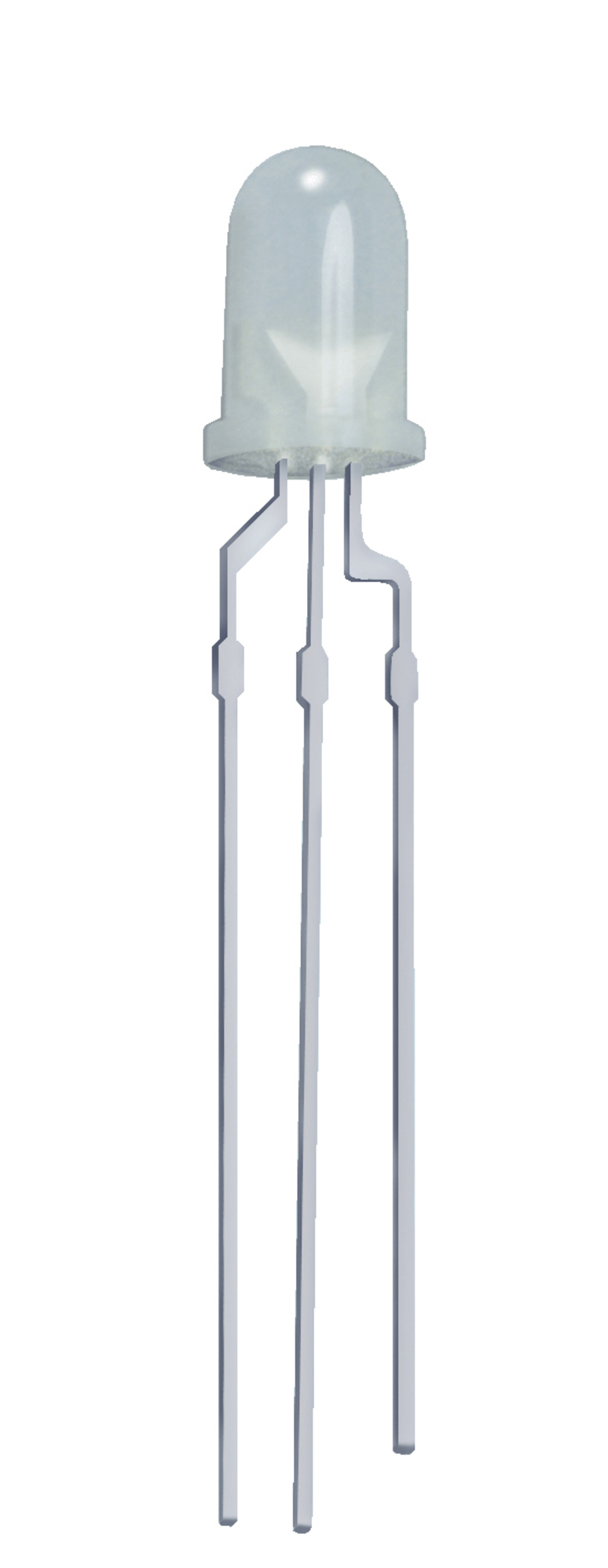

Everlight THT LED red, green diffuse Dome 50mcd/32mcd/ 70°/70°/ 2V/2V/ 5mm

Manufacturer Part No.
339-1SURSYGW/S530-A2
Schukat Part No.
EL339-1SURSYGW
Manufacturer
Everlight
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

18.000 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Lighting Colour
red, green
Lens Tranparency
diffuse
Lens Shape
Dome
Luminous Intensity Max. (colour1/colour2/colour3)
50 mcd / 32 mcd /
50 mcd / 32 mcd /
Viewing Angle (colour1/colour2/colour3)
70 ° / 70 ° /
70 ° / 70 ° /
(Uf) Forward Voltage (1/2/3)
2 V / 2 V /
2 V / 2 V /
(If) Forward Current (colour1/colour2/colour3)
20 mA / 20 mA / mA
20 mA / 20 mA / mA
Peak Emission Wavelength (colour1/colour2/colour3)
632 nm / 575 nm /
632 nm / 575 nm /
Dominant Wavelength Max. (1/2/3)
624 nm / 573 nm /
624 nm / 573 nm /
(Pd) Power Dissipation (colour1/colour2/colour3)
60 mW / 60 mW /
60 mW / 60 mW /
Manufacturer Package
5mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Everlight
Type
  • LED
Series
  • 339-1_
Product group
  • W1385 EVERLIGHT Light-Emitting Diodes diffuse Bi-coloured 5mm
Packaging
  • Boxed
Assembly Type
  • THT
Manufacturer Package
  • 5mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 100 °C

Electrical properties

(Uf) Forward Voltage (colour1)
  • 2 V
(Uf) Forward Voltage (colour2)
  • 2 V
(Uf) Forward Voltage (1/2/3)
  • 2 V / 2 V /
  • 2 V / 2 V /
(If) Forward Current (colour1)
  • 20 mA
(If) Forward Current (colour2)
  • 20 mA
(If) Forward Current (colour1/colour2/colour3)
  • 20 mA / 20 mA / mA
  • 20 mA / 20 mA / mA
Lighting Colour
  • red, green
Viewing Angle (colour1)
  • 70 °
Viewing Angle (colour2)
  • 70 °
Viewing Angle (colour1/colour2/colour3)
  • 70 ° / 70 ° /
  • 70 ° / 70 ° /
Luminous Intensity Max. (colour1)
  • 50 mcd
Luminous Intensity Max. (colour2)
  • 32 mcd
Luminous Intensity Max. (colour1/colour2/colour3)
  • 50 mcd / 32 mcd /
  • 50 mcd / 32 mcd /
Dominant Wavelength Max. (colour1)
  • 624 Nm
Dominant Wavelength Max. (colour2)
  • 573 Nm
Dominant Wavelength Max. (1/2/3)
  • 624 nm / 573 nm /
  • 624 nm / 573 nm /
Peak Emission Wavelength (colour1)
  • 632 Nm
Peak Emission Wavelength (colour2)
  • 575 Nm
Peak Emission Wavelength (colour1/colour2/colour3)
  • 632 nm / 575 nm /
  • 632 nm / 575 nm /
(Pd) Power Dissipation (colour1)
  • 60 mW
(Pd) Power Dissipation (colour2)
  • 60 mW
(Pd) Power Dissipation (colour1/colour2/colour3)
  • 60 mW / 60 mW /
  • 60 mW / 60 mW /
(Ur) Reverse Voltage (colour1)
  • 5 V
(Ur) Reverse Voltage (colour2)
  • 5 V
(Ur) Reverse Voltage (1/2/3)
  • 5 V / 5 V / V
  • 5 V / 5 V / V
Lens Colour
  • white
Lens Tranparency
  • diffuse
Lens Shape
  • Dome
