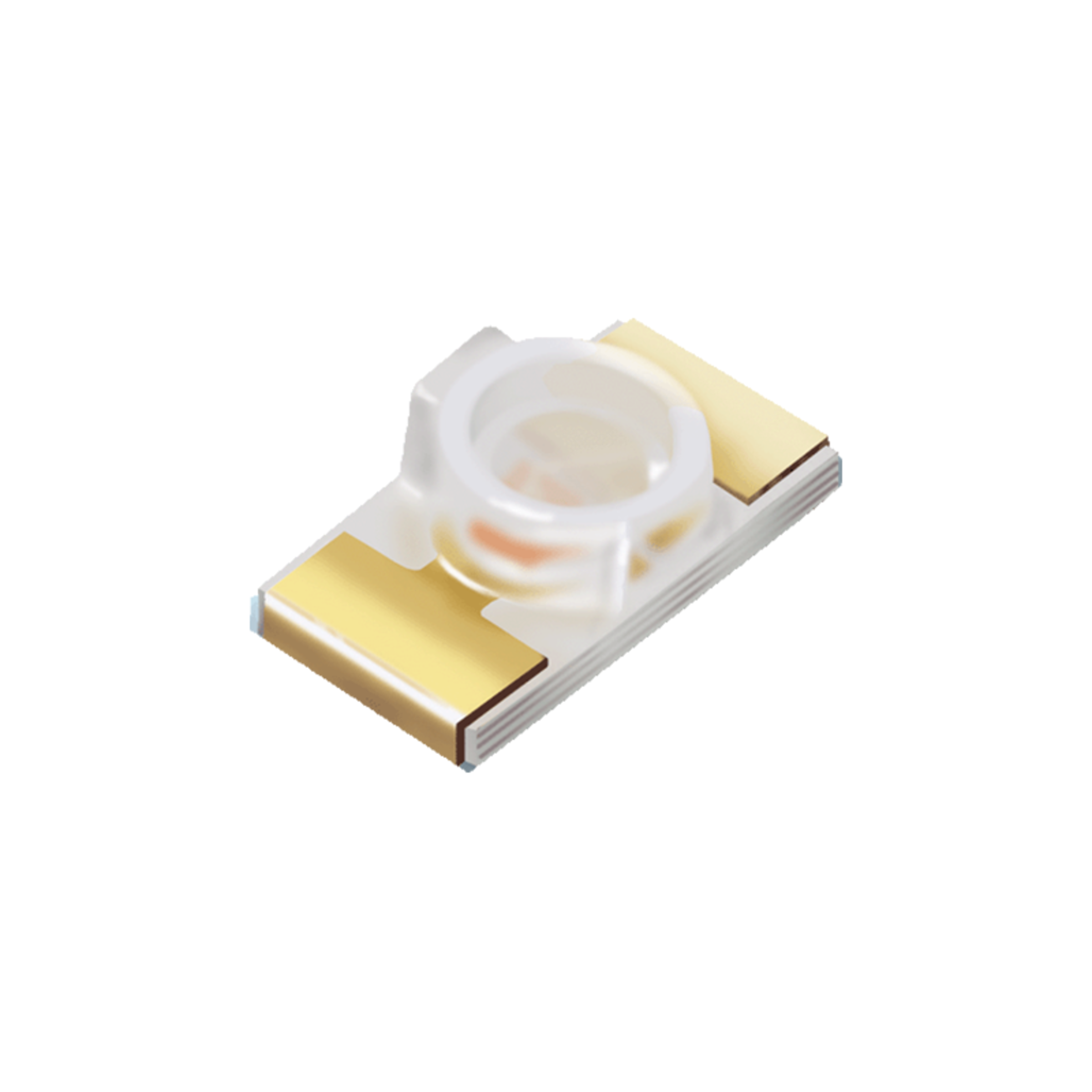

25-21SYGC/S530-E2/S3/TR8
Everlight SMD/SMT LED green clear Dome 24mcd 60° 2,0V
Manufacturer Part No.
25-21SYGC/S530-E2/S3/TR8
Schukat Part No.
EL25-21SYGC/S530E2
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.700 Pcs. in stock
Next Stock Receipt
Week 01/2025
12.000 Pcs.
12.000 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- green
- Luminous Intensity Max.
- 24 mcd
- Viewing Angle
- 60 °
- (Uf) Forward Voltage
- 2 V
- (If) Forward Current
- 20 mA
- Peak Emission Wavelength
- 575 Nm
- Dominant Wavelength Max.
- 573 Nm
- (Pd) Power Dissipation
- 60 mW
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 90 °C
Electrical properties
- (Uf) Forward Voltage
- 2 V
- (If) Forward Current
- 20 mA
- (Ur) Reverse Voltage
- 5 V
- Lighting Colour
- green
- Viewing Angle
- 60 °
- Luminous Intensity Max.
- 24 mcd
- Dominant Wavelength Max.
- 573 Nm
- Peak Emission Wavelength
- 575 Nm
- (Pd) Power Dissipation
- 60 mW
- Lens Colour
- colorless
- Lens Tranparency
- clear
- Lens Shape
- Dome
