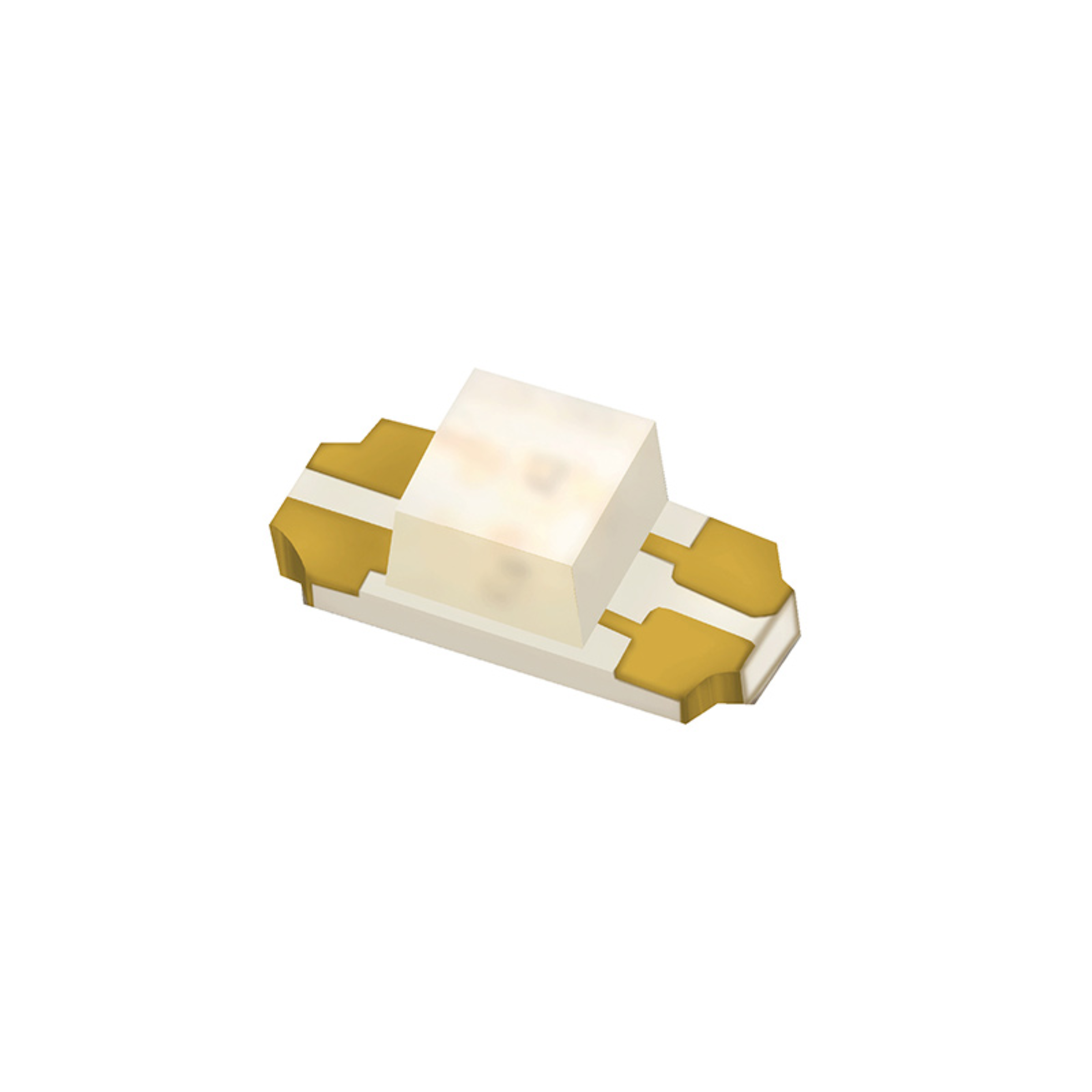

23-22BUSRSYGC/S530-A5/E3/TR8

Everlight SMD/SMT LED red, yellow-green clear rectangular 60mcd/24mcd/ 130°/130°/ 2V/2V/

Manufacturer Part No.
23-22BUSRSYGC/S530-A5/E3/TR8
Schukat Part No.
EL23-22BUSRSYGC
Manufacturer
Everlight
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10.100 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Lighting Colour
red, yellow-green
Luminous Intensity Max. (colour1/colour2/colour3)
60 mcd / 24 mcd /
60 mcd / 24 mcd /
Viewing Angle (colour1/colour2/colour3)
130 ° / 130 ° /
130 ° / 130 ° /
(Uf) Forward Voltage (1/2/3)
2 V / 2 V /
2 V / 2 V /
(If) Forward Current (colour1/colour2/colour3)
20 mA / 20 mA / mA
20 mA / 20 mA / mA
Peak Emission Wavelength (colour1/colour2/colour3)
639 nm / 575 nm /
639 nm / 575 nm /
Dominant Wavelength Max. (1/2/3)
631 nm / 573 nm /
631 nm / 573 nm /
(Pd) Power Dissipation (colour1/colour2/colour3)
60 mW / 60 mW /
60 mW / 60 mW /
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Everlight
Type
  • LED
Series
  • 23-22_
Product group
  • W2924 EVERLIGHT SMD Light-Emitting Diodes water-clear Reverse Rect
Packaging
  • Reel
Assembly Type
  • SMD/SMT

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 90 °C

Electrical properties

(Uf) Forward Voltage (colour1)
  • 2 V
(Uf) Forward Voltage (colour2)
  • 2 V
(Uf) Forward Voltage (1/2/3)
  • 2 V / 2 V /
  • 2 V / 2 V /
(If) Forward Current (colour1)
  • 20 mA
(If) Forward Current (colour2)
  • 20 mA
(If) Forward Current (colour1/colour2/colour3)
  • 20 mA / 20 mA / mA
  • 20 mA / 20 mA / mA
Lighting Colour
  • red, yellow-green
Viewing Angle (colour1)
  • 130 °
Viewing Angle (colour2)
  • 130 °
Viewing Angle (colour1/colour2/colour3)
  • 130 ° / 130 ° /
  • 130 ° / 130 ° /
Luminous Intensity Max. (colour1)
  • 60 mcd
Luminous Intensity Max. (colour2)
  • 24 mcd
Luminous Intensity Max. (colour1/colour2/colour3)
  • 60 mcd / 24 mcd /
  • 60 mcd / 24 mcd /
Dominant Wavelength Max. (colour1)
  • 631 Nm
Dominant Wavelength Max. (colour2)
  • 573 Nm
Dominant Wavelength Max. (1/2/3)
  • 631 nm / 573 nm /
  • 631 nm / 573 nm /
Peak Emission Wavelength (colour1)
  • 639 Nm
Peak Emission Wavelength (colour2)
  • 575 Nm
Peak Emission Wavelength (colour1/colour2/colour3)
  • 639 nm / 575 nm /
  • 639 nm / 575 nm /
(Pd) Power Dissipation (colour1)
  • 60 mW
(Pd) Power Dissipation (colour2)
  • 60 mW
(Pd) Power Dissipation (colour1/colour2/colour3)
  • 60 mW / 60 mW /
  • 60 mW / 60 mW /
(Ur) Reverse Voltage (colour1)
  • 5 V
(Ur) Reverse Voltage (colour2)
  • 5 V
(Ur) Reverse Voltage (1/2/3)
  • 5 V / 5 V / V
  • 5 V / 5 V / V
Lens Colour
  • colorless
Lens Tranparency
  • clear
Lens Shape
  • rectangular
