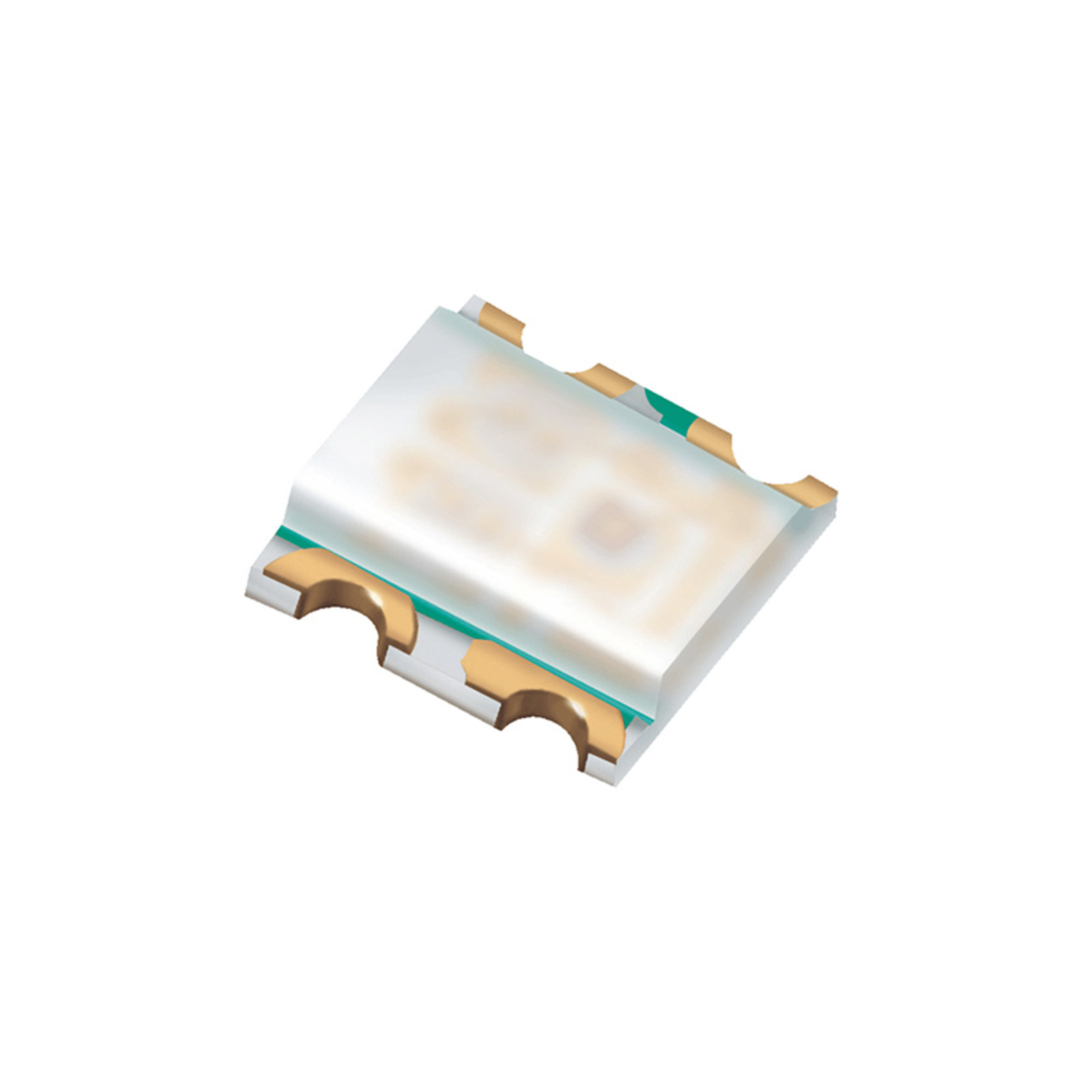

19-237/R6GHBHC-A01/2
Everlight SMD/SMT LED red, green, blue (RGB) clear rectangular 100mcd/180mcd/50mcd 120°/120°/120° 3,3V/3,3V/3,3V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
13.990 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- red, green, blue (RGB)
- Luminous Intensity Max. (colour1/colour2/colour3)
- 100mcd / 180mcd / 50mcd
100mcd / 180mcd / 50mcd - Viewing Angle (colour1/colour2/colour3)
- 120° / 120° / 120°
120° / 120° / 120° - (Uf) Forward Voltage (1/2/3)
- 3,3V / 3,3V / 3,3V
3,3V / 3,3V / 3,3V - (If) Forward Current (colour1/colour2/colour3)
- 20mA / 20mA / 20mA
20mA / 20mA / 20mA - Peak Emission Wavelength (colour1/colour2/colour3)
- 632nm / 518nm / 468nm
632nm / 518nm / 468nm - Dominant Wavelength Max. (1/2/3)
- 624nm / 525nm / 470nm
624nm / 525nm / 470nm - (Pd) Power Dissipation (colour1/colour2/colour3)
- 60mW / 95mW / 95mW
60mW / 95mW / 95mW - RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 90 °C
Electrical Properties
- (Uf) Forward Voltage (colour1)
- 2 V
- (Uf) Forward Voltage (colour2)
- 3.3 V
- (Uf) Forward Voltage (colour3)
- 3.3 V
- (Uf) Forward Voltage (1/2/3)
- 3,3V / 3,3V / 3,3V
- 3,3V / 3,3V / 3,3V
- (If) Forward Current (colour1)
- 20 mA
- (If) Forward Current (colour2)
- 20 mA
- (If) Forward Current (colour3)
- 20 mA
- (If) Forward Current (colour1/colour2/colour3)
- 20mA / 20mA / 20mA
- 20mA / 20mA / 20mA
- Lighting Colour
- red, green, blue (RGB)
- Viewing Angle (colour1)
- 120 °
- Viewing Angle (colour2)
- 120 °
- Viewing Angle (colour3)
- 120 °
- Viewing Angle (colour1/colour2/colour3)
- 120° / 120° / 120°
- 120° / 120° / 120°
- Luminous Intensity Max. (colour1)
- 100 mcd
- Luminous Intensity Max. (colour2)
- 180 mcd
- Luminous Intensity Max. (colour3)
- 50 mcd
- Luminous Intensity Max. (colour1/colour2/colour3)
- 100mcd / 180mcd / 50mcd
- 100mcd / 180mcd / 50mcd
- Dominant Wavelength Max. (colour1)
- 624 nm
- Dominant Wavelength Max. (colour2)
- 525 nm
- Dominant Wavelength Max. (colour3)
- 470 nm
- Dominant Wavelength Max. (1/2/3)
- 624nm / 525nm / 470nm
- 624nm / 525nm / 470nm
- Peak Emission Wavelength (colour1)
- 632 nm
- Peak Emission Wavelength (colour2)
- 518 nm
- Peak Emission Wavelength (colour3)
- 468 nm
- Peak Emission Wavelength (colour1/colour2/colour3)
- 632nm / 518nm / 468nm
- 632nm / 518nm / 468nm
- (Pd) Power Dissipation (colour1)
- 60 mW
- (Pd) Power Dissipation (colour2)
- 95 mW
- (Pd) Power Dissipation (colour3)
- 95 mW
- (Pd) Power Dissipation (colour1/colour2/colour3)
- 60mW / 95mW / 95mW
- 60mW / 95mW / 95mW
- (Ur) Reverse Voltage (colour1)
- 5 V
- (Ur) Reverse Voltage (colour2)
- 5 V
- (Ur) Reverse Voltage (colour3)
- 5 V
- (Ur) Reverse Voltage (1/2/3)
- 5V / 5V / 5V
- 5V / 5V / 5V
- Lens Colour
- colorless
- Lens Tranparency
- clear
- Lens Shape
- rectangular
