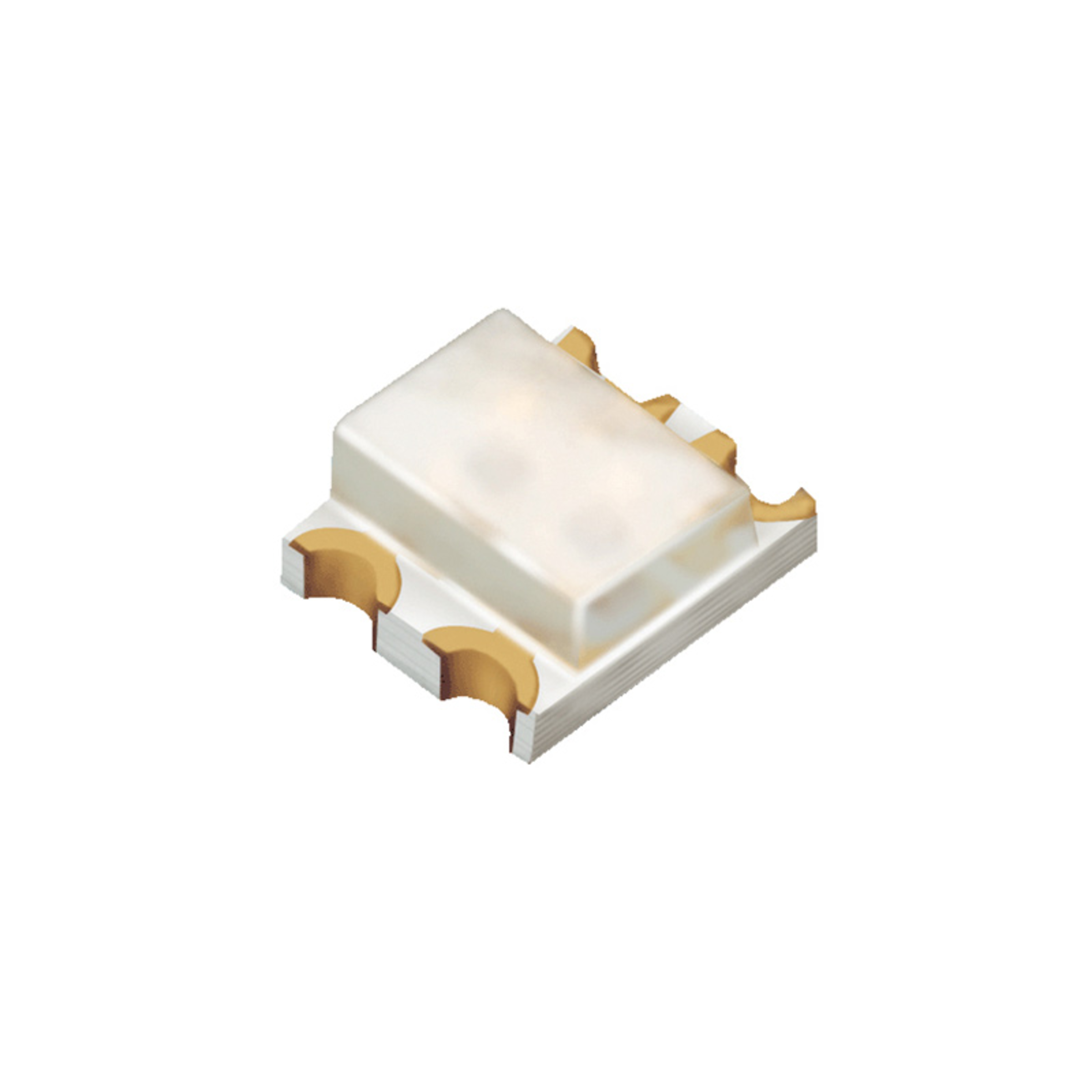

19-22SURSYGC/S530-A3
Everlight SMD/SMT LED red, green 45mcd/34mcd/ 130°/130°/ 2V/2V/ 806
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
15.250 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- red, green
- Luminous Intensity Max. (colour1/colour2/colour3)
- 45 mcd / 34 mcd /
45 mcd / 34 mcd / - Viewing Angle (colour1/colour2/colour3)
- 130 ° / 130 ° /
130 ° / 130 ° / - (Uf) Forward Voltage (1/2/3)
- 2 V / 2 V /
2 V / 2 V / - (If) Forward Current (colour1/colour2/colour3)
- 20 mA / 20 mA / mA
20 mA / 20 mA / mA - Peak Emission Wavelength (colour1/colour2/colour3)
- 632 nm / 575 nm /
632 nm / 575 nm / - Dominant Wavelength Max. (1/2/3)
- 624 nm / 573 nm /
624 nm / 573 nm / - (Pd) Power Dissipation (colour1/colour2/colour3)
- 60 mW / 60 mW /
60 mW / 60 mW / - Manufacturer Package
- 806
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 90 °C
Electrical properties
- (Uf) Forward Voltage (colour1)
- 2 V
- (Uf) Forward Voltage (colour2)
- 2 V
- (Uf) Forward Voltage (1/2/3)
- 2 V / 2 V /
- 2 V / 2 V /
- (If) Forward Current (colour1)
- 20 mA
- (If) Forward Current (colour2)
- 20 mA
- (If) Forward Current (colour1/colour2/colour3)
- 20 mA / 20 mA / mA
- 20 mA / 20 mA / mA
- Lighting Colour
- red, green
- Viewing Angle (colour1)
- 130 °
- Viewing Angle (colour2)
- 130 °
- Viewing Angle (colour1/colour2/colour3)
- 130 ° / 130 ° /
- 130 ° / 130 ° /
- Luminous Intensity Max. (colour1)
- 45 mcd
- Luminous Intensity Max. (colour2)
- 34 mcd
- Luminous Intensity Max. (colour1/colour2/colour3)
- 45 mcd / 34 mcd /
- 45 mcd / 34 mcd /
- Dominant Wavelength Max. (colour1)
- 624 Nm
- Dominant Wavelength Max. (colour2)
- 573 Nm
- Dominant Wavelength Max. (1/2/3)
- 624 nm / 573 nm /
- 624 nm / 573 nm /
- Peak Emission Wavelength (colour1)
- 632 Nm
- Peak Emission Wavelength (colour2)
- 575 Nm
- Peak Emission Wavelength (colour1/colour2/colour3)
- 632 nm / 575 nm /
- 632 nm / 575 nm /
- (Pd) Power Dissipation (colour1)
- 60 mW
- (Pd) Power Dissipation (colour2)
- 60 mW
- (Pd) Power Dissipation (colour1/colour2/colour3)
- 60 mW / 60 mW /
- 60 mW / 60 mW /
- (Ur) Reverse Voltage (colour1)
- 5 V
- (Ur) Reverse Voltage (colour2)
- 5 V
- (Ur) Reverse Voltage (1/2/3)
- 5 V / 5 V / V
- 5 V / 5 V / V
- Lens Colour
- colorless
- Lens Tranparency
- clear
- Lens Shape
- rectangular
