19-213/T1D-AQ1R2HY/5T/EU

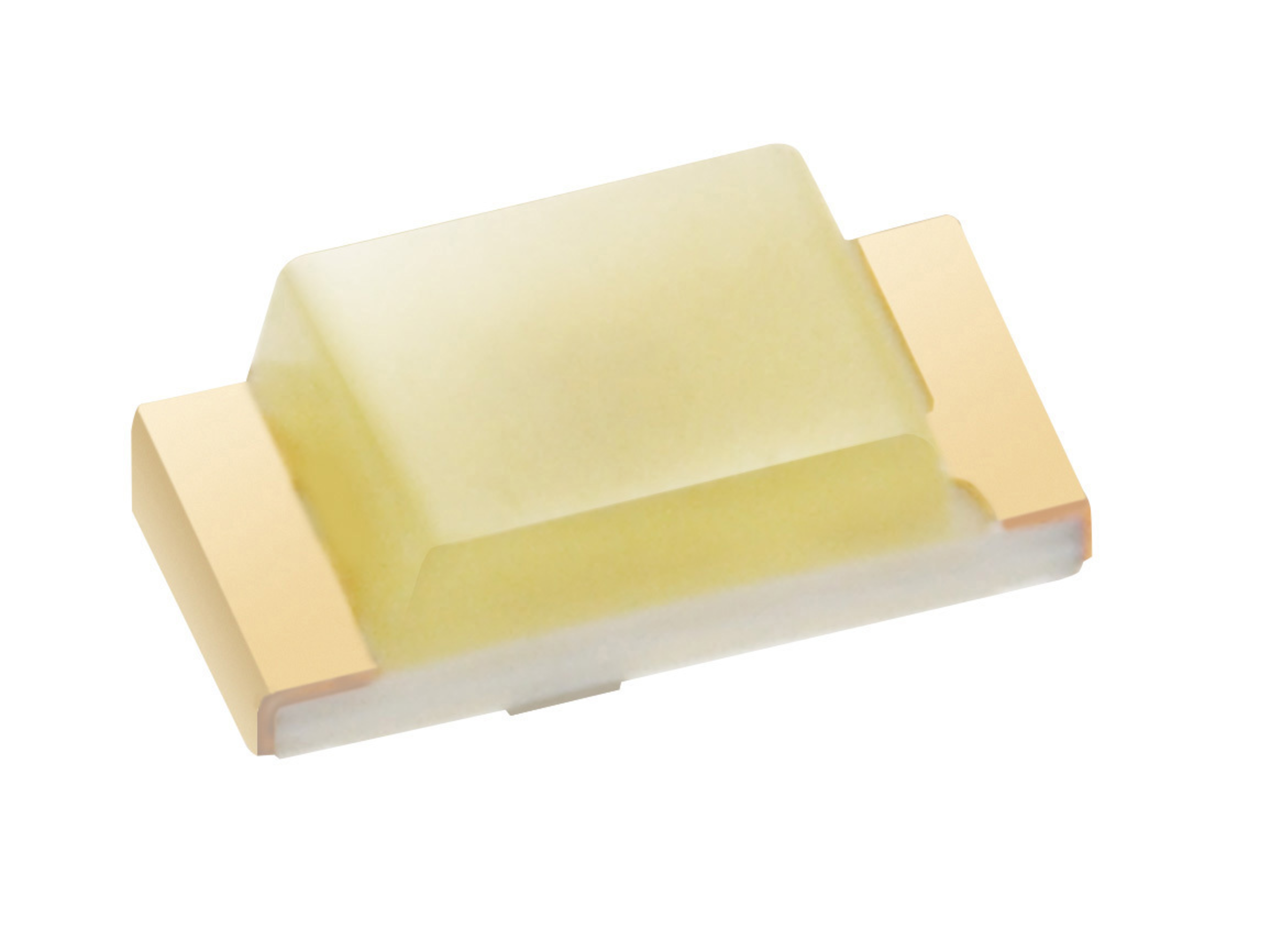

Everlight SMD/SMT LED white diffuse rectangular 180mcd 130° 3,15V 603
Manufacturer Part No.
19-213/T1D-AQ1R2HY/5T/EU
Schukat Part No.
EL19-213/T1D-AQ1R2
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.000 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- white
- Luminous Intensity Max.
- 180 mcd
- Viewing Angle
- 130 °
- (Uf) Forward Voltage
- 3.15 V
- (If) Forward Current
- 5 mA
- (Pd) Power Dissipation
- 95 mW
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 90 °C
Electrical properties
- (Uf) Forward Voltage
- 3.15 V
- (If) Forward Current
- 5 mA
- (Ur) Reverse Voltage
- 5 V
- Lighting Colour
- white
- Viewing Angle
- 130 °
- Luminous Intensity Max.
- 180 mcd
- (Pd) Power Dissipation
- 95 mW
- Lens Colour
- yellow
- Lens Tranparency
- diffuse
- Lens Shape
- rectangular
