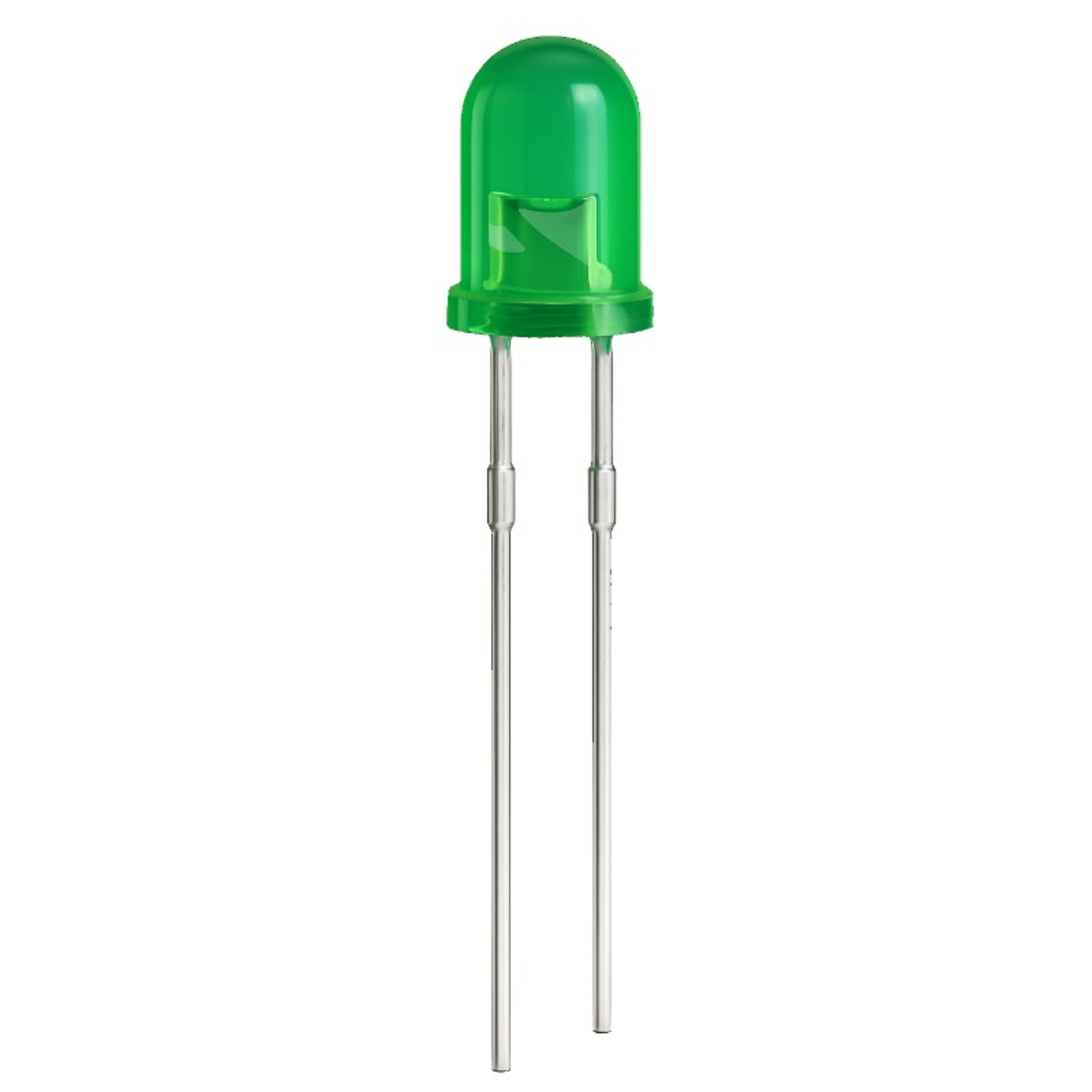

1383SYGD/S530-E2
Everlight THT LED yellow, green diffuse round 200mcd 25° 2,0V 5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
12.600 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- yellow, green
- Luminous Intensity Max.
- 200 mcd
- Viewing Angle
- 25 °
- (Uf) Forward Voltage
- 2 V
- (If) Forward Current
- 20 mA
- Peak Emission Wavelength
- 575 Nm
- Dominant Wavelength Max.
- 573 Nm
- (Pd) Power Dissipation
- 60 mW
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 100 °C
Electrical properties
- (Uf) Forward Voltage
- 2 V
- (If) Forward Current
- 20 mA
- (Ur) Reverse Voltage
- 5 V
- Lighting Colour
- yellow, green
- Viewing Angle
- 25 °
- Luminous Intensity Max.
- 200 mcd
- Dominant Wavelength Max.
- 573 Nm
- Peak Emission Wavelength
- 575 Nm
- (Pd) Power Dissipation
- 60 mW
- Lens Colour
- green
- Lens Tranparency
- diffuse
- Lens Shape
- round
