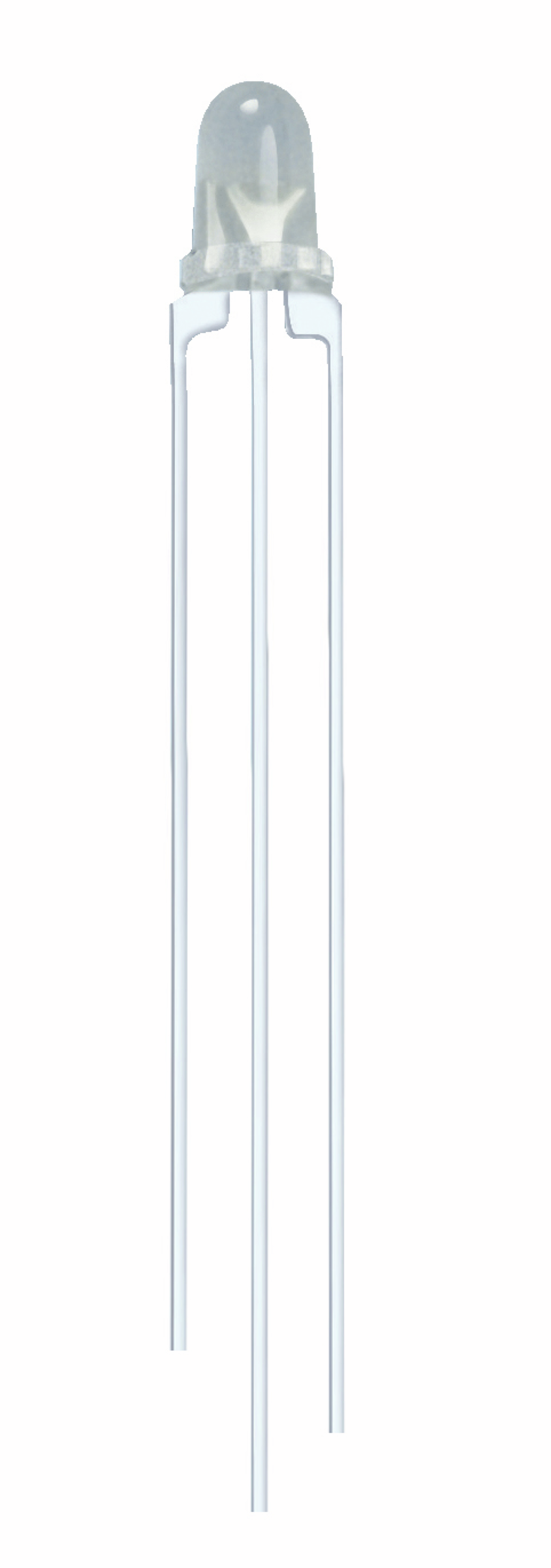

1259-7SDRSYGW/S530A3

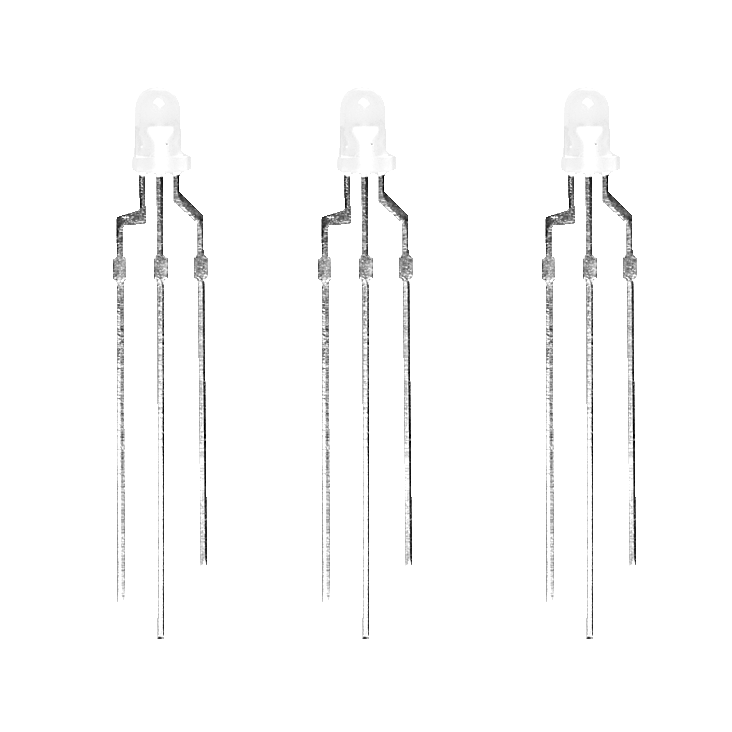

Everlight THT LED red, green diffuse Dome 32mcd/50mcd 50°/50° 2V/2V 3mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.800 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Lighting Colour
- red, green
- Lens Tranparency
- diffuse
- Lens Shape
- Dome
- Luminous Intensity Max. (colour1/colour2/colour3)
- 32mcd / 50mcd
32mcd / 50mcd - Viewing Angle (colour1/colour2/colour3)
- 50° / 50°
50° / 50° - (Uf) Forward Voltage (1/2/3)
- 2V / 2V
2V / 2V - (If) Forward Current (colour1/colour2/colour3)
- 20mA / 20mA
20mA / 20mA - Peak Emission Wavelength (colour1/colour2/colour3)
- 650nm / 575nm
650nm / 575nm - Dominant Wavelength Max. (1/2/3)
- 639nm / 573nm
639nm / 573nm - (Pd) Power Dissipation (colour1/colour2/colour3)
- 60mW / 60mW
60mW / 60mW - Manufacturer Package
- 3mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 100 °C
Electrical Properties
- (Uf) Forward Voltage (colour1)
- 2 V
- (Uf) Forward Voltage (colour2)
- 2 V
- (Uf) Forward Voltage (1/2/3)
- 2V / 2V
- 2V / 2V
- (If) Forward Current (colour1)
- 20 mA
- (If) Forward Current (colour2)
- 20 mA
- (If) Forward Current (colour1/colour2/colour3)
- 20mA / 20mA
- 20mA / 20mA
- Lighting Colour
- red, green
- Viewing Angle (colour1)
- 50 °
- Viewing Angle (colour2)
- 50 °
- Viewing Angle (colour1/colour2/colour3)
- 50° / 50°
- 50° / 50°
- Luminous Intensity Max. (colour1)
- 32 mcd
- Luminous Intensity Max. (colour2)
- 50 mcd
- Luminous Intensity Max. (colour1/colour2/colour3)
- 32mcd / 50mcd
- 32mcd / 50mcd
- Dominant Wavelength Max. (colour1)
- 639 nm
- Dominant Wavelength Max. (colour2)
- 573 nm
- Dominant Wavelength Max. (1/2/3)
- 639nm / 573nm
- 639nm / 573nm
- Peak Emission Wavelength (colour1)
- 650 nm
- Peak Emission Wavelength (colour2)
- 575 nm
- Peak Emission Wavelength (colour1/colour2/colour3)
- 650nm / 575nm
- 650nm / 575nm
- (Pd) Power Dissipation (colour1)
- 60 mW
- (Pd) Power Dissipation (colour2)
- 60 mW
- (Pd) Power Dissipation (colour1/colour2/colour3)
- 60mW / 60mW
- 60mW / 60mW
- (Ur) Reverse Voltage (colour1)
- 5 V
- (Ur) Reverse Voltage (colour2)
- 5 V
- (Ur) Reverse Voltage (1/2/3)
- 5V / 5V
- 5V / 5V
- Lens Colour
- white
- Lens Tranparency
- diffuse
- Lens Shape
- Dome
