RT-250-150-120

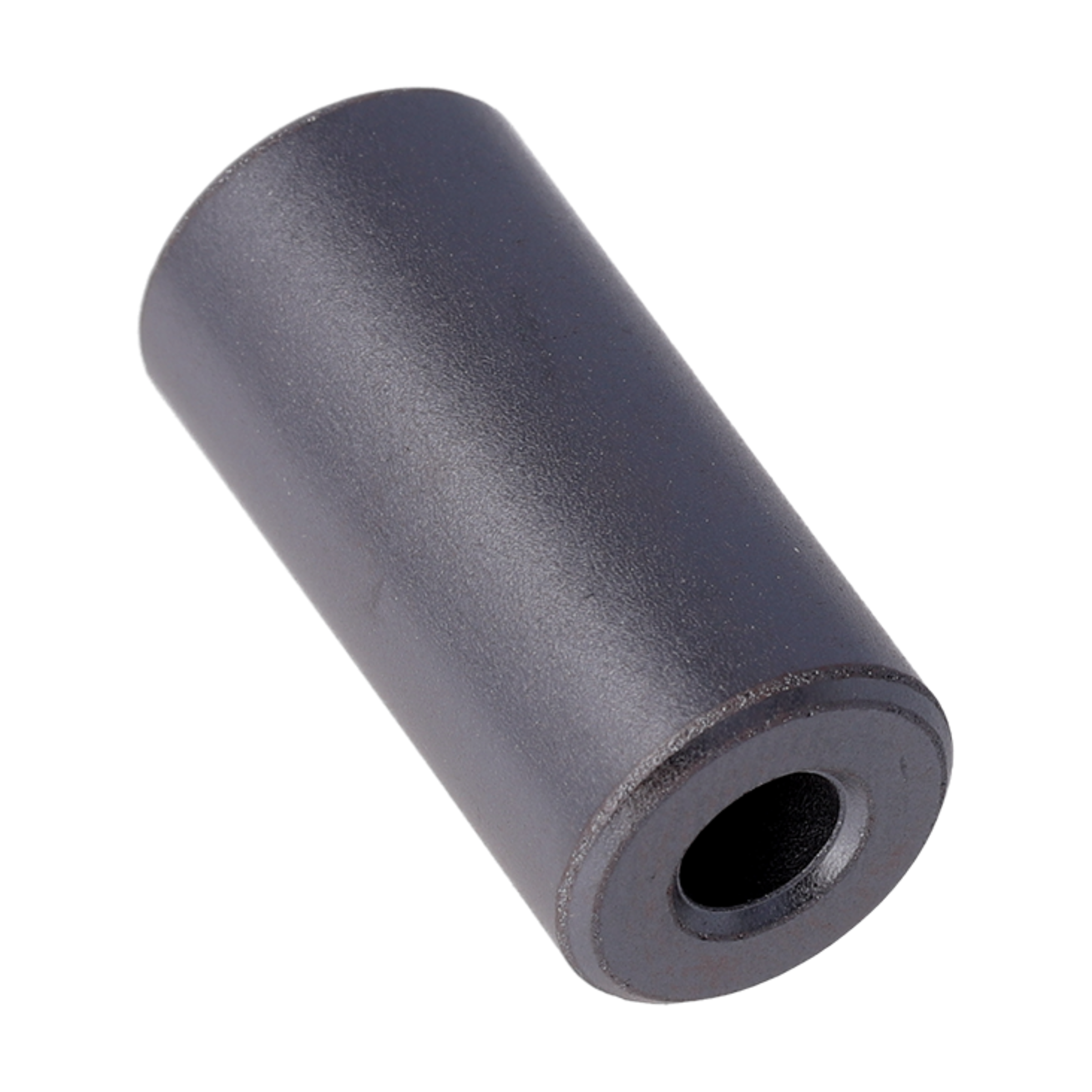

Essentra Components Ferrite ring RT 12mm 18,6g Ø15mm 97Ohm
Manufacturer Part No.
RT-250-150-120
Schukat Part No.
RT-250-150-120
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
406 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 7 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 7 or multiple of 7)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RT
- Type
- Ferrite ring
- Features
- Ferrite material K5B
- For suppression of conducted interference
- Can be used for a wide frequency range and allow multiple cable wraps, ideal for consumer electronics, medical technology and retail vending machines- Dimension: Length
- 12 mm
- Weight
- 18.6 g
- Max. Cable diameter
- 15 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 12 mm
- Outer diameter
- 25 mm
- Diameter, inner
- 15 mm
- Weight
- 18.6 g
Technical features
- Max. Cable diameter
- 15 mm
- Curie temperature
- 140 °C
- Temperature coefficient
- 7 % / °C
- Loss factor
- 250
- Impedance at 25 MHz
- 53 Ohm
- Impedance at 100 MHz
- 97 Ohm
