RT-159-79-143

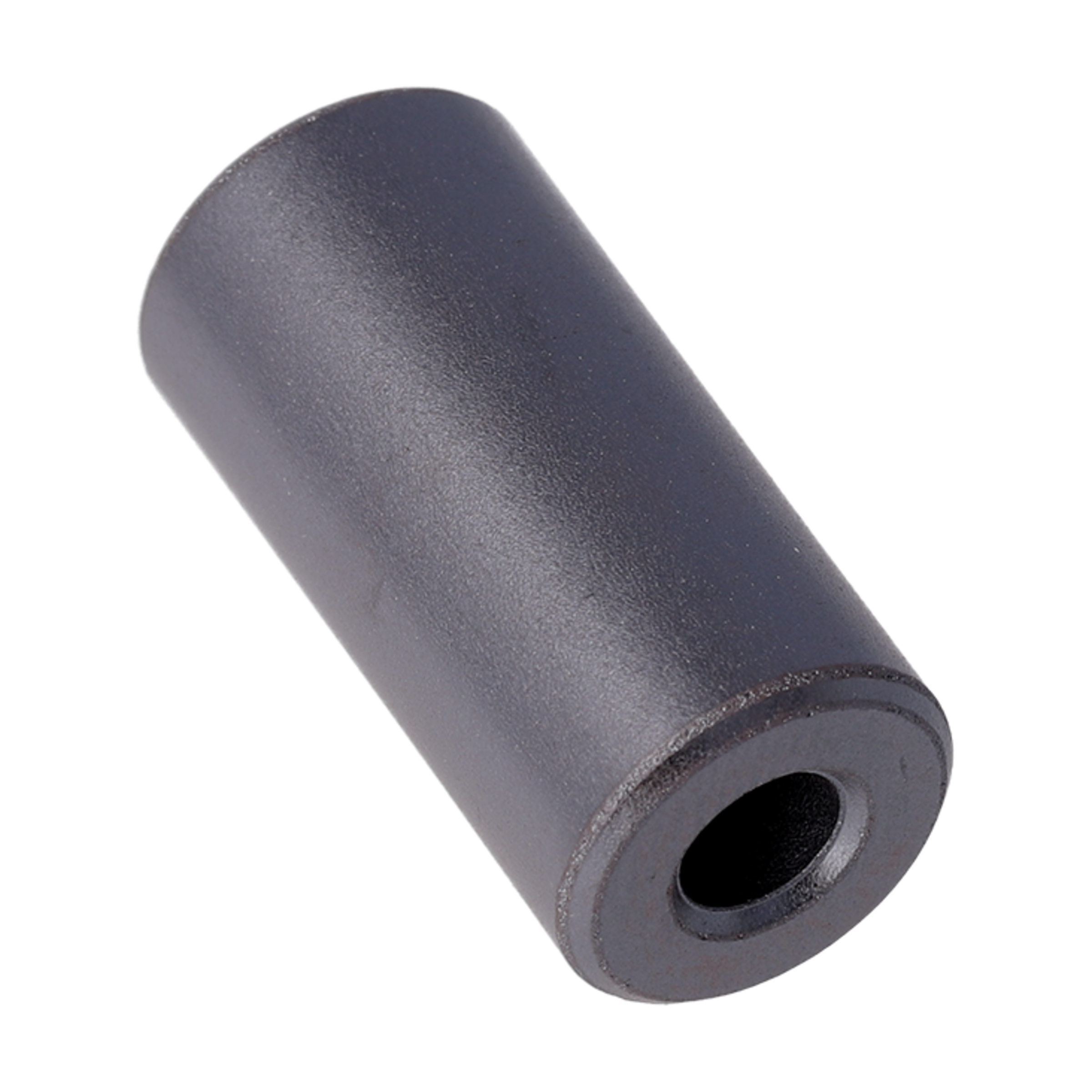

Essentra Components Ferrite ring RT 14,27mm 11,3g Ø7,87mm 121Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
270 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 7 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RT
- Type
- Ferrite ring
- Features
- Ferrite material K5B
- For suppression of conducted interference
- Can be used for a wide frequency range and allow multiple cable wraps, ideal for consumer electronics, medical technology and retail vending machines- Dimension: Length
- 14.27 mm
- Weight
- 11.3 g
- Max. Cable diameter
- 7.87 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 14.27 mm
- Outer diameter
- 15.88 mm
- Diameter, inner
- 7.87 mm
- Weight
- 11.3 g
Technical features
- Max. Cable diameter
- 7.87 mm
- Curie temperature
- 140 °C
- Temperature coefficient
- 7 % / °C
- Loss factor
- 250
- Impedance at 25 MHz
- 79 Ohm
- Impedance at 100 MHz
- 121 Ohm
