RRH-123-49-254

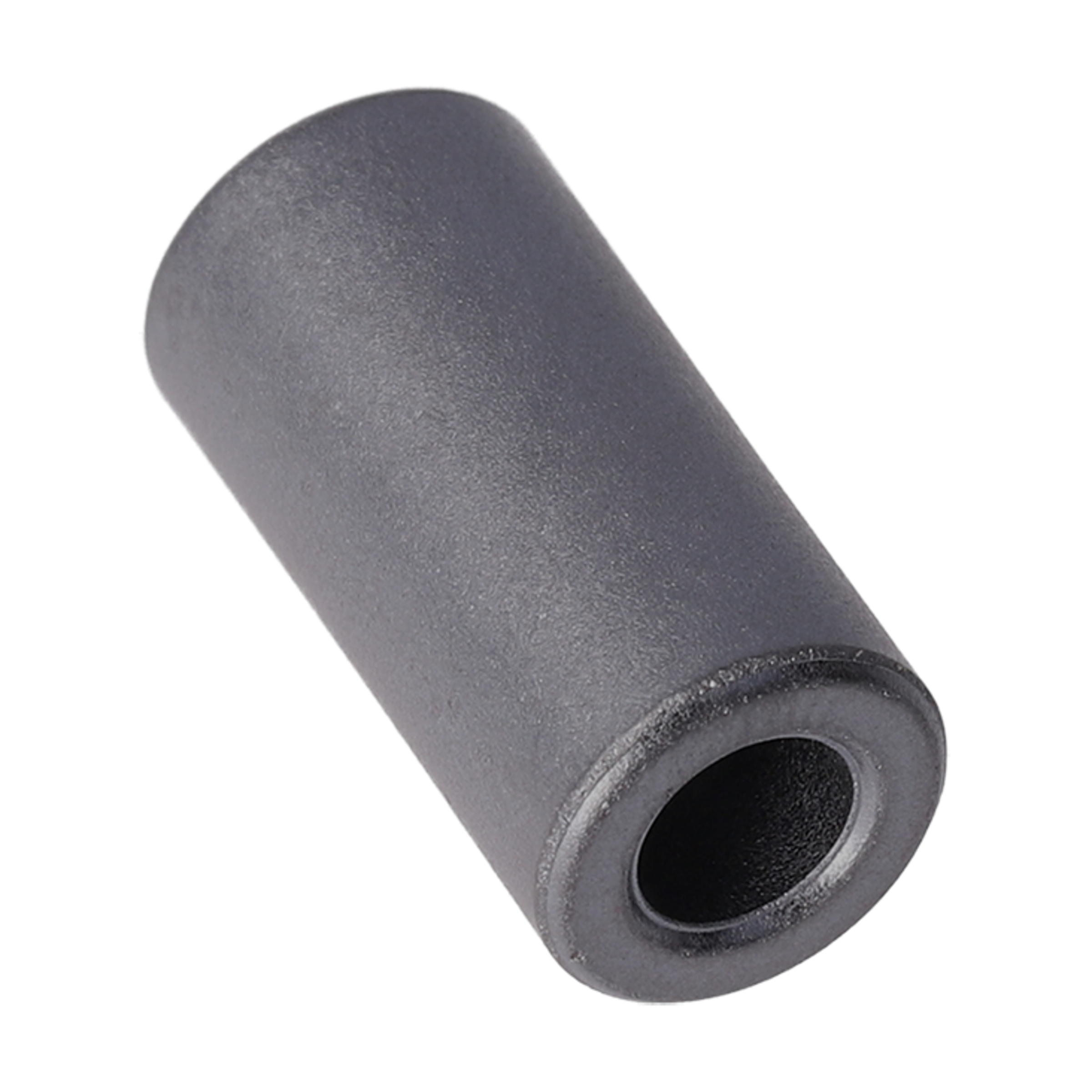

Essentra Components Ferrite ring RRH 25,4mm Ø4,88mm 264Ohm
Manufacturer Part No.
RRH-123-49-254
Schukat Part No.
RRH-123-49-254
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 23 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RRH
- Type
- Ferrite ring
- Features
- Ferrite material K5B
- For suppression of conducted interference
- Can be placed around the cable from the final assembly
- For household appliances and consumer electronics- Dimension: Length
- 25.4 mm
- Max. Cable diameter
- 4.88 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 25.4 mm
- Outer diameter
- 12.32 mm
- Diameter, inner
- 4.88 mm
Technical Features
- Max. Cable diameter
- 4.88 mm
- Impedance at 25 MHz
- 172 Ohm
- Impedance at 100 MHz
- 264 Ohm
