RRC-25-15-12-M

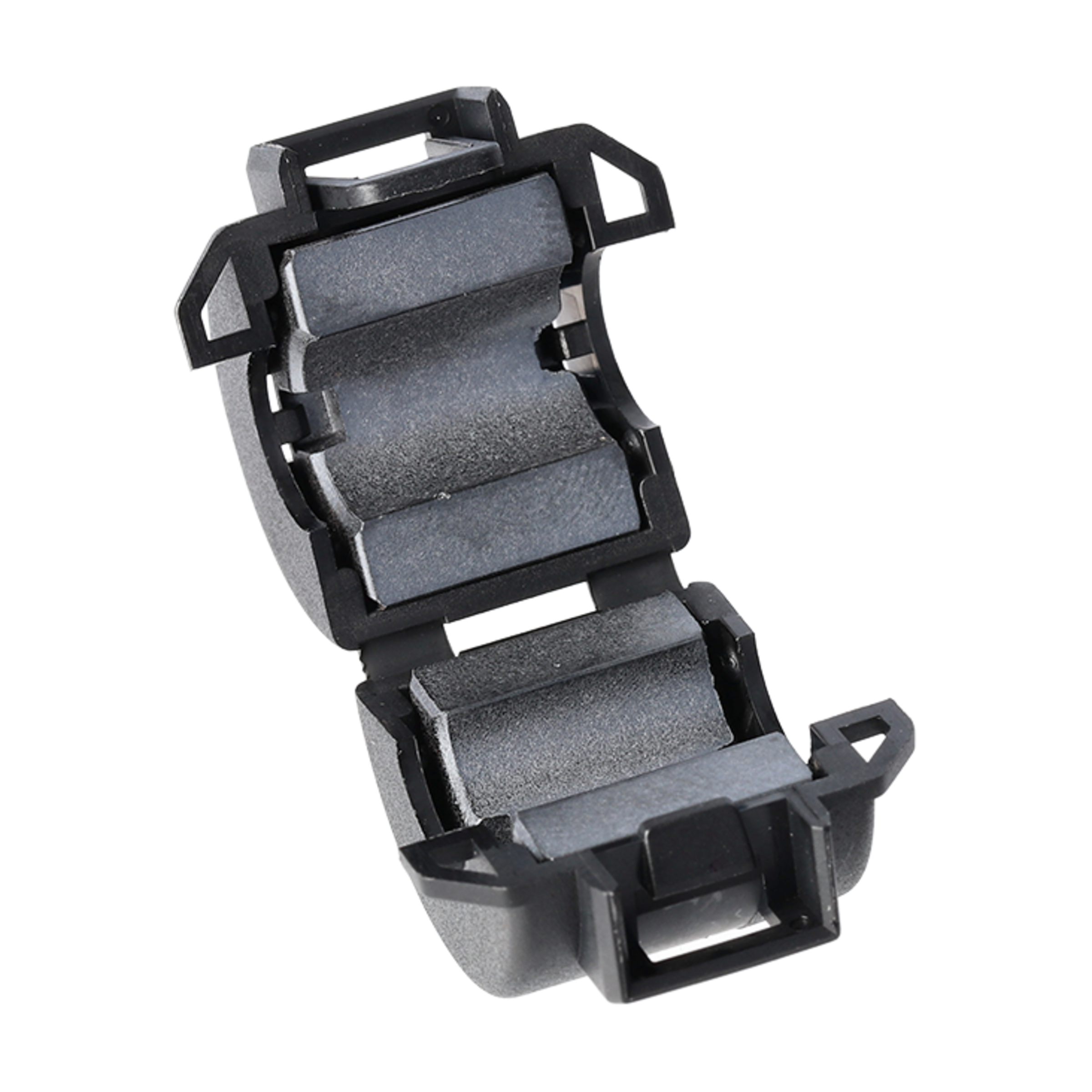

Essentra Components Folding ferrite RRC 15,5mm 24,4g Ø15mm 100Ohm
Manufacturer Part No.
RRC-25-15-12-M
Schukat Part No.
RRC-25-15-12-M
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
156 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 4 or multiple of 4)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RRC
- Type
- Folding ferrite
- Features
- Ferrite material K5B
- Snap-It for easy, subsequent mounting
- For suppression of conducted interference
- Are ideal for retrofitting to existing cables
- For consumer electronics such as monitor cables, printer cables, mouse cables and data cables- Dimension: Length
- 15.5 mm
- Weight
- 24.4 g
- Max. Cable diameter
- 15 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 15.5 mm
- Outer diameter
- 29 mm
- Diameter, inner
- 15 mm
- Weight
- 24.4 g
Technical features
- Max. Cable diameter
- 15 mm
- Curie temperature
- 140 °C
- Temperature coefficient
- 7 % / °C
- Loss factor
- 250
- Impedance at 25 MHz
- 45 Ohm
- Impedance at 100 MHz
- 100 Ohm
