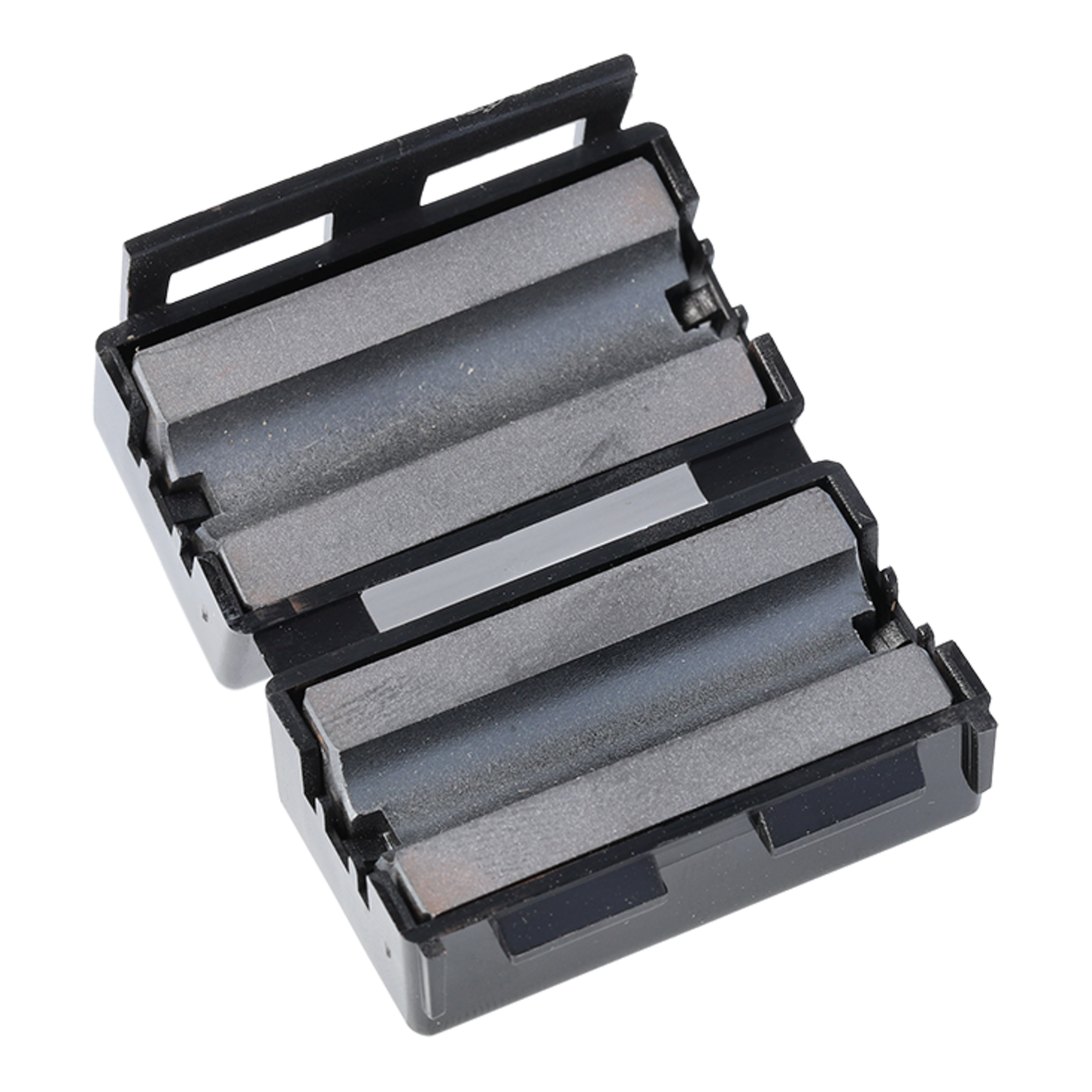

RKCF-06-A5
Essentra Components Folding ferrite RKCF 33mm 20,5mm 20mm 9,4g Ø6,5mm 275Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
194 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RKCF
- Type
- Folding ferrite
- Features
- Ferrite material A5
- Snap-It for easy, subsequent mounting
- For suppression of conducted interference
- For retrofitting and cases where testing is required
- They protect against unwanted EMI radiation in digital devices such as computers, photocopiers and games consoles- Dimension: Length
- 33 mm
- Dimension: Width
- 20.5 mm
- Dimension: Height
- 20 mm
- Weight
- 9.4 g
- Max. Cable diameter
- 6.5 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 33 mm
- Dimension: Width
- 20.5 mm
- Dimension: Height
- 20 mm
- Diameter, inner
- 7.5 mm
- Weight
- 9.4 g
Technical features
- Max. Cable diameter
- 6.5 mm
- Curie temperature
- 130 °C
- Temperature coefficient
- 5 % / °C
- Loss factor
- 280
- Impedance at 25 MHz
- 180 Ohm
- Impedance at 100 MHz
- 275 Ohm
