HTSN-M3-10-6-2

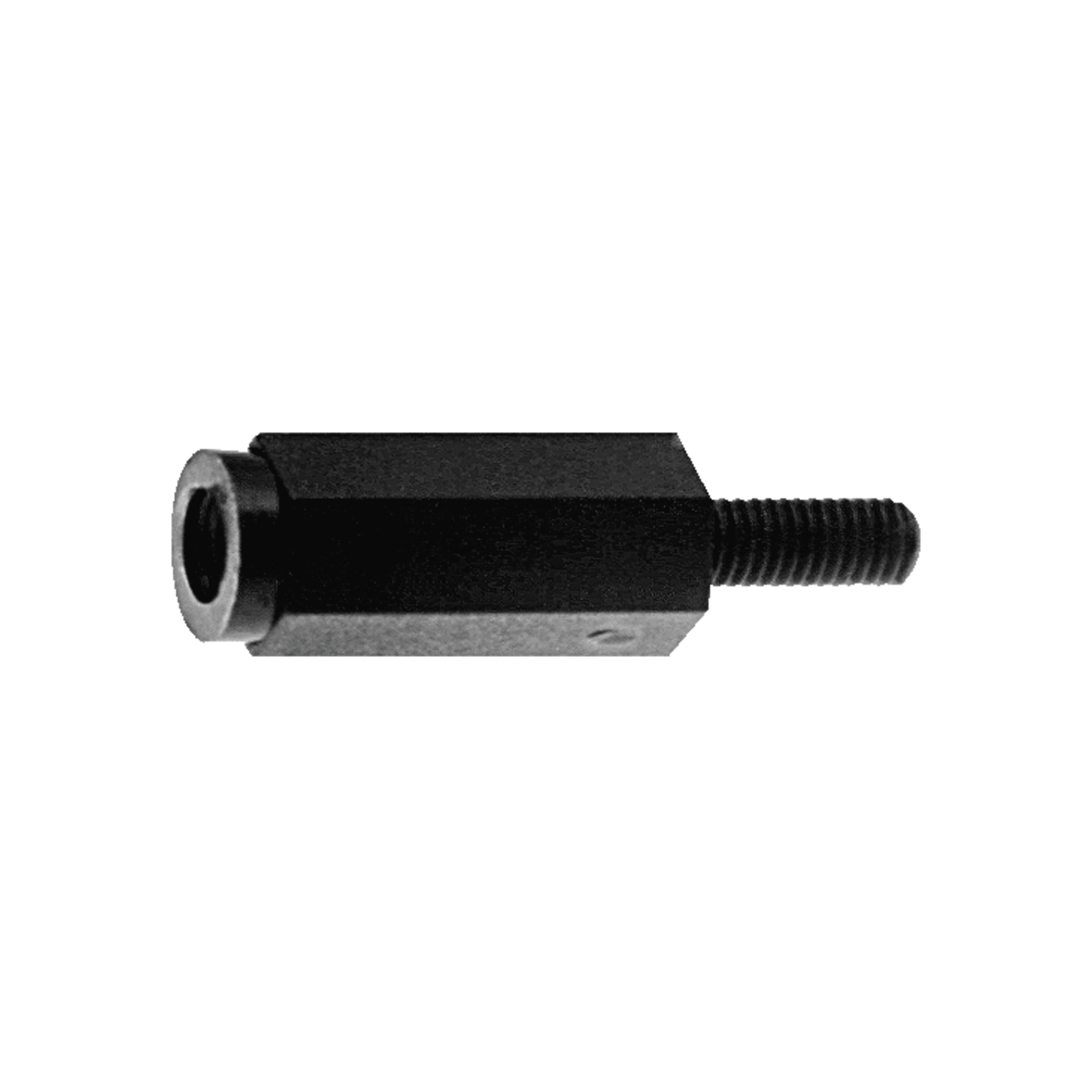

Essentra Components HTSN-M3-2 Polyamide spacer bolt Internal/external thread black SW6mm 10mm
Manufacturer Part No.
HTSN-M3-10-6-2
Schukat Part No.
KDA6M3X10-ESS
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
18.000 Pcs. in stock
Next Stock Receipt
Week 03/2025
5.000 Pcs.
5.000 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- HTSN-M3-2
- Type
- spacer bolt
- Material
- Polyamide
- Colour
- black
- Dimension: Length
- 10 mm
- Key Width
- 6 mm
- RoHS-Conform

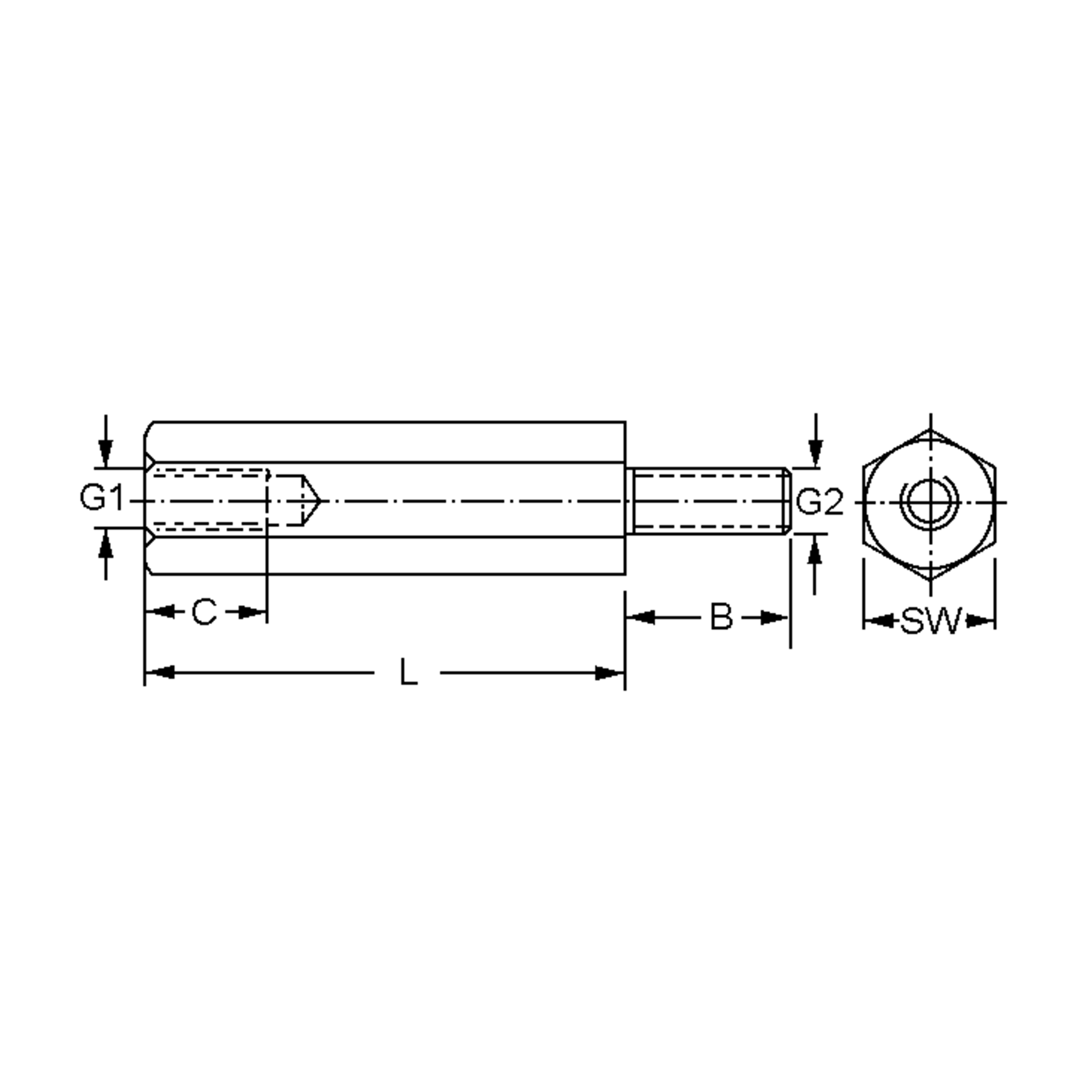

Specifications
Open all
Dimensions and weights
- Diameter: Outside
- 8 mm
- Key Width
- 6 mm
- Dimension: Length
- 10 mm
