DE17-1081-6.631

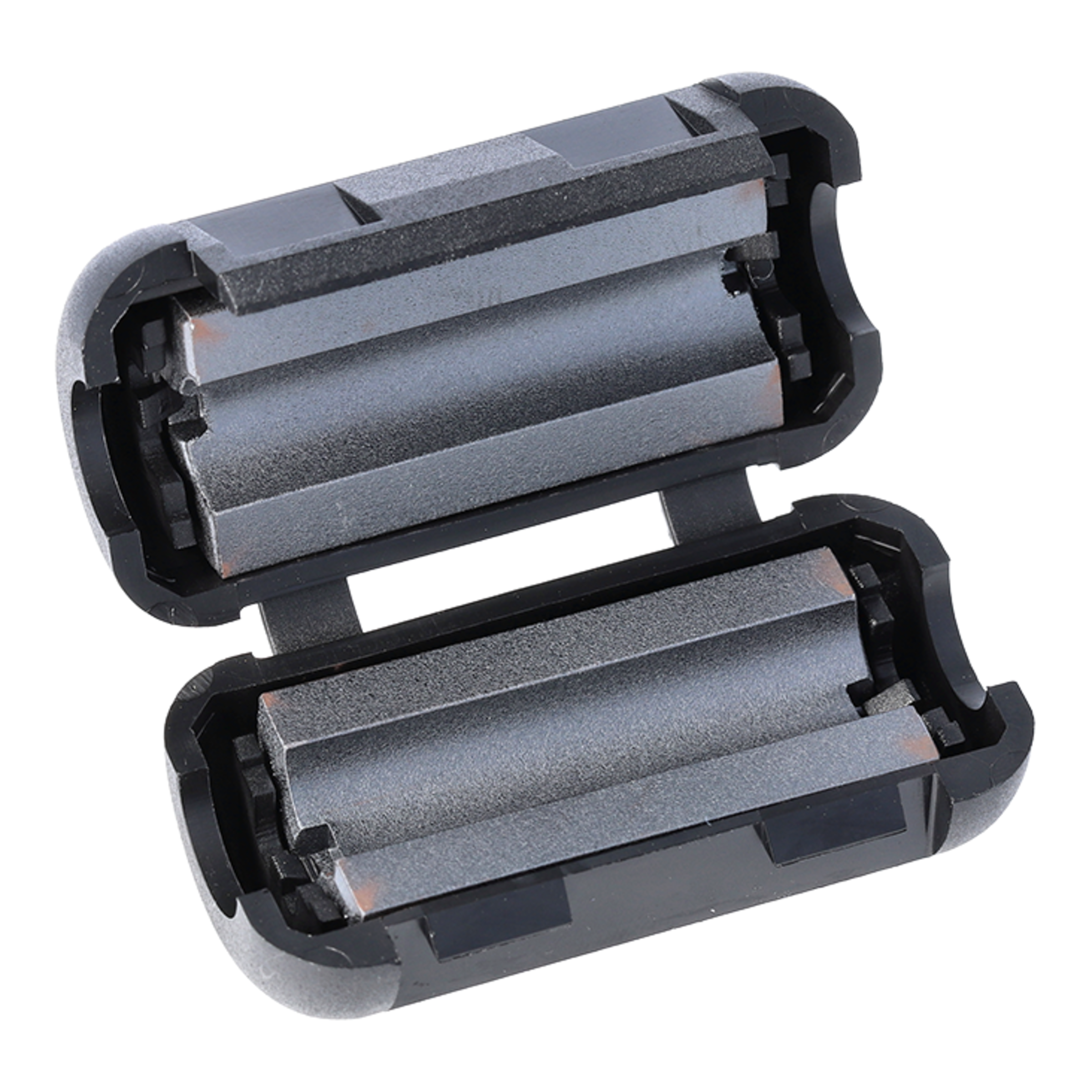

Essentra Components Folding ferrite RRC 39mm 24,8g Ø7mm 260Ohm
Manufacturer Part No.
DE17-1081-6.631
Schukat Part No.
RRC-14-7-28-M-631
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
360 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 07.05.2025
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RRC
- Type
- Folding ferrite
- Features
- Ferrite material K5B
- Snap-It for easy, subsequent mounting
- For suppression of conducted interference
- Are ideal for retrofitting to existing cables
- For consumer electronics such as monitor cables, printer cables, mouse cables and data cables- Dimension: Length
- 39 mm
- Weight
- 24.8 g
- Max. Cable diameter
- 7 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 39 mm
- Outer diameter
- 20 mm
- Diameter, inner
- 8.5 mm
- Weight
- 24.8 g
Technical Features
- Max. Cable diameter
- 7 mm
- Curie temperature
- 140 °C
- Temperature coefficient
- 7 % / °C
- Loss factor
- 250
- Impedance at 25 MHz
- 150 Ohm
- Impedance at 100 MHz
- 260 Ohm
