DE17-1081-6.354

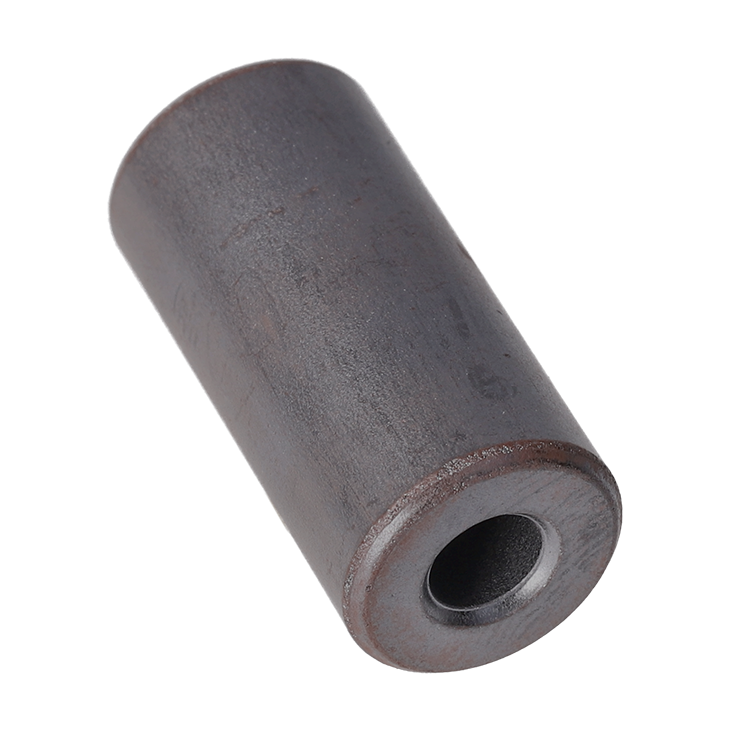

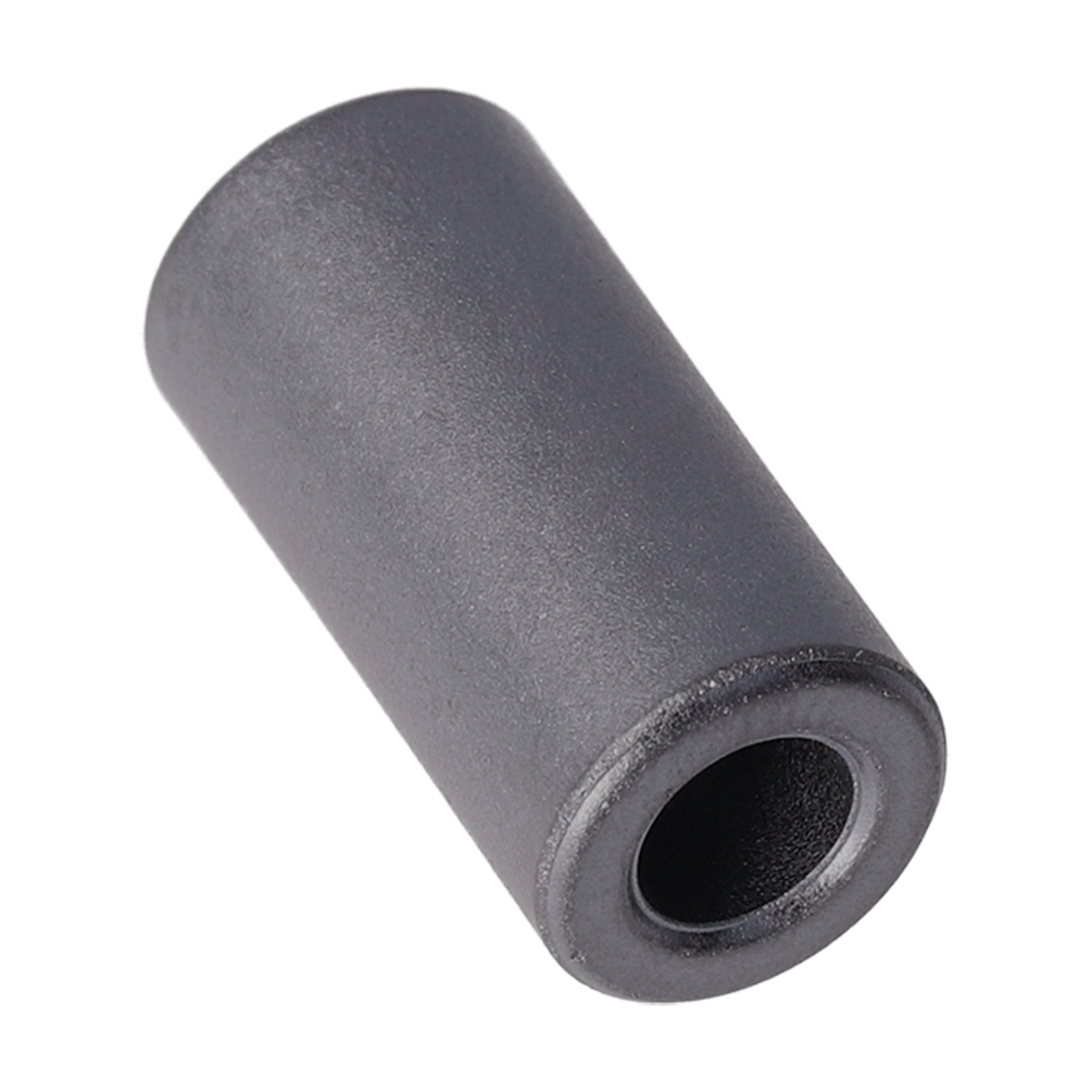

Essentra Components Ferrite ring RRH 28,5mm 18,6g Ø6,35mm 255Ohm
Manufacturer Part No.
DE17-1081-6.354
Schukat Part No.
RRH-142-64-285-354
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
400 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RRH
- Type
- Ferrite ring
- Features
- Ferrite material K5B
- For suppression of conducted interference
- Can be wrapped around the cable before final assembly and are suitable for household appliances and consumer electronics- Dimension: Length
- 28.5 mm
- Weight
- 18.6 g
- Max. Cable diameter
- 6.35 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 28.5 mm
- Outer diameter
- 14.2 mm
- Diameter, inner
- 6.35 mm
- Weight
- 18.6 g
Technical features
- Max. Cable diameter
- 6.35 mm
- Curie temperature
- 140 °C
- Temperature coefficient
- 7 % / °C
- Loss factor
- 250
- Impedance at 25 MHz
- 164 Ohm
- Impedance at 100 MHz
- 255 Ohm
